Allen-Bradley 1756-EN2TK Original Industrial Spare ControlLogix Compatible

Product Overview

Allen-Bradley 1756-EN2TK Original Industrial Spare ControlLogix Compatible: System Stability & Industrial Spare Maintenance Value

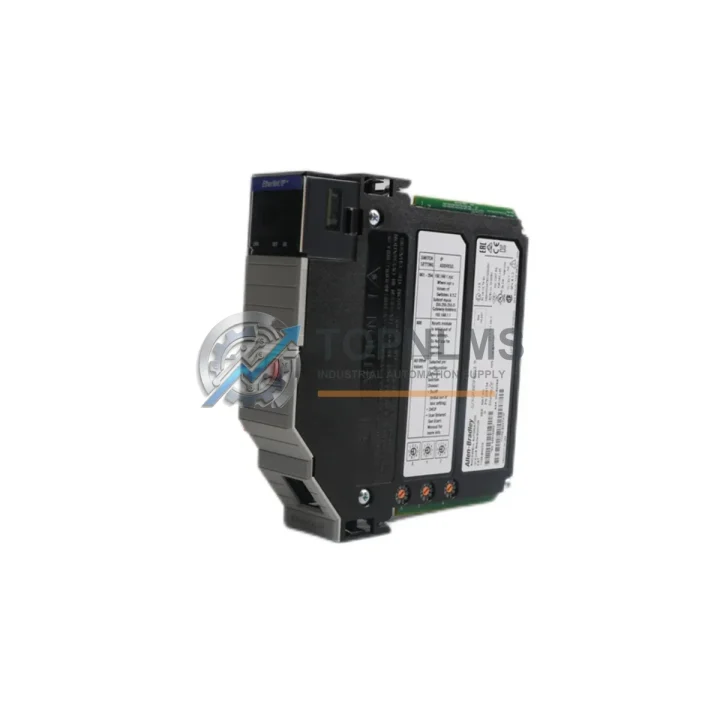

The Allen-Bradley 1756-EN2TK is an original ControlLogix EtherNet/IP Bridge Module engineered for mission-critical industrial automation environments. Designed to integrate seamlessly into the 1756 ControlLogix chassis backplane, this module provides dual-port EtherNet/IP connectivity with Device Level Ring (DLR) topology support — enabling high-availability network architectures that minimize single-point-of-failure risk across your control system. For maintenance engineers managing aging ControlLogix installations, the 1756-EN2TK represents a direct, drop-in replacement that preserves existing network configurations, IP addressing schemes, and ladder logic without requiring system re-engineering.

In facilities where production continuity is non-negotiable, stocking a verified original 1756-EN2TK is a foundational element of any responsible spare parts strategy. Unplanned downtime caused by a failed EtherNet/IP bridge can cascade across an entire production line — halting I/O communication, disrupting HMI visibility, and triggering safety shutdowns. Having a tested, ready-to-deploy replacement on the shelf reduces mean time to repair (MTTR) from days to minutes.

Critical Technical Specs Table

Preventive Maintenance Strategy

A structured preventive maintenance program for ControlLogix systems extends well beyond replacing a single module. When scheduling a planned outage to inspect or replace the 1756-EN2TK, experienced maintenance teams use the opportunity to audit the entire control cabinet for latent failure risks. Begin with the 1756-PA75 or 1756-PB75 power supply — a degraded power supply is one of the most common root causes of intermittent module faults and unexplained communication drops. Verify output voltage stability under load before reinstalling the bridge module.

Next, inspect the 1756-L74 or 1756-L75 ControlLogix CPU for firmware currency and battery health. The 1756-BA2 lithium battery should be replaced on a scheduled cycle — typically every two to three years — to protect program memory during power loss events. While the chassis is open, check each 1756-IB16 digital input module and 1756-OB16E digital output module for signs of terminal corrosion, loose wiring, or blown fuses, as these are high-cycle components in most discrete manufacturing environments.

EtherNet/IP network integrity depends not only on the bridge module itself but also on the physical layer. Inspect all Cat6 patch cables and RJ-45 connectors at the module ports and managed switch connections — cable degradation is frequently overlooked during module-focused maintenance. If your facility uses a Stratix 5700 or Stratix 8000 managed Ethernet switch, verify DLR ring supervisor settings and port configurations to ensure the replacement 1756-EN2TK is recognized correctly upon insertion.

For systems with analog process signals, simultaneously verify the calibration status of any 1756-IF16 analog input modules in the same chassis. Signal drift in analog modules often goes undetected until a process excursion occurs. If your ControlLogix rack includes 1756-DNB DeviceNet Bridge modules or 1756-DHRIO Data Highway Plus/Remote I/O modules for legacy device integration, inspect their status indicators and connection counts during the same maintenance window — these older communication modules are increasingly difficult to source and benefit from proactive condition monitoring.

Finally, document the replacement event in your CMMS with the module serial number, firmware version, and network configuration parameters. This record becomes invaluable during future troubleshooting and supports warranty claim processing if required.

Strategic Replacement Solutions

The 1756-EN2TK supersedes earlier ControlLogix EtherNet/IP bridge variants including the 1756-ENBT and 1756-EN2T, offering improved throughput, DLR ring topology support, and enhanced diagnostic capabilities within the same chassis slot footprint. For facilities still operating systems built around the 1756-ENBT, migrating to the 1756-EN2TK is a direct, non-disruptive upgrade path — the module uses the same RSLogix 5000 / Studio 5000 configuration interface, and existing EDS files and I/O tree structures are preserved.

In multi-chassis architectures where a 1756-EN2TK serves as the bridge between a local chassis and a remote I/O rack, replacing a failed unit with a pre-configured spare eliminates the need for on-site programming resources during an emergency. Our pre-shipment testing protocol verifies port link status, backplane communication, and firmware integrity before dispatch, ensuring the replacement module is production-ready upon arrival.

For older facilities running 1756-series hardware beyond its published product lifecycle, the 1756-EN2TK remains available as an original spare — allowing engineers to extend system service life without committing to a full platform migration. This approach is particularly valuable in industries with long validation cycles, such as pharmaceuticals, food and beverage, and utilities, where re-qualification of a new control platform represents a significant cost and schedule burden.

Support FAQ

Q1: Is the 1756-EN2TK compatible with both older 1756-L6x and newer 1756-L8x ControlLogix CPUs?
Yes. The 1756-EN2TK is compatible across the full ControlLogix 1756 chassis platform, including L6x, L7x, and L8x generation CPUs. No hardware modifications are required; firmware updates via ControlFLASH may be recommended to align with the host CPU firmware revision.

Q2: What pre-shipment testing is performed on the 1756-EN2TK?
Each unit undergoes functional verification including backplane communication check, dual-port Ethernet link test, and firmware version confirmation prior to packaging. A test report is available upon request. All units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: How should I manage 1756-EN2TK inventory for a multi-site facility?
For facilities operating three or more ControlLogix chassis, we recommend maintaining a minimum of one 1756-EN2TK per site as a cold standby spare. For high-criticality lines with no redundant network path, a hot standby configuration using a second chassis slot is advisable. Bulk procurement pricing is available for multi-unit orders.

Q4: Can the 1756-EN2TK replace a 1756-ENBT without reconfiguring the Studio 5000 project?
In most cases, yes — the 1756-EN2TK uses the same EDS profile structure and can be substituted in the I/O tree with a module type change and IP address reassignment. However, DLR-specific configuration parameters will need to be set if ring topology is being introduced. We recommend testing in a non-production environment or during a planned maintenance window before live deployment.
