Allen-Bradley 1756-CNBR/D Original Industrial Spare ControlLogix

Product Overview

Allen-Bradley 1756-CNBR/D Original Industrial Spare ControlLogix: Sustaining System Stability in Critical Automation Environments

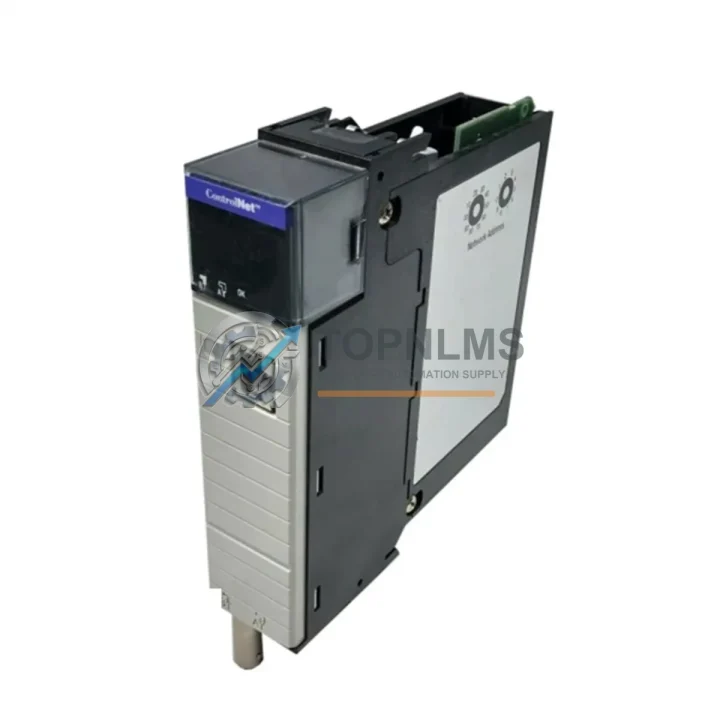

The Allen-Bradley 1756-CNBR/D is a ControlNet Bridge Module designed for the ControlLogix platform, enabling seamless communication between ControlLogix chassis and ControlNet networks. In industrial facilities where production continuity is non-negotiable, maintaining a verified original spare of the 1756-CNBR/D is a foundational element of any responsible maintenance strategy. Whether you are managing a continuous process plant, a discrete manufacturing line, or a legacy automation system that has been in service for over a decade, this module represents a critical node in your control architecture.

ControlNet remains one of the most widely deployed deterministic industrial networks in heavy industry, automotive, oil and gas, and food and beverage sectors. The 1756-CNBR/D bridges the ControlLogix backplane to the ControlNet trunk, ensuring scheduled and unscheduled data transfers are maintained with the timing precision that safety-critical and production-critical applications demand. When this module fails — whether due to firmware corruption, physical damage, or end-of-life degradation — the entire ControlNet segment it serves can go offline, triggering unplanned downtime that cascades across dependent processes.

Sourcing a pre-tested, original 1756-CNBR/D from a reliable MRO supplier eliminates the lead-time risk associated with OEM procurement channels, which can extend to weeks or months for legacy ControlLogix components. Every unit dispatched from our inventory undergoes functional verification prior to shipment, and is covered by a 12-month warranty against manufacturing defects and operational failure.

Critical Technical Specs

Preventive Maintenance Strategy

A ControlNet segment anchored by the 1756-CNBR/D does not operate in isolation. During scheduled shutdowns or emergency corrective maintenance, experienced maintenance engineers know that replacing a bridge module without inspecting the surrounding infrastructure is a missed opportunity — and a risk. The following maintenance approach is recommended for any facility running ControlLogix-based ControlNet architectures.

Chassis and Power Infrastructure: Begin every inspection at the chassis level. The 1756-PA75 or 1756-PB75 power supply modules that feed the ControlLogix chassis should be checked for output voltage stability, capacitor aging, and thermal performance. A degraded power supply can cause intermittent module resets that are frequently misdiagnosed as bridge module failures. If the chassis itself — such as a 1756-A10 or 1756-A17 — shows signs of backplane connector wear or slot damage, replacement of the chassis should be planned in the same maintenance window as the 1756-CNBR/D.

Controller and Redundancy Modules: The 1756-L73 or 1756-L74 ControlLogix controllers that manage the ControlNet schedule should be verified for firmware currency and memory health. In redundant controller configurations, the 1756-RM2 redundancy module should be inspected alongside the bridge module, as ControlNet bridge faults can trigger unnecessary redundancy switchovers if the redundancy module is not correctly configured.

I/O Modules on the ControlNet Segment: Remote I/O racks connected via ControlNet — typically housing 1756-IB16 digital input modules, 1756-OB16E digital output modules, or 1756-IF8 analog input modules — should be polled for diagnostic faults during the same maintenance cycle. A bridge module replacement that restores ControlNet communication will immediately expose any pre-existing I/O faults that were masked during the outage.

ControlNet Media and Tap Infrastructure: The physical ControlNet trunk cable, BNC taps, and terminators are frequently overlooked during module-level maintenance. Corroded BNC connectors, damaged coaxial cable segments, or missing terminators can cause network instability that persists even after a new 1756-CNBR/D is installed. Inspect all tap connections and verify trunk impedance with a cable tester before commissioning the replacement module.

Communication and Gateway Modules: If the ControlNet segment interfaces with EtherNet/IP or DeviceNet networks, the 1756-EN2T EtherNet/IP communication module and any 1756-DNB DeviceNet scanner modules in the same chassis should be checked for connection count, error logs, and firmware version compatibility with the replacement bridge module’s firmware revision.

Maintaining a consolidated spare parts inventory that includes the 1756-CNBR/D alongside these associated components significantly reduces mean time to repair (MTTR) and supports a proactive rather than reactive maintenance posture.

Strategic Replacement Solutions

The 1756-CNBR/D has been in service across global industrial installations for over two decades. Many facilities running this module are operating systems that predate current Rockwell Automation software ecosystems, and the prospect of a full migration to EtherNet/IP-based architectures is neither immediately feasible nor economically justified for every plant. In these environments, the strategic value of a verified original spare cannot be overstated.

Unlike counterfeit or refurbished modules of uncertain provenance, an original 1756-CNBR/D maintains full compatibility with the existing ControlNet schedule configured in RSNetWorx for ControlNet. There is no requirement to re-engineer the network schedule, remap node addresses, or reconfigure scheduled connection parameters — the replacement module assumes the identity and role of its predecessor with minimal commissioning effort. This is particularly valuable in facilities where the original system integrator is no longer available and institutional knowledge of the network configuration is limited.

For plants managing the transition from ControlNet to EtherNet/IP over a multi-year capital plan, maintaining operational ControlNet infrastructure with original spare modules is the lowest-risk bridge strategy. It preserves production output during the transition period, avoids the capital expenditure of an accelerated migration, and keeps the existing control system within its validated operational envelope — a critical consideration in regulated industries such as pharmaceuticals, food processing, and utilities.

Each 1756-CNBR/D unit is dispatched with a functional test report, original packaging where available, and full 12-month warranty documentation. Expedited shipping options are available for emergency breakdown situations, with same-day dispatch available for in-stock units.

Support FAQ

Q1: Is this a genuine original Allen-Bradley 1756-CNBR/D, or a compatible replacement?
This is an original Allen-Bradley (Rockwell Automation) 1756-CNBR/D module. We do not supply compatible substitutes or third-party replicas for this part number. All units are sourced from authorized distribution channels or verified industrial surplus with full traceability documentation available upon request.

Q2: What does the 12-month warranty cover, and how is it claimed?
The 12-month warranty covers functional failure under normal operating conditions, including backplane communication faults, ControlNet port failure, and firmware integrity issues. Warranty claims are initiated by contacting [email protected] with the order reference and a description of the fault. We arrange return logistics and dispatch a replacement unit upon verification.

Q3: How is the module tested before shipment?
Each unit undergoes a pre-shipment functional test that verifies backplane communication, ControlNet port integrity, and LED diagnostic status. Modules that do not pass functional verification are not dispatched. A test confirmation is included with the shipment documentation.

Q4: Can this module be used as a direct drop-in replacement without reconfiguring the ControlNet schedule?
Yes, provided the replacement module is loaded with the same firmware revision as the original. The ControlNet schedule is stored in the controller project file and in RSNetWorx for ControlNet — it is not stored on the bridge module itself. After physical installation, a firmware update via ControlFLASH may be required if the replacement unit carries a different firmware revision. No schedule reconfiguration is necessary in standard replacement scenarios.
