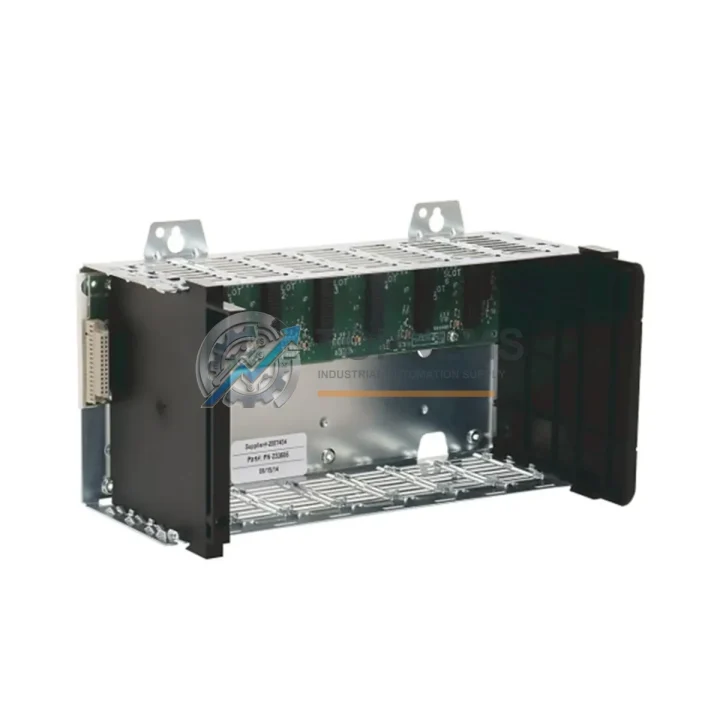

Allen-Bradley 1756-A7 Original ControlLogix 7-Slot Chassis

Product Overview

Allen-Bradley 1756-A7 Original ControlLogix 7-Slot Chassis: System Stability and Industrial Spare Maintenance Value

The Allen-Bradley 1756-A7 is a 7-slot backplane chassis designed for the ControlLogix platform — one of the most widely deployed programmable logic controller architectures in global industrial automation. As a critical structural and electrical backbone of any ControlLogix control system, the 1756-A7 chassis houses and interconnects the full range of ControlLogix modules, including processors, I/O modules, communication adapters, and power supplies. Maintaining a verified original spare of the 1756-A7 in your facility inventory is one of the most effective strategies for reducing unplanned downtime and protecting long-term system stability.

In maintenance-intensive environments — including automotive assembly lines, food and beverage processing, water treatment facilities, oil and gas platforms, and discrete manufacturing plants — the ControlLogix chassis is the foundation upon which the entire control architecture depends. A failed or degraded chassis can render an entire control cabinet inoperable, halting production and triggering costly emergency procurement. Stocking the 1756-A7 as a pre-qualified replacement unit eliminates this risk and enables rapid field swap-out with zero reconfiguration of installed modules.

Critical Technical Specs Table

Preventive Maintenance Strategy

A disciplined preventive maintenance program for any ControlLogix system extends well beyond the chassis itself. When scheduling a chassis inspection or replacement of the 1756-A7, experienced maintenance engineers routinely evaluate the condition of all co-installed components to avoid repeat interventions. The 1756-PA72 or 1756-PB72 power supply module, which mounts directly into the chassis and provides regulated DC power to all backplane slots, should be inspected for output voltage stability and fan operation at the same time. A degraded power supply is one of the leading causes of intermittent module faults and unexplained processor resets in ControlLogix systems.

The installed processor — typically a 1756-L71, 1756-L73, or 1756-L75 ControlLogix CPU — should be verified for firmware currency and battery condition during any chassis-level maintenance event. The 1756-BA1 lithium battery, which retains program memory during power loss, has a defined service life and should be replaced proactively rather than reactively. Alongside the processor, any 1756-EN2T or 1756-EN3TR EtherNet/IP communication modules installed in the chassis should be checked for port integrity and network connectivity, as communication faults at the backplane level can cascade into system-wide I/O loss.

Digital and analog I/O modules — such as the 1756-IB16 16-point DC input module, the 1756-OB16E electronically fused output module, or the 1756-IF8 8-channel analog input module — should be seated firmly and inspected for terminal corrosion or wiring fatigue. Loose field wiring at the I/O terminal blocks is a common source of intermittent faults that are frequently misdiagnosed as chassis or processor failures. If the system includes a 1756-DNB DeviceNet bridge module or a 1756-CN2 ControlNet bridge, these communication adapters should also be included in the inspection cycle, as their backplane connectors are subject to mechanical wear over years of vibration exposure.

For facilities operating redundant ControlLogix architectures, the 1756-RM2 redundancy module pair should be verified for synchronization status and firmware compatibility whenever a chassis replacement is planned. Redundancy module mismatches after a chassis swap are a known source of switchover failures that can defeat the purpose of the redundant architecture entirely.

Strategic Replacement Solutions

The 1756-A7 is a direct replacement for any existing 7-slot ControlLogix chassis installation. Because the ControlLogix backplane is a passive electrical bus — it contains no active logic or firmware — replacing the chassis requires no software changes, no I/O mapping updates, and no PLC program modifications. Modules are simply transferred from the old chassis to the new one, slot-for-slot, and the system resumes operation. This makes the 1756-A7 one of the most straightforward spare parts to qualify and stock in a ControlLogix environment.

For facilities managing aging ControlLogix systems originally built around the 1756-A7, this chassis remains fully compatible with both legacy Series A/B modules and current-generation Series C hardware. This cross-generation compatibility is a significant advantage in brownfield environments where a full system upgrade is not economically justified but individual module replacements are ongoing. Stocking the 1756-A7 allows maintenance teams to extend the operational life of existing control cabinets by years, deferring capital expenditure while maintaining full system functionality.

TOPNLMS supplies the 1756-A7 from verified inventory, with each unit inspected and tested before shipment. Orders are processed promptly, with international logistics support available for facilities in Asia, the Middle East, Southeast Asia, and beyond. A 12-month warranty is provided on all units, covering defects in materials and workmanship under normal operating conditions. Emergency procurement inquiries are welcomed — contact our team directly for lead time confirmation and volume pricing.

Support FAQ

Q1: Is the 1756-A7 compatible with all ControlLogix processors and modules?
Yes. The 1756-A7 is compatible with the full range of ControlLogix processors (1756-L6x, L7x, L8x series), power supplies, I/O modules, and communication adapters. It is a passive backplane chassis with no firmware dependencies, ensuring universal compatibility across ControlLogix generations.

Q2: What testing is performed before shipment?
Every 1756-A7 unit supplied by TOPNLMS undergoes pre-shipment inspection covering physical integrity, backplane connector condition, and slot alignment. Units showing any signs of damage, corrosion, or mechanical deformation are rejected. A 12-month warranty is included with every shipment.

Q3: How many spare chassis should a facility stock?
For facilities operating three or more ControlLogix racks, maintaining at least one spare 1756-A7 chassis on-site is strongly recommended. High-criticality applications — continuous process lines, safety-instrumented systems, or redundant architectures — should consider a minimum of two spare chassis to support both planned maintenance and emergency replacement scenarios.

Q4: Can the 1756-A7 replace a chassis from a different slot count (e.g., 1756-A4 or 1756-A10)?
No — ControlLogix chassis are not interchangeable across slot counts. The 1756-A7 is a 7-slot chassis and can only replace another 7-slot chassis. If your existing installation uses a 1756-A4 (4-slot), 1756-A10 (10-slot), or 1756-A13 (13-slot) chassis, the corresponding model must be sourced. TOPNLMS stocks multiple ControlLogix chassis variants — contact us to confirm availability for your specific configuration.
