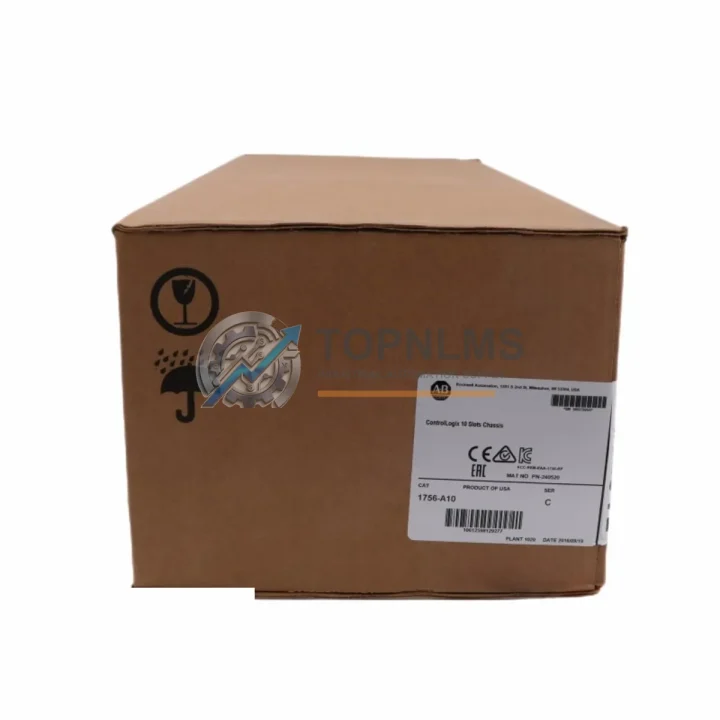

Allen-Bradley 1756-A10 Upgrade Solution for ControlLogix

Product Overview

Allen-Bradley 1756-A10 Upgrade Solution for ControlLogix: Smooth Transition & Legacy System Compatibility

The Allen-Bradley 1756-A10 is a 10-slot backplane chassis designed for the ControlLogix 1756 platform — one of the most widely deployed programmable automation controller (PAC) architectures in discrete manufacturing, process control, and critical infrastructure worldwide. As facilities modernize aging control systems or replace discontinued hardware, the 1756-A10 chassis remains a cornerstone component for engineers seeking a direct, non-disruptive upgrade path that preserves existing I/O wiring, program logic, and network topology.

Whether you are migrating from an older PLC-5 or SLC 500 system, replacing a failed chassis in a running production line, or expanding an existing ControlLogix rack to accommodate additional I/O modules, the 1756-A10 provides the physical and electrical foundation for a seamless transition. Its 10-slot configuration accommodates a broad range of 1756-series modules — including the 1756-L85E controller, 1756-EN2T EtherNet/IP communication module, 1756-IB16 digital input module, 1756-OB16E digital output module, and 1756-IF8 analog input module — without requiring any modification to existing field wiring or control cabinet layout.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ControlLogix chassis migration involves more than swapping the backplane. During a typical 1756-A10 retrofit, engineers must account for the full system architecture to avoid unplanned downtime and commissioning delays.

The power supply is the first consideration: the 1756-PA75 (120/240 VAC input) or 1756-PB75 (24 VDC input) mounts directly to the left side of the 1756-A10 chassis and must be sized to support the total backplane current draw of all installed modules. In systems previously running on a 1756-A7 (7-slot) chassis, migrating to the 10-slot 1756-A10 provides three additional module positions — ideal for adding a redundant 1756-EN2T EtherNet/IP communication module or expanding analog I/O capacity with a 1756-IF16 16-channel analog input module without relocating the control cabinet.

For facilities transitioning from legacy PLC-5 systems communicating over Data Highway Plus (DH+), the 1756-DHRIO module bridges the communication gap, allowing the new ControlLogix controller to exchange data with existing remote I/O drops and operator panels during the phased migration period. This eliminates the need to immediately replace all field devices and HMI terminals, significantly reducing project cost and risk.

When the existing control cabinet was originally designed around a smaller chassis footprint, the 1756-A10’s standard form factor typically fits within the same panel space previously occupied by a 1756-A7 or 1756-A13, with only minor DIN rail or mounting plate adjustments. Field wiring connected to 1756-IB16 digital input modules and 1756-OB16E digital output modules remains fully intact — terminal block assignments do not change when the chassis is replaced, provided the same module slot assignments are maintained in the RSLogix 5000 / Studio 5000 project file.

For sites requiring serial communication to legacy drives or third-party devices, the 1756-MVI (or equivalent ControlLogix serial communication module) can be installed in any available slot of the 1756-A10 chassis, supporting Modbus RTU, DF1, and other protocols without gateway hardware. Combined with a 1756-L85E controller running the existing ladder logic program — which can be imported directly from a previous ControlLogix project with minimal modification — the migration timeline from chassis swap to full production restart is typically measured in hours, not days.

Retrofit Guidance FAQ

Q: Can I reuse my existing 1756-series I/O modules in the new 1756-A10 chassis?
A: Yes. All 1756-series modules are hot-swappable and chassis-agnostic within the ControlLogix platform. Modules such as the 1756-IB16, 1756-OB16E, 1756-IF8, and 1756-OF8 can be moved directly from an old chassis to the new 1756-A10 without any hardware modification. Slot assignments should be preserved in the Studio 5000 project to avoid I/O mapping errors.

Q: Do I need to re-download the PLC program after replacing the chassis?
A: If the 1756-Lxx controller module is removed and re-inserted into the new chassis, the program stored in the controller’s non-volatile memory (CompactFlash or SD card, depending on revision) is retained. A full program download is only required if the controller itself is also being replaced.

Q: Is the 1756-A10 compatible with ControlNet and DeviceNet in addition to EtherNet/IP?
A: Yes. The 1756-A10 chassis supports any 1756-series communication module. Installing a 1756-CNB (ControlNet) or 1756-DNB (DeviceNet) module in an available slot provides the corresponding network interface without any chassis-level restriction.

Q: How much physical space does the 1756-A10 require compared to a 7-slot chassis?
A: The 1756-A10 is wider than the 1756-A7 by approximately 3 module widths (roughly 100–120 mm depending on module type). Panel designers should verify horizontal clearance before ordering. TOPNLMS can provide dimensional drawings upon request.

Q: What is the lead time for the 1756-A10?
A: Units are in stock at our Xiamen warehouse and ship within 1–3 business days of order confirmation. Express international shipping is available to minimize production downtime.

Warranty Assurance

Every 1756-A10 chassis supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a multi-point inspection including visual examination, backplane connector integrity check, and slot alignment verification. Units are packed in anti-static, shock-resistant packaging to prevent transit damage.

In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a full refund — whichever the customer prefers — with no return shipping cost to the buyer. Our technical support team is available via email and phone to assist with installation questions, compatibility verification, and commissioning guidance throughout the warranty period.

For urgent production-line replacements, we offer priority order processing and same-day dispatch for in-stock items confirmed before 14:00 CST. Customers requiring factory test reports, certificate of conformance, or customs documentation for cross-border shipments should indicate this requirement at the time of order.
