Allen-Bradley 1771-A3B/B Original Industrial Spare PLC-5 Compatible: Sustaining System Stability in Critical Automation Environments

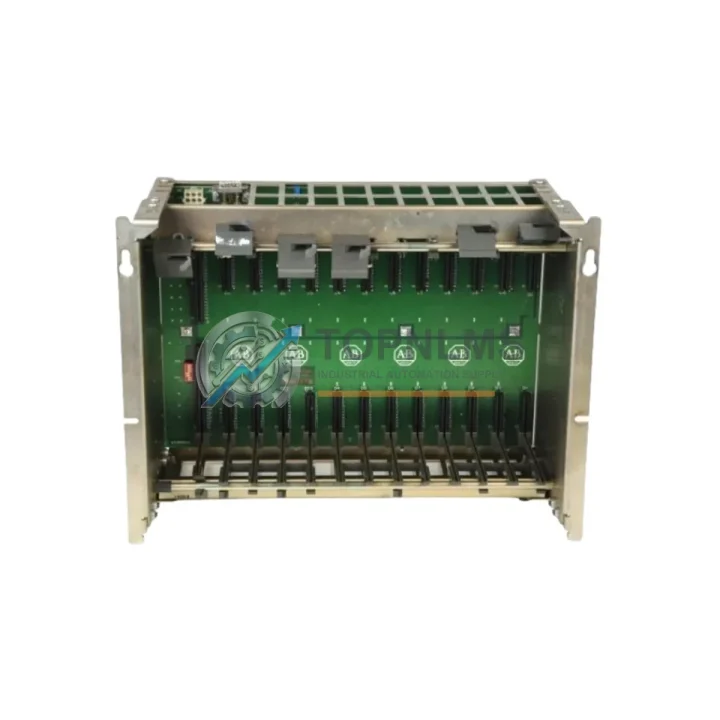

The Allen-Bradley 1771-A3B/B is a 12-slot I/O chassis designed for the PLC-5 series control platform — one of the most widely deployed programmable logic controller architectures in global industrial automation. As manufacturing facilities, utilities, and process plants continue to operate legacy 1771-series control systems well beyond their original design life, maintaining a reliable inventory of original spare parts like the 1771-A3B/B is not optional — it is a core pillar of operational continuity strategy.

This chassis serves as the physical backbone of the PLC-5 I/O subsystem, housing up to 12 I/O modules in a single rack. Its robust backplane design ensures stable communication between the processor and field devices, making it indispensable in applications ranging from discrete manufacturing lines to continuous process control. When a chassis fails — whether due to backplane degradation, connector wear, or power distribution faults — the entire I/O rack goes offline, triggering unplanned downtime that can cost thousands of dollars per hour. Stocking a verified original 1771-A3B/B eliminates that risk.

Critical Technical Specs

Preventive Maintenance Strategy

A chassis replacement is rarely an isolated event. When maintenance teams open a control cabinet to service or replace a 1771-A3B/B, it represents the optimal window to inspect and proactively address adjacent components that share the same operational stress cycles. Neglecting these components after a chassis swap is a common cause of secondary failures within weeks of the initial repair.

Begin with the power supply unit — the 1771-P4 or 1771-P4S that feeds the chassis backplane. Power supply capacitors degrade over time, and a marginal PSU will stress a new chassis immediately. Inspect output voltage rails under load and replace if ripple exceeds specification. Alongside the PSU, examine all 1771-series I/O modules seated in the rack: digital input modules such as the 1771-IB and 1771-OB output modules should be checked for terminal corrosion, blown fuses, and LED status anomalies. Analog modules like the 1771-IF and 1771-OF warrant calibration verification after any chassis disturbance.

The 1771-ASB remote I/O adapter, if present, should be inspected for communication integrity — a degraded adapter can cause intermittent I/O faults that are difficult to diagnose without a known-good chassis baseline. Similarly, the 1771-WB wiring arm assemblies connecting field wiring to I/O modules should be examined for terminal fatigue and insulation breakdown, particularly in high-vibration or high-temperature environments.

Do not overlook the 1785-series PLC-5 processor module itself. If the chassis is being replaced due to backplane faults, the processor’s battery (1770-XYC or equivalent) should be tested and replaced if voltage is below threshold — a dead battery means lost program memory on the next power cycle. Pair this with a full program backup via RSLogix 5 before any hardware swap.

For facilities running extended 1771 I/O networks, inspect 1771-SN scanner modules and associated remote I/O cables for impedance and continuity. Termination resistors at cable ends are a frequent failure point. Finally, review the terminal blocks and DIN rail assemblies within the control cabinet — loose or corroded terminals are a leading cause of intermittent faults that get misdiagnosed as module or chassis failures.

A structured preventive maintenance checklist covering all these components — executed during the chassis replacement window — can extend the next maintenance interval by 12 to 24 months and significantly reduce unplanned downtime risk.

Strategic Replacement Solutions

The 1771-A3B/B is a direct drop-in replacement for earlier 1771 chassis variants including the 1771-A3B (Series A) and the 1771-A2B (8-slot). The /B revision designation indicates an updated backplane design with improved noise immunity — making it the preferred replacement even in systems originally equipped with earlier revisions. No firmware changes, no rewiring, no re-commissioning of field devices: the replacement is mechanically and electrically transparent to the control system.

For facilities managing end-of-life PLC-5 systems, the strategic value of stocking original 1771-A3B/B chassis units cannot be overstated. Rockwell Automation has discontinued active manufacturing of 1771-series hardware, meaning the supply of genuine original parts is finite and diminishing. Procurement teams that secure verified original inventory now avoid the premium pricing and extended lead times that accompany emergency sourcing during unplanned outages.

For plants considering a phased migration to ControlLogix or CompactLogix platforms, the 1771-A3B/B supports a bridge strategy: maintain PLC-5 system stability with original spares while migration engineering proceeds in parallel, avoiding the operational risk of a forced cutover under time pressure. This approach protects production continuity and allows migration to proceed on a planned schedule rather than a crisis timeline.
