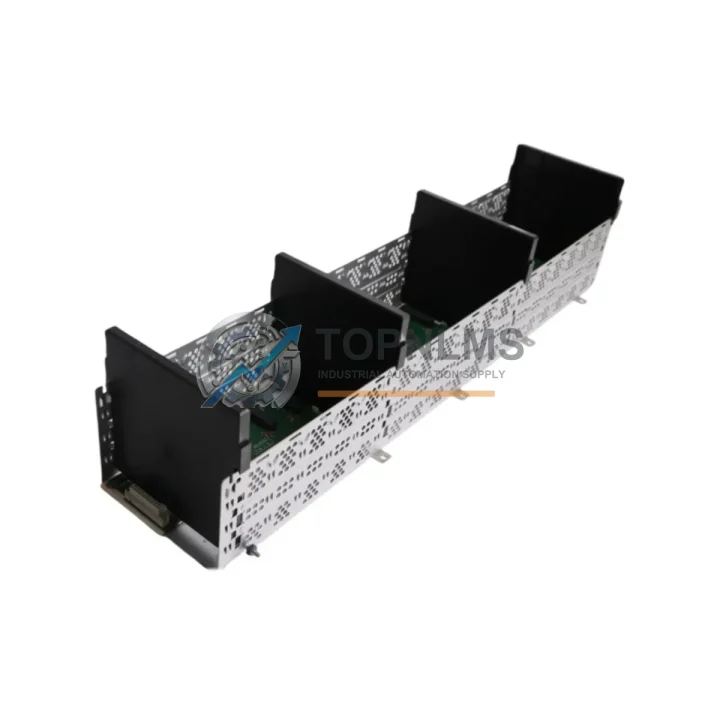

Allen-Bradley 1756-A17 Ruggedized 17-Slot Backplane for Harsh Environments

Product Overview

Allen-Bradley 1756-A17 Ruggedized 17-Slot Backplane for Harsh Environments

The Allen-Bradley 1756-A17 is a 17-slot ControlLogix backplane chassis engineered for continuous, fault-tolerant operation in the most demanding industrial environments. Designed as the structural and electrical backbone of the Rockwell Automation ControlLogix 1756 platform, this chassis provides the high-speed backplane communication bus that interconnects processor modules, I/O modules, communication modules, and power supply units within a single rack assembly. Whether deployed in a petrochemical control room, a steel mill’s drive control cabinet, or a water treatment SCADA panel, the 1756-A17 delivers the structural rigidity and electrical integrity that mission-critical automation demands.

Industrial facilities operating in high-temperature zones, high-humidity coastal plants, dusty mining environments, or areas subject to continuous mechanical vibration require backplane infrastructure that will not degrade under sustained stress. The 1756-A17 chassis is built to withstand operating temperatures from 0°C to 60°C, relative humidity up to 95% non-condensing, and vibration levels consistent with IEC 68-2-6 test profiles. Its robust PCB construction and gold-plated backplane connectors resist oxidation and contact resistance creep — a critical factor in environments where unplanned downtime carries six-figure hourly costs.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1756-A17 chassis is the integration hub for a complete ControlLogix control architecture. In a typical heavy-industry control cabinet, the chassis houses the 1756-L73 or 1756-L83E processor module as the system controller, alongside 1756-EN2T or 1756-EN3TR EtherNet/IP communication modules that connect the PLC to plant-wide SCADA and MES networks. For process-intensive applications requiring analog signal conditioning, the 1756-IF16 16-channel analog input module and 1756-OF8 analog output module slot directly into the 1756-A17 backplane, enabling precise closed-loop control of temperature, pressure, and flow variables.

In facilities where functional safety is mandated — such as SIL 2 or SIL 3 certified safety instrumented systems — the chassis can accommodate the 1756-L7SP GuardLogix safety processor alongside standard ControlLogix I/O modules, creating a unified standard and safety control platform within a single rack. The 1756-IB32 32-point digital input module and 1756-OB32 digital output module provide high-density discrete I/O for motor control centers, valve actuators, and field instrument interfaces. For installations requiring PROFIBUS DP or DeviceNet connectivity to legacy field devices, the 1756-DNB DeviceNet scanner module and 1756-DHRIO Data Highway Plus/Remote I/O module integrate seamlessly into the same backplane.

Power integrity is maintained by pairing the 1756-A17 with a 1756-PA75R redundant power supply module, which provides automatic failover in the event of a primary supply fault — a configuration widely adopted in continuous process industries where a control system restart is operationally unacceptable. The chassis’s grounded frame and shielded backplane architecture provide inherent protection against electromagnetic interference generated by variable frequency drives, high-current motor starters, and arc welding equipment operating in the same facility.

Application in Critical Infrastructure

In upstream oil and gas operations, the 1756-A17 chassis is routinely deployed in wellhead control panels and pipeline SCADA RTU enclosures, where it must sustain reliable backplane communication across temperature extremes and in the presence of H₂S-laden atmospheres. The chassis’s sealed connector design and corrosion-resistant materials make it suitable for Class I, Division 2 (C1D2) installations when housed in an appropriately rated enclosure.

In coal and metal mining operations, the chassis is installed in explosion-proof or purged-and-pressurized control cabinets mounted on continuous miners, longwall shearers, and conveyor drive stations. The mechanical robustness of the 1756-A17 backplane connectors ensures that vibration-induced intermittent contact faults — a leading cause of spurious trips in mobile mining equipment — are effectively eliminated.

Power generation facilities, including thermal, hydro, and combined-cycle gas turbine plants, rely on ControlLogix 1756 systems for turbine governor control, boiler management, and balance-of-plant automation. The 1756-A17’s 17-slot capacity provides sufficient module density to consolidate multiple control functions — including redundant communication paths via dual 1756-EN2TR EtherNet/IP modules — within a single chassis, reducing cabinet footprint and simplifying cable management in congested switchgear rooms.

Municipal and industrial water treatment plants deploy the 1756-A17 in pump station control panels and chemical dosing systems, where the chassis must operate continuously for years without maintenance intervention. Its compatibility with the full ControlLogix module ecosystem ensures that future capacity expansions or protocol upgrades can be accommodated by adding modules to existing slots rather than replacing the entire rack infrastructure.

In metallurgical and steel production environments, the chassis is integrated into rolling mill drive control systems, ladle furnace automation panels, and continuous casting machine controllers. The combination of high-speed backplane throughput and broad I/O module compatibility makes the 1756-A17 the preferred chassis platform for coordinating multi-axis motion control, high-speed data acquisition, and safety interlock functions within a single unified control architecture.

Security & Quality FAQ

Q1: What warranty coverage is provided with the 1756-A17?
Every 1756-A17 unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with priority turnaround, and replacement units are dispatched from our Xiamen warehouse to minimize your system downtime.

Q2: How is each unit tested before shipment?
All 1756-A17 chassis units undergo pre-shipment functional verification, including backplane continuity testing, slot connector integrity checks, and visual inspection against Allen-Bradley factory quality standards. Units sourced from authorized distribution channels are cross-referenced against Rockwell Automation’s product authenticity verification procedures before dispatch.

Q3: Is the 1756-A17 compatible with all ControlLogix 1756-series modules?
Yes. The 1756-A17 is fully compatible with the complete Allen-Bradley ControlLogix 1756 module family, including all current-generation 1756-L8x processors, 1756-EN2T/EN3TR communication modules, 1756-IF/OF analog I/O modules, 1756-IB/OB digital I/O modules, and 1756-PA/PB power supply units. It is backward-compatible with legacy 1756-L6x and 1756-L7x processors.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
TOPNLMS maintains dedicated safety stock of high-demand ControlLogix components, including the 1756-A17, to support customers with multi-year maintenance contracts and planned replacement programs. We provide advance procurement advisory services to help facilities engineers plan chassis replacements ahead of Rockwell Automation end-of-life announcements, ensuring uninterrupted spare parts availability for your installed base.
