Allen-Bradley 1747-PIC Original Industrial Spare SLC 500 Compatible

Product Overview

Allen-Bradley 1747-PIC Original Industrial Spare SLC 500 Compatible: System Stability & Industrial Spare Parts Maintenance Value

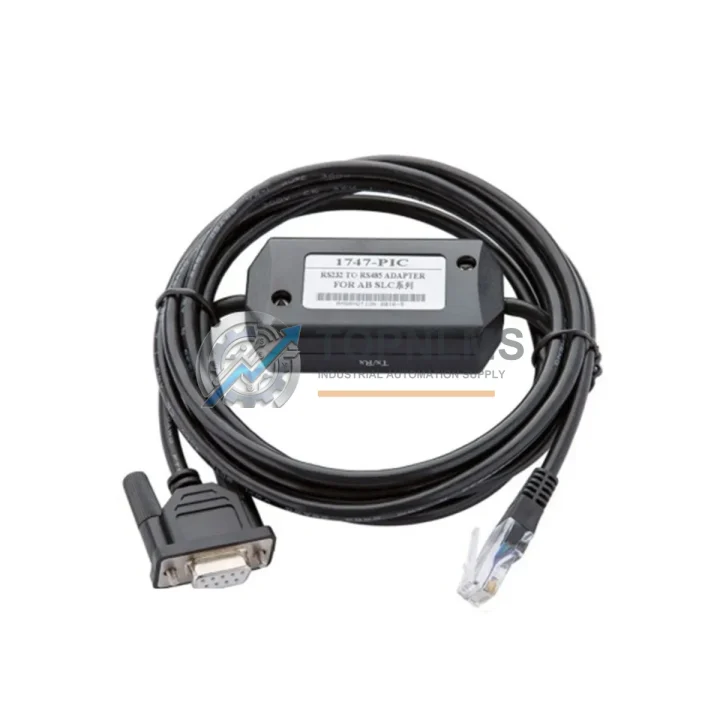

The Allen-Bradley 1747-PIC is a purpose-built RS-232 to DH-485 PC Interface Converter designed for seamless communication between a host PC and Rockwell Automation SLC 500 and MicroLogix programmable logic controller networks. As a genuine original spare part, the 1747-PIC plays a critical role in maintaining uninterrupted data exchange between engineering workstations running RSLogix 500 or RSLinx Classic software and the DH-485 network backbone of your control system. In aging automation infrastructure where DH-485 remains the primary fieldbus, the availability of a verified, tested 1747-PIC is the difference between a two-hour recovery and a multi-day production shutdown.

Industrial facilities operating SLC 5/01, SLC 5/02, SLC 5/03, SLC 5/04, and SLC 5/05 processors — as well as MicroLogix 1000, 1100, 1200, and 1500 controllers — depend on the 1747-PIC as the gateway for program uploads, downloads, online monitoring, and forced I/O operations during maintenance windows. Losing this interface module during a critical repair cycle can paralyze your maintenance team. Stocking a verified replacement unit is a low-cost insurance policy against high-consequence downtime.

Critical Technical Specs Table

Preventive Maintenance Strategy

A scheduled maintenance inspection of your SLC 500 or MicroLogix control cabinet should treat the 1747-PIC not as an isolated accessory but as an integral node in your communication architecture. During annual or semi-annual shutdowns, maintenance engineers should verify the physical condition of the 1747-PIC’s RS-232 cable and DB-9 connector, check the RJ-45 DH-485 port for corrosion or pin damage, and confirm that RSLinx Classic can establish a stable driver connection at the configured baud rate.

While the 1747-PIC is under inspection, it is best practice to simultaneously audit the health of adjacent components in the same control cabinet. The 1747-L553 SLC 5/05 processor and 1747-L543 SLC 5/04 processor are common partners to the 1747-PIC in mid-size automation cells; their battery modules (1747-BA) should be checked for voltage and replaced on a three-year cycle to prevent program loss. The 1746-P4 power supply module that energizes the SLC 500 chassis should be load-tested for output voltage stability, as a degraded power supply is a leading cause of intermittent communication faults that are often misdiagnosed as a converter failure.

I/O integrity is equally important during the same maintenance window. The 1746-IB16 digital input module and 1746-OB16 digital output module should be inspected for blown fuses, loose terminal wiring, and LED status anomalies. If your system includes analog loops, the 1746-NI4 analog input module should be calibrated against known reference signals. For facilities using DeviceNet or ControlNet alongside DH-485, the 1747-SDN DeviceNet scanner module should be verified for node health and scanner list integrity.

Communication cabling is a frequently overlooked failure point. The 1747-C13 DH-485 cable connecting the 1747-PIC to the SLC 500 chassis AIC port is subject to mechanical fatigue in high-vibration environments. Keeping a spare cable in your maintenance kit alongside the 1747-PIC ensures that a cable fault does not delay a time-critical program download during an emergency repair. Similarly, the 1761-CBL-PM02 MicroLogix programming cable should be stocked for MicroLogix-based lines where the 1747-PIC is used as the network bridge.

For facilities managing multiple SLC 500 drops on a single DH-485 network, the 1747-AIC Advanced Interface Converter used at remote chassis locations should be inspected in the same maintenance cycle as the 1747-PIC. A failed AIC at a remote drop will isolate that chassis from the network, and having a verified spare on the shelf — alongside your 1747-PIC stock — eliminates the risk of a single-point communication failure cascading into a full-line stoppage.

Strategic Replacement Solutions

The 1747-PIC has been in service across global manufacturing facilities for decades, and many plants continue to operate SLC 500 infrastructure well beyond its original design lifecycle. Rockwell Automation has discontinued active production of the 1747-PIC, making verified original spare units increasingly scarce through standard distribution channels. Sourcing a tested, genuine 1747-PIC from a specialist industrial spare parts supplier is the most reliable strategy for maintaining your existing DH-485 communication architecture without undertaking a costly controller migration.

For facilities evaluating a phased modernization path, the 1747-PIC can be retained as the primary programming interface while newer communication modules — such as the 1761-NET-ENI Ethernet-to-serial bridge — are introduced in parallel to enable remote monitoring via EtherNet/IP. This hybrid approach allows maintenance teams to preserve RSLogix 500 workflows and existing ladder logic programs while gradually extending network visibility to SCADA and MES systems. The 1747-PIC remains the most cost-effective tool for local program maintenance, fault diagnostics, and forced I/O operations during this transition period.

When replacing a failed 1747-PIC in the field, the replacement procedure is straightforward: disconnect the RS-232 cable from the host PC, remove the DH-485 network cable, substitute the new unit, reconnect both cables, and verify the RSLinx Classic driver at the same COM port and baud rate settings. No firmware update or node address reconfiguration is required if the replacement unit is pre-configured to match the original settings. TOPNLMS pre-tests every 1747-PIC unit for RS-232 handshaking, DH-485 token passing, and data throughput before shipment, ensuring that field replacement is a plug-and-verify operation rather than a troubleshooting exercise.

Facilities managing legacy SLC 500 lines in food and beverage, automotive, water treatment, and discrete manufacturing sectors consistently report that maintaining a minimum stock of one spare 1747-PIC per DH-485 network segment reduces mean time to repair (MTTR) for communication-related faults by over 60%. The procurement cost of a spare unit is negligible compared to the cost of a single unplanned production stoppage.

Support FAQ

Q1: Is the 1747-PIC compatible with both SLC 500 and MicroLogix controllers?
Yes. The 1747-PIC connects to any device with a DH-485 port, including all SLC 500 processors (5/01 through 5/05) and MicroLogix 1000, 1100, 1200, and 1500 controllers. It is also compatible with the 1747-AIC and 1747-AICX interface converters used at remote chassis locations on multi-drop DH-485 networks.

Q2: How is the 1747-PIC tested before shipment?
Every unit supplied by TOPNLMS undergoes a full functional test that includes RS-232 communication handshaking verification, DH-485 token-passing confirmation, and end-to-end data transfer validation using RSLinx Classic. Units that do not pass all test criteria are not shipped. A test report is available upon request for quality-critical procurement processes.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers all functional defects arising from manufacturing or component failure under normal operating conditions. It does not cover damage caused by incorrect installation, overvoltage, physical impact, or use outside the specified environmental parameters. Warranty claims are processed within 5 business days of receipt of the returned unit, with replacement shipment or full refund options available.

Q4: How should I plan my spare parts inventory for DH-485 networks?
