Allen-Bradley 1747-L532 SLC 5/03 CPU Upgrade Solution

Product Overview

Allen-Bradley 1747-L532 SLC 5/03 CPU Upgrade Solution: Seamless Transition from Legacy SLC 500 Systems

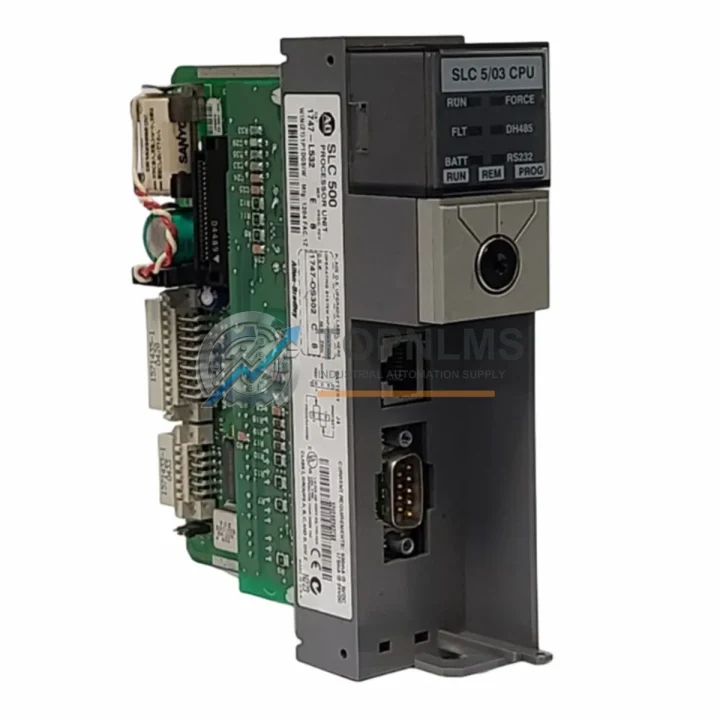

The Allen-Bradley 1747-L532 is a 16 KB user memory SLC 5/03 CPU module designed for the SLC 500 fixed and modular chassis platform. As Rockwell Automation has progressively phased out SLC 500 series components, many facilities running legacy SLC 5/01, SLC 5/02, or earlier SLC 5/03 variants face urgent decisions: repair aging hardware, source a direct replacement, or execute a controlled migration to a modern platform. TOPNLMS stocks the 1747-L532 as a verified replacement unit, enabling engineers to restore production continuity without committing to a full system redesign.

Whether your existing system runs on a 1746-A4, 1746-A7, 1746-A10, or 1746-A13 modular chassis, the 1747-L532 slots directly into the CPU slot without chassis modification. The module communicates via the native DH-485 network port and an RS-232 channel port, maintaining full compatibility with existing programming cables such as the 1747-CP3 and 1747-UIC USB-to-DH-485 adapter. If your facility uses a 1747-KE or 1747-KFC15 communication interface module for DH+ or ControlNet bridging, those upstream network connections remain unaffected by a CPU swap at the 1747-L532 level.

For sites migrating from a 1747-L511 (SLC 5/01) or 1747-L524 (SLC 5/02), the 1747-L532 represents a direct upward-compatible replacement. Ladder logic programs developed in RSLogix 500 for earlier SLC 5/0x CPUs can be uploaded to the 1747-L532 with minimal revision, as the instruction set is fully backward compatible. Engineers should verify that any STI (Selectable Timed Interrupt) or DII (Discrete Input Interrupt) routines are correctly mapped, and confirm that the expanded 16 KB memory does not require program restructuring. In most cases, a verified backup of the original program, a fresh download to the 1747-L532, and a controlled I/O force test are sufficient to validate the replacement before returning the line to production.

The 1747-L532 operates on 24 VDC backplane power supplied by the chassis power supply — typically a 1746-P1, 1746-P2, or 1746-P4 unit. No separate CPU power wiring is required. If your existing power supply is marginal or showing age-related instability, this is an appropriate time to evaluate a concurrent power supply replacement to eliminate a secondary failure point. The module draws standard SLC 500 backplane current and does not require derating of the chassis power budget in typical configurations.

For facilities that have already begun migrating I/O to newer platforms, the 1747-L532 can serve as a stable interim controller while analog and digital I/O modules — such as the 1746-IB16, 1746-OB16, 1746-NI4, or 1746-NO4I — are retained in the existing chassis. This phased approach reduces capital expenditure and allows engineering teams to validate new control logic in parallel with ongoing production. When the migration to a MicroLogix 1400 or CompactLogix L3x platform is eventually executed, the SLC 500 I/O wiring terminations can be documented and reused with appropriate terminal block adapters, minimizing field rewiring time.

Communication protocol compatibility is a critical factor in any SLC 500 CPU replacement. The 1747-L532 supports DF1 full-duplex and half-duplex protocols on its RS-232 channel port, enabling direct connection to SCADA systems, HMI panels such as the PanelView 550 or PanelView 600, and third-party Modbus gateways. DH-485 network connectivity allows the CPU to participate in multi-node token-passing networks alongside other SLC 500 nodes, MicroLogix controllers, and 1747-AIC link coupler devices. These protocol capabilities are preserved identically from the 1747-L524 predecessor, ensuring that existing SCADA polling configurations and HMI tag databases require no modification after the CPU swap.

Physical installation follows standard SLC 500 modular chassis procedures. The 1747-L532 is inserted into the leftmost (CPU) slot of the chassis, secured with the standard module latch, and connected to the programming terminal via the 1747-CP3 cable or a USB adapter. No special tools or torque specifications are required. The module’s front-panel LED indicators — RUN, FLT, BATT, FORCE, and DH-485 activity — provide immediate visual confirmation of operational status during commissioning. Battery replacement using the standard 1747-BA lithium battery should be performed prior to returning the unit to service if the replacement module has been in storage.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1747-L532 replacement or migration project typically involves coordinating several interdependent components. The chassis power supply — most commonly a 1746-P2 or 1746-P4 — should be inspected and replaced if it shows signs of capacitor aging or output voltage drift, as an unstable backplane supply is a leading cause of intermittent CPU faults in aging SLC 500 systems. Digital I/O modules such as the 1746-IB16 (16-point 24 VDC input) and 1746-OB16 (16-point 24 VDC output) are direct slot-compatible with the 1747-L532 chassis and require no wiring changes during a CPU-only swap.

For sites with analog process control loops, the 1746-NI4 (4-channel analog input) and 1746-NO4I (4-channel analog current output) modules continue to operate without reconfiguration after the CPU replacement, as their I/O configuration data is stored in the CPU program file and is restored on download. Communication infrastructure components — including the 1747-AIC isolated link coupler for DH-485 multi-drop networks and the 1747-KE RS-232/DH-485 interface module for upstream DH+ bridging — remain fully compatible with the 1747-L532 and do not require firmware updates or reconfiguration.

For HMI connectivity, existing PanelView 550 or PanelView 600 terminals communicating via DF1 RS-232 or DH-485 will reconnect to the 1747-L532 without tag database changes, provided the CPU node address and baud rate settings are preserved. Programming connectivity is maintained through the 1747-UIC USB-to-DH-485 adapter or the legacy 1747-CP3 serial cable, both of which are supported by RSLogix 500 on current Windows operating systems.

Retrofit Guidance FAQ

Q: Can I replace a 1747-L524 (SLC 5/02) with the 1747-L532 without rewriting my ladder program?
A: Yes. RSLogix 500 programs developed for SLC 5/02 CPUs are fully compatible with the 1747-L532. Upload the existing program from the 1747-L524 before removal, download it to the 1747-L532, and verify I/O status before returning to RUN mode. STI and DII interrupt routines available on the 5/03 but not the 5/02 do not need to be used — they can remain unconfigured.

Q: Will my DH-485 network configuration change after the CPU swap?
A: No. The 1747-L532 uses the same DH-485 port as earlier SLC 5/0x CPUs. Node address and baud rate settings are stored in the CPU and will be restored when the program is downloaded. Other nodes on the network — including MicroLogix controllers and 1747-AIC couplers — will not require reconfiguration.

Q: What programming cable do I need to connect to the 1747-L532?
A: The 1747-CP3 (RS-232 to DH-485) or the 1747-UIC (USB to DH-485) adapter are the standard options. Both are supported by RSLogix 500. The RS-232 channel port on the 1747-L532 can also be used for direct DF1 programming if a standard DB-9 serial cable is available.

Q: Does the 1747-L532 fit in all SLC 500 modular chassis?
A: Yes. The 1747-L532 is compatible with all SLC 500 modular chassis: 1746-A4, 1746-A7, 1746-A10, and 1746-A13. It occupies the CPU slot (slot 0) and does not consume an I/O slot.

Q: How do I handle the battery during replacement?
A: Install a fresh 1747-BA lithium battery before powering up the replacement 1747-L532. The battery maintains the real-time clock and retains program memory during power loss. The BATT LED will illuminate if the battery voltage is low.

Q: Can the 1747-L532 communicate with a SCADA system via Modbus?
A: The 1747-L532 natively supports DF1 protocol on its RS-232 port. Modbus RTU communication requires a third-party protocol converter or gateway device connected to the RS-232 port. Existing SCADA configurations using DF1 require no changes after the CPU swap.

Warranty Assurance

Every 1747-L532 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including power-on self-test, LED status confirmation, and communication port continuity checks. Units are packaged in anti-static protective packaging with foam cushioning to prevent transit damage.

In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a full refund based on the customer’s preference. Our technical support team is available to assist with installation questions, compatibility verification, and commissioning guidance. We maintain stock of the 1747-L532 and related SLC 500 components to support rapid dispatch — most orders are processed and shipped within 1–3 business days.

For urgent production-down situations, please contact us directly to discuss expedited shipping options. We understand that unplanned downtime in industrial environments carries significant operational cost, and our procurement process is designed to minimize the time between order placement and delivery to your facility.

TOPNLMS serves industrial customers globally, with particular strength in supplying discontinued and hard-to-source Rockwell Automation, Siemens, ABB, Schneider Electric, and Omron components to manufacturing, utilities, oil and gas, and process industries.
