Allen-Bradley 1746-A13 Ruggedized 13-Slot PLC Chassis

Product Overview

Allen-Bradley 1746-A13 Ruggedized 13-Slot PLC Chassis: Industrial Resilience for Harsh Environments

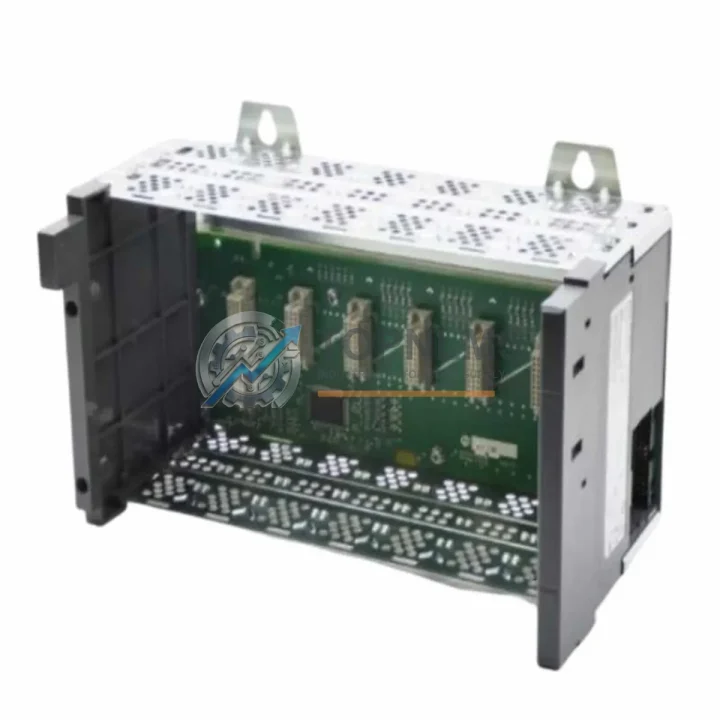

The Allen-Bradley 1746-A13 is a 13-slot modular chassis engineered for the SLC 500 programmable logic controller platform — one of the most widely deployed control architectures in global industrial automation. Designed and manufactured by Rockwell Automation, this chassis serves as the structural and electrical backbone of SLC 500 control systems, providing a robust, high-density mounting solution for I/O modules, processor units, communication adapters, and specialty function cards in demanding production environments.

Where control systems are exposed to elevated temperatures, high humidity, airborne particulates, mechanical vibration, or electromagnetic interference, the 1746-A13 delivers the structural rigidity and electrical isolation that mission-critical applications demand. Its backplane architecture supports reliable high-speed data exchange between the SLC 5/03, SLC 5/04, and SLC 5/05 processor modules and up to 12 I/O or specialty slots, enabling tightly integrated control logic across complex machine sequences and process loops.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1746-A13 chassis is rarely deployed in isolation — it forms the structural center of a fully integrated SLC 500 control panel. In a typical control cabinet configuration, the chassis houses the 1746-IB16 16-point DC input module and the 1746-OB16 16-point DC output module, providing the discrete I/O density required for machine sequencing and interlock logic. Analog process signals from field transmitters are handled by the 1746-NI4 analog input module, which slots directly into the chassis backplane alongside the processor.

For networked control architectures, the 1747-SDN DeviceNet scanner module or the 1747-AENTR EtherNet/IP adapter can be installed in the remaining slots, enabling the SLC 500 system to communicate with variable frequency drives, remote I/O racks, and SCADA systems over standard industrial protocols. In facilities where the SLC 500 must coexist with a ControlLogix or CompactLogix platform, the 1747-SCNR remote I/O scanner bridges legacy and modern control tiers without requiring a full system migration.

Power integrity is maintained by pairing the chassis with a 1746-P4 power supply, which delivers regulated 5 VDC and 24 VDC backplane power with built-in overcurrent protection — essential in environments where voltage transients from motor starters, contactors, or welding equipment can propagate through the panel. Safety-critical applications may also incorporate the 1791DS series safety I/O modules or standalone safety relays wired to the SLC 500 I/O bus, ensuring that emergency stop circuits and light curtain inputs are processed with the determinism required by IEC 62061 and ISO 13849 safety standards.

Terminal modules and wiring duct accessories from the 1492 series complement the chassis installation, providing organized, labeled field wiring terminations that simplify commissioning and reduce troubleshooting time during planned maintenance windows.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the 1746-A13 chassis is deployed in wellhead control panels, compressor station automation cabinets, and pipeline SCADA outstations where continuous, unattended operation is mandatory. The chassis withstands the wide ambient temperature swings common in outdoor enclosures and resists the corrosive atmospheric conditions present near gas processing equipment.

In underground and surface mining operations, SLC 500 systems built around the 1746-A13 control conveyor drives, crusher sequencing, ventilation fan interlocks, and dewatering pump stations. The chassis’s vibration tolerance — validated against IEC 68-2-6 — ensures backplane contact integrity even when installed in proximity to heavy crushing or screening machinery generating continuous mechanical shock loads.

In power generation and electrical substation environments, the 1746-A13 supports protection relay coordination, transformer cooling control, and auxiliary equipment sequencing. Its EMI resilience is particularly valued in high-voltage switchgear rooms where switching transients and magnetic field interference can disrupt less robust control hardware.

In water and wastewater treatment plants, the chassis provides the I/O capacity needed to manage pump station control, chemical dosing sequences, and SCADA telemetry — often in humid, chemically aggressive enclosure environments where long-term reliability directly impacts public health infrastructure.

In metallurgical and steel mill applications, the 1746-A13 is found in rolling mill control panels, furnace atmosphere management systems, and ladle transfer automation — environments characterized by extreme radiant heat, heavy vibration, and pervasive electromagnetic noise from large induction heating and arc furnace installations.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the 1746-A13?
All 1746-A13 units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with priority turnaround to minimize production downtime. Replacement or repair is arranged directly with our technical team at [email protected].

Q2: How is each unit tested before shipment?
Every 1746-A13 chassis undergoes pre-shipment functional verification including backplane continuity testing, slot connector inspection, and power rail integrity checks. Units are packaged in anti-static, shock-absorbing materials with individual serial number documentation to support traceability requirements in regulated industries.

Q3: Is the 1746-A13 compatible with all SLC 500 I/O modules and power supplies?
Yes. The 1746-A13 is fully compatible with the complete SLC 500 I/O module catalog — including digital, analog, specialty, and communication modules — as well as all 1746-P series power supplies. It is also backward-compatible with earlier SLC 5/01 and 5/02 processors, making it suitable for both new installations and legacy system expansions or repairs.

Q4: Can TOPNLMS support long-term or repeat procurement of the 1746-A13?
Yes. TOPNLMS maintains dedicated stock of high-demand SLC 500 components including the 1746-A13 to support MRO (maintenance, repair, and operations) procurement programs, planned shutdowns, and emergency replacement scenarios. Volume pricing and scheduled delivery agreements are available for industrial customers with recurring demand. Contact our team at +86 18359293191 or [email protected] to discuss supply arrangements.
