Allen-Bradley 1746-A13/B Replacement for SLC 500

Product Overview

Allen-Bradley 1746-A13/B Replacement for SLC 500: Seamless Migration & Upgrade Solution

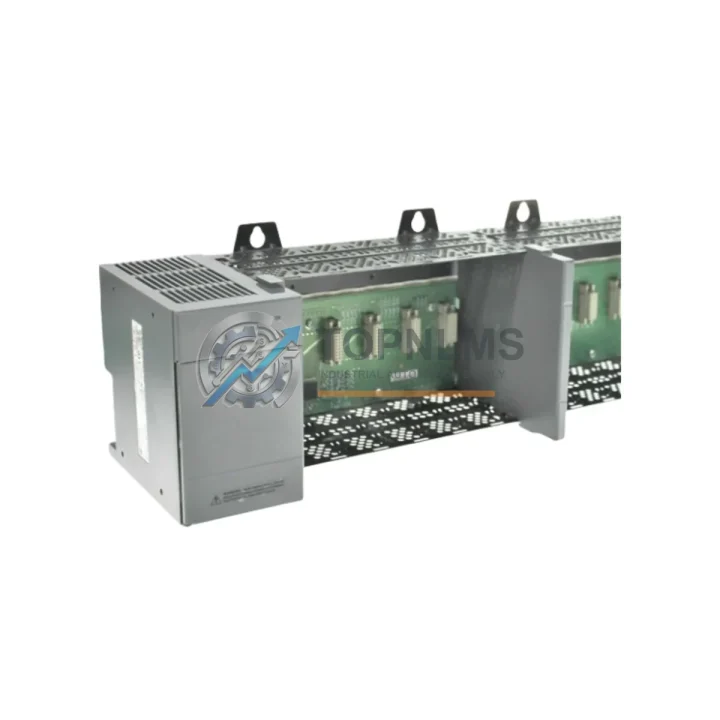

The Allen-Bradley 1746-A13/B is a 13-slot chassis designed for the SLC 500 modular programmable controller platform — one of the most widely deployed small-to-mid-range PLC families in discrete manufacturing, material handling, and process control applications. As Rockwell Automation has progressively moved the SLC 500 product line toward end-of-life status, sourcing a reliable, tested 1746-A13/B chassis has become a critical priority for maintenance engineers and procurement teams managing legacy control systems.

At TOPNLMS, we stock the 1746-A13/B chassis to support direct drop-in replacement, system expansion, and controlled migration projects. Every unit is inspected and function-tested prior to shipment, backed by a 12-month warranty, and dispatched from our Xiamen warehouse with full traceability documentation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SLC 500 chassis replacement rarely involves the chassis alone. In most retrofit and migration projects, the 1746-A13/B is installed alongside a compatible power supply — typically the 1746-P4 or 1746-P7 — which provides the regulated 5 VDC and 24 VDC backplane power required to support a full complement of 13 I/O modules. Engineers migrating from older single-slot chassis configurations such as the 1746-A4 or 1746-A7 will find the 13-slot form factor significantly reduces the need for additional chassis expansion and inter-chassis cabling.

On the processor side, the 1746-A13/B accommodates the full SLC 5/0x processor family. Sites running a 1747-L532 (SLC 5/03) or 1747-L542 (SLC 5/04) processor can transfer the existing RSLogix 500 program directly to the replacement chassis without modification, preserving all I/O addressing, rung logic, and data file structures. For sites considering a forward migration path, the chassis also supports the 1747-L553 (SLC 5/05) processor, which adds Ethernet/IP connectivity and enables integration with modern SCADA and MES platforms without replacing field wiring or I/O modules.

Communication infrastructure is another key consideration. Many SLC 500 installations rely on the 1747-SDN DeviceNet Scanner or the 1747-KE DH-485 to RS-232C interface module for field device connectivity. Both modules seat directly into the 1746-A13/B backplane slots and retain full compatibility with existing network configurations. Sites using DH+ topology can continue operating the 1784-KTX or equivalent communication adapter without reconfiguration.

For I/O-intensive applications, the 13-slot chassis accommodates a wide range of standard SLC 500 I/O modules — including discrete input modules such as the 1746-IB16 and analog input modules such as the 1746-NI4 — without any wiring changes to field terminal blocks. This is particularly valuable in applications where field wiring runs are long, costly to re-terminate, or embedded in conduit. The backplane slot assignments and I/O module addresses remain identical to the original chassis, meaning no program edits are required post-installation.

Where cabinet space is a constraint, the 1746-A13/B’s compatibility with standard 19-inch rack mounting and DIN rail configurations allows it to be fitted into existing control cabinet layouts without structural modification. In multi-chassis systems, the 1746-C9 or 1746-C16 expansion cables can be used to link the replacement chassis to an existing expansion chassis, maintaining the original distributed I/O architecture.

Retrofit Guidance FAQ

Q: Can I transfer my existing SLC 500 program to the replacement chassis without modification?
A: Yes. The 1746-A13/B uses the same backplane architecture and I/O slot addressing as all previous 1746-Axx chassis revisions. Upload your existing program from the original processor using RSLogix 500 or RSLogix Micro, then download it to the processor installed in the replacement chassis. No I/O address remapping is required provided the same processor and I/O module types are used.

Q: Are the field wiring terminations compatible?
A: Yes. The 1746-A13/B chassis itself does not carry field wiring — all field connections terminate at the I/O module terminal blocks, which are physically separate from the chassis. Existing I/O modules can be removed from the old chassis and re-seated in the replacement chassis without disturbing any field wiring.

Q: What communication protocols does the 1746-A13/B support?
A: The chassis supports all communication protocols available through the installed processor and communication modules. DH-485 is supported natively by SLC 5/03 and above processors. DH+ requires a 1747-KE or equivalent interface. Ethernet/IP is available with the SLC 5/05 processor (1747-L553). DeviceNet scanning is supported via the 1747-SDN module seated in any available I/O slot.

Q: Will the replacement chassis fit in my existing control cabinet?
A: The 1746-A13/B has the same physical footprint as all standard SLC 500 13-slot chassis. It supports both panel mounting and DIN rail mounting. If your existing cabinet uses panel-mount hardware, the replacement chassis uses the same mounting hole pattern. Verify that the power supply (1746-P series) is also compatible with the available cabinet space and power feed.

Q: How do I handle the transition from a discontinued chassis with a different slot count?
A: If migrating from a smaller chassis (e.g., 1746-A7), you will need to update the I/O configuration in RSLogix 500 to reflect the new chassis size. Existing I/O modules retain their slot addresses if placed in the same slot positions. Additional slots can be populated with new I/O modules as required. No changes to field wiring are needed for modules that are physically relocated to the same slot number.

Q: What is the lead time and shipping arrangement?
A: Units are in stock at our Xiamen warehouse. Standard dispatch is within 1–3 business days of order confirmation. International shipments are handled via DHL, FedEx, or UPS with full tracking. Export documentation including commercial invoice, packing list, and certificate of conformity is provided with every shipment.

Warranty Assurance

Every Allen-Bradley 1746-A13/B chassis supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection process includes visual examination, backplane continuity verification, and functional testing with a compatible SLC 500 processor and power supply. Units that do not pass inspection are not shipped.

In the event of a warranty claim, our after-sales team responds within 24 business hours. Defective units are replaced or credited at our discretion, with return shipping costs covered by TOPNLMS for confirmed warranty cases. We maintain a reserve stock of tested units specifically to support rapid warranty replacements, minimizing downtime for customers with urgent production requirements.

Our procurement guarantee includes accurate part number verification prior to shipment, tamper-evident packaging, and full traceability documentation. For customers requiring incoming inspection reports or third-party test certificates, these can be arranged upon request at the time of order.

TOPNLMS has supplied SLC 500 components to maintenance teams, system integrators, and OEM rebuild shops across Asia, Europe, and the Americas. Our focus on industrial automation spare parts means we understand the urgency of unplanned downtime and the importance of receiving the correct, tested component on the first shipment.

To place an order or request a quotation, contact our sales team directly:

📧 [email protected]
📞 +86 18359293191
🌐 https://topnlms.com
