Allen-Bradley 1734-OE2CK Ruggedized Analog Output Module

Product Overview

Allen-Bradley 1734-OE2CK Ruggedized Analog Output Module: Industrial Resilience for Harsh Environments

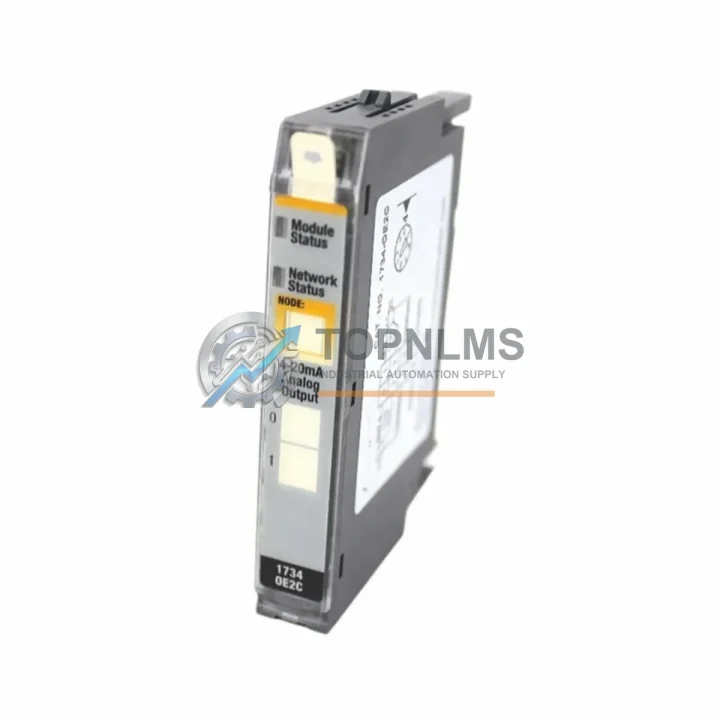

The Allen-Bradley 1734-OE2CK is a 2-channel analog output module engineered as part of Rockwell Automation’s POINT I/O platform — a modular, DIN-rail-mounted I/O architecture designed for distributed control in the most demanding industrial environments. Whether deployed in a high-temperature steel mill, a dust-laden mining gallery, a vibration-intensive offshore platform, or a chemically aggressive water treatment facility, the 1734-OE2CK delivers consistent, precision analog signal output with the reliability that mission-critical automation demands.

Designed to interface directly with Allen-Bradley ControlLogix, CompactLogix, and MicroLogix PLC families via standard POINT I/O adapter modules such as the 1734-AENT (EtherNet/IP adapter) or 1734-ADN (DeviceNet adapter), the 1734-OE2CK integrates seamlessly into existing Rockwell Automation control architectures. Its compact form factor allows dense I/O packing within a control cabinet, reducing panel footprint while maintaining full signal integrity across both channels.

Rugged Specifications Table

Comprehensive Protection Solutions

In a modern industrial control cabinet, the 1734-OE2CK does not operate in isolation — it is one node in a tightly integrated protection and control ecosystem. When paired with the 1734-IB8 8-channel digital input module and the 1734-OB8 digital output module on the same POINT I/O rail, engineers gain a complete mixed I/O station capable of handling both discrete safety interlocks and precision analog process control within a single compact assembly.

For applications requiring functional safety, the 1734-OE2CK is commonly deployed alongside Allen-Bradley GuardLogix safety PLCs and 1791DS series safety I/O modules, ensuring that analog output signals driving control valves, variable-frequency drives (VFDs), or proportional solenoids remain within safe operating limits even during fault conditions. The module’s 500 VAC channel-to-backplane isolation is a critical safeguard in environments where ground loops or transient voltage spikes — common in heavy motor-drive applications — could otherwise corrupt signal integrity or damage downstream instrumentation.

Power supply stability is equally important. The 1734-OE2CK is typically powered through a 1606-XLP or 1606-XLS series industrial power supply, which provides regulated 24 VDC with active power factor correction and wide-range AC input, ensuring the analog output module maintains full accuracy even during mains voltage fluctuations common in remote industrial substations. Upstream, a 1734-EP24DC POINT I/O power distribution module manages field-side power segmentation, allowing individual I/O segments to be de-energized for maintenance without disrupting the entire control node.

Communication reliability is maintained through the 1734-AENT EtherNet/IP adapter, which supports Device Level Ring (DLR) topology — a critical feature for continuous production lines where a single cable fault must not interrupt process control. In legacy installations using DeviceNet, the 1734-ADN adapter provides equivalent connectivity, and both adapters support full diagnostic reporting of the 1734-OE2CK’s channel status, output clamping events, and wire-break detection directly to the ControlLogix or CompactLogix controller.

For terminal connectivity, the 1734-OE2CK uses the 1734-TOPS or 1734-TOPNK removable terminal base, which allows the module electronics to be swapped without disturbing field wiring — a significant advantage in 24/7 continuous process plants where scheduled downtime is measured in minutes, not hours. This hot-swap capability, combined with the module’s onboard non-volatile configuration storage, means a replacement 1734-OE2CK restores full operation immediately upon insertion, with no re-parameterization required.

Application in Critical Infrastructure

In oil and gas upstream operations, the 1734-OE2CK drives 4–20 mA setpoint signals to electro-pneumatic positioners on wellhead control valves, where ambient temperatures can swing from –20°C in arctic winter conditions to +55°C inside sun-exposed junction boxes. Its wide operating temperature range and conformal coating options make it a proven choice for both onshore and offshore topsides installations.

In coal and metal mining, conveyor belt speed control systems rely on the 1734-OE2CK to deliver precise analog reference signals to ABB or Siemens variable-frequency drives. The module’s IEC 60068-2-6 vibration compliance ensures that the constant mechanical vibration transmitted through steel structures does not induce output drift or connector fatigue over multi-year service intervals.

In thermal power generation, distributed control systems (DCS) use the 1734-OE2CK as a remote I/O node for boiler feedwater control loops, where the module’s 16-bit resolution translates to sub-milliamp output precision — essential for maintaining drum level within ±2 mm tolerance at full load. The module’s CE and UL certifications satisfy the compliance requirements of both IEC 61511 (functional safety for process industries) and NFPA 85 (boiler and combustion systems).

In municipal water and wastewater treatment, the 1734-OE2CK controls chemical dosing pump speeds and valve positions in chlorination and pH adjustment loops. Its 500 VAC isolation barrier prevents ground-referenced interference from submersible pump motors from corrupting the 4–20 mA output signal, a common failure mode in poorly grounded wet-well installations.

In metallurgical and steel processing plants, the module is deployed in rolling mill tension control systems, where it outputs analog speed references to multi-drive synchronization systems. The high-humidity tolerance (up to 95% RH non-condensing) ensures reliable operation in the steam-laden atmosphere of continuous casting floors, where conventional I/O modules frequently suffer from condensation-induced insulation breakdown.
