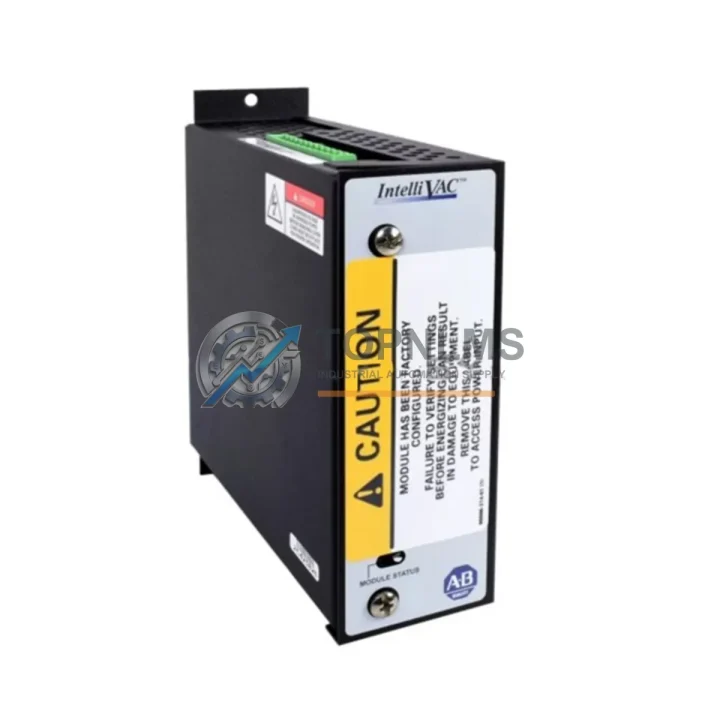

Allen-Bradley 1503VC-BMC5 Original Industrial Spare IntelliVAC Compatible

Product Overview

Allen-Bradley 1503VC-BMC5 Original Industrial Spare IntelliVAC Compatible: Ensuring System Stability in Motor Control Centers

The Allen-Bradley 1503VC-BMC5 is an original IntelliVAC Vacuum Contactor Control Module engineered for demanding industrial motor control center (MCC) environments. As a genuine Rockwell Automation spare part, the 1503VC-BMC5 delivers the precise control logic, vacuum contactor interface, and diagnostic capability required to maintain uninterrupted production in heavy-duty applications including mining, oil & gas, water treatment, cement, and steel manufacturing. When a vacuum contactor fails unexpectedly, having a verified original replacement module on the shelf is the single most effective strategy to minimize unplanned downtime and protect capital equipment.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your IntelliVAC MCC Investment

A scheduled maintenance program built around the 1503VC-BMC5 control module should extend beyond the module itself. The IntelliVAC vacuum contactor system is an integrated assembly, and the reliability of the entire motor control center depends on the coordinated health of every component in the electrical circuit.

During a planned outage or annual MCC inspection, technicians replacing or testing the 1503VC-BMC5 should simultaneously inspect the 1503VC vacuum contactor assembly for vacuum bottle integrity and contact wear. The contactor’s mechanical life is finite, and a worn vacuum bottle will cause re-strike arcing even with a perfectly functional control module. At the same time, the 1503-SXT DeviceNet communication adapter should be checked for firmware version compatibility and connector seating — communication faults are a leading cause of nuisance trips that are often misdiagnosed as control module failures.

The 1336 PLUS II or PowerFlex 700 drive feeding the MCC bucket should be reviewed for parameter drift and fault history. In integrated drive-contactor systems, a degraded drive output can stress the contactor control module over time. Alongside the drive, the 1492-SP series branch circuit protection fuse modules and 1492-FB fuse blocks within the MCC bucket should be inspected and replaced on a time-based schedule rather than waiting for failure — a blown fuse during production is a far more expensive event than a planned replacement.

Control cabinet wiring integrity is equally critical. The 1492-W terminal blocks and 1492-J jumper bars used in the control wiring of the MCC should be checked for thermal discoloration, loose terminations, and insulation degradation. Loose control wiring is a primary cause of intermittent faults that are difficult to reproduce and time-consuming to diagnose. While the cabinet is open, the 1606-XLP or 1606-XLS 24V DC power supply providing logic power to the IntelliVAC module should be load-tested; an aging power supply with marginal output voltage will cause erratic module behavior that mimics a faulty 1503VC-BMC5.

For facilities running multiple MCC lineups, a proactive spare parts inventory should include at minimum one 1503VC-BMC5 control module, one spare vacuum contactor assembly, and a set of 1492-SP fuse modules sized for the installed loads. Facilities with DeviceNet-based MCC communication should also stock a spare 1788-DNBO DeviceNet bridge module to ensure network recovery capability in the event of a communication infrastructure failure. Finally, any MCC lineup equipped with an E3 or E3 Plus overload relay (193-EC series) should have that device’s trip history reviewed during the same maintenance window — overload relay data often reveals thermal stress patterns that predict imminent motor or contactor failure before it occurs.

Strategic Replacement Solutions: Reducing Downtime with Verified Original Spares

The 1503VC-BMC5 is a direct plug-in replacement for earlier IntelliVAC BMC-series control modules installed in Bulletin 1503 MCC lineups. Its tool-free, keyed connector design ensures correct installation without the risk of mis-wiring, making field replacement a task that a qualified electrician can complete in under 30 minutes — a critical advantage when every minute of downtime carries a measurable production cost.

For facilities still operating legacy MCC lineups originally commissioned in the 1990s or early 2000s, the 1503VC-BMC5 provides a direct upgrade path that preserves the existing vacuum contactor mechanical assembly, control wiring, and DeviceNet network infrastructure. There is no need to replace the entire MCC bucket or re-engineer the control system. This compatibility-first replacement strategy significantly reduces both the capital cost and the engineering time associated with aging system modernization.

Sourcing original Allen-Bradley parts through a verified industrial supplier eliminates the risk of counterfeit or substandard modules that may pass initial power-on tests but fail prematurely under thermal cycling and electrical stress. Every 1503VC-BMC5 shipped from TOPNLMS undergoes functional verification prior to dispatch and is covered by a 12-month warranty from the date of shipment, providing procurement teams with the documentation and assurance required for maintenance budget justification and audit compliance.

Support FAQ

Q1: Is the 1503VC-BMC5 compatible with all IntelliVAC vacuum contactor assemblies?
The 1503VC-BMC5 BMC (Base Module Controller) is designed for use with Allen-Bradley Bulletin 1503VC IntelliVAC vacuum contactor assemblies. Compatibility depends on the specific contactor frame size and firmware revision of the existing system. We recommend confirming the existing contactor catalog number and MCC lineup documentation before ordering. Our technical team can assist with compatibility verification upon request.

Q2: What is included in the 12-month warranty and what does pre-shipment testing cover?
Every 1503VC-BMC5 is functionally tested before shipment to verify power-on operation, communication interface integrity, and output signal response. The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions from the date of shipment. Warranty claims are supported with replacement or refund, subject to inspection of the returned unit.

Q3: How quickly can the 1503VC-BMC5 be replaced in the field, and what tools are required?
The IntelliVAC BMC module uses a keyed, tool-free plug-in connector. A qualified electrician can complete the replacement in under 30 minutes following standard lockout/tagout procedures. No special programming or configuration is required for a direct module swap within the same IntelliVAC system revision.

Q4: What is the recommended spare parts stocking strategy for facilities with multiple IntelliVAC MCC lineups?
For facilities with three or more IntelliVAC MCC buckets, we recommend maintaining a minimum of one 1503VC-BMC5 control module per five installed units as a cold-standby spare. For critical production lines where downtime cost exceeds USD 10,000 per hour, a hot-standby spare stored in the control room is advisable. Bulk procurement of 3–5 units typically qualifies for volume pricing — contact our sales team for a quotation.
