Allen-Bradley 150-F201NBD Replacement for SMC Flex

Product Overview

Allen-Bradley 150-F201NBD Replacement for SMC Flex: Smooth Transition & Legacy System Upgrade

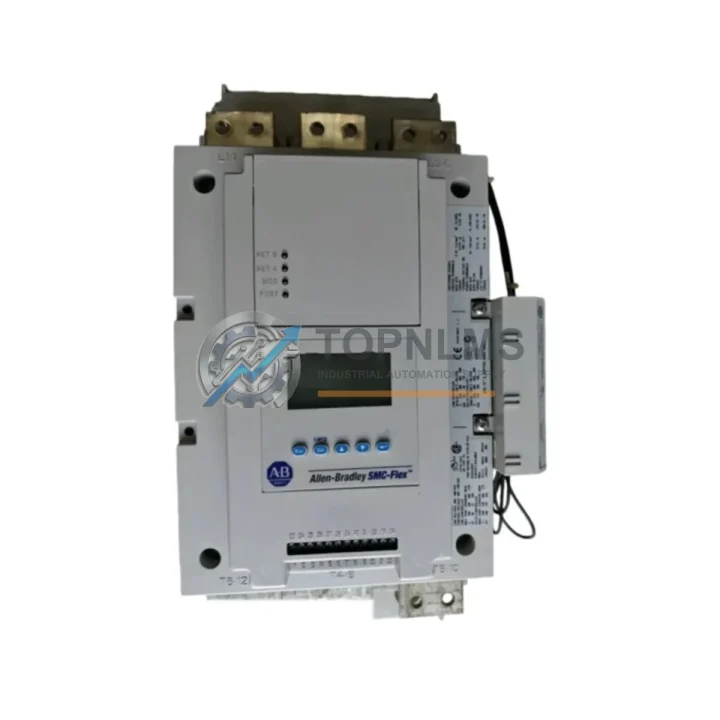

The Allen-Bradley 150-F201NBD is a 201A full-voltage soft starter from the SMC Flex series, designed for three-phase AC motor control applications in industrial automation environments. As legacy SMC Flex units approach end-of-service life or become increasingly difficult to source, facilities engineers and procurement teams are actively seeking verified replacement units that preserve existing wiring infrastructure, control logic, and panel space allocations. TOPNLMS maintains in-stock inventory of the 150-F201NBD to support urgent replacement and planned upgrade projects across manufacturing, water treatment, HVAC, mining, and material handling sectors.

The 150-F201NBD operates at 200–480V AC, 3-phase, with a 201A continuous current rating and integrated bypass contactor. It supports DeviceNet communication via an optional 150-SM-DNY DeviceNet module, enabling seamless integration into existing Rockwell Automation ControlLogix or CompactLogix PLC architectures without requiring changes to the network topology or ladder logic addressing. For sites already running a 1756-DNB DeviceNet Scanner in a ControlLogix chassis, the 150-F201NBD slots into the existing node map with minimal reconfiguration.

When replacing a failed or obsolete SMC Flex unit, the physical footprint of the 150-F201NBD matches the original panel cutout dimensions, preserving DIN rail or panel-mount configurations in existing MCC (Motor Control Center) lineups. The three-wire control input (start, stop, fault reset) is fully compatible with legacy hardwired control schemes, and the 24V DC auxiliary output for status signaling remains pin-compatible with most existing field wiring. Engineers migrating from earlier SMC-2 or SMC-3 series starters will find that the 150-F201NBD’s terminal block layout and torque control parameters can be mapped directly using the existing RSLogix 5000 or Studio 5000 parameter tables, significantly reducing commissioning time.

For applications where the original installation used a 150-F201NBD alongside a 150-SM-NS Network Status module or a 150-SM-OEM OEM module for custom I/O expansion, these accessory modules remain compatible with the replacement unit. Sites running Profibus DP communication can integrate the 150-SM-PDP Profibus module to maintain protocol continuity without gateway hardware. Power wiring to the load terminals (T1, T2, T3) and line terminals (L1, L2, L3) follows the same torque specifications as the original unit, allowing maintenance teams to reconnect using existing cable lugs and ferrules.

In retrofit scenarios where the control system is being partially modernized—for example, migrating the PLC from a legacy SLC 500 or PLC-5 platform to a CompactLogix 5380—the 150-F201NBD can serve as a stable motor control layer while the upper-level control architecture is upgraded in phases. This phased approach minimizes production downtime by isolating the motor starter replacement from the PLC migration schedule. The soft starter’s built-in motor protection functions (phase loss, overload, jam detection, and stall protection) reduce the need for external overload relays, simplifying the panel layout during the retrofit.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete SMC Flex replacement or system modernization project typically involves more than the soft starter itself. When upgrading from a legacy motor control architecture, the 150-F201NBD is commonly deployed alongside a 1756-L85E ControlLogix controller as the new supervisory PLC, replacing aging PLC-5 or SLC 500 processors. The DeviceNet network connecting the soft starter to the PLC is managed through a 1756-DNB DeviceNet Scanner module installed in the ControlLogix chassis, maintaining the existing field device addressing without rewiring.

For sites transitioning to EtherNet/IP as the primary control network, a 150-SM-EIP EtherNet/IP communication module can be fitted to the 150-F201NBD, enabling direct integration with a 1783-US8T Stratix 2000 managed switch and the plant-wide EtherNet/IP backbone. Operator interface upgrades typically pair the soft starter with a 2711P-T10C21D8S PanelView Plus 7 HMI, providing real-time motor status, fault history, and parameter adjustment from the control panel door.

Power distribution to the 150-F201NBD is typically sourced through a 1606-XLP72E power supply for the 24V DC control circuit, while the main power feed is protected by a 140M-C2E-B40 Motor Protection Circuit Breaker upstream of the starter. For installations requiring signal isolation between the PLC I/O and field devices during the retrofit, a 931S-1CH signal isolator or equivalent DIN-rail-mounted isolator module is recommended to prevent ground loop interference during the transition period.

Sites performing a full MCC modernization may also replace the existing 100-C180D10 IEC contactor in the bypass circuit with a new unit to match the service life of the 150-F201NBD, ensuring the entire motor control assembly is restored to a known-good baseline before recommissioning.

Retrofit Guidance FAQ

Q: Can I reconnect existing field wiring directly to the 150-F201NBD without modification?
A: Yes. The line (L1/L2/L3) and load (T1/T2/T3) terminals use the same torque specifications and lug compatibility as the original SMC Flex unit. The 3-wire control input terminals are pin-compatible with standard hardwired start/stop circuits. No panel modification is required for direct replacement in most standard installations.

Q: Will my existing DeviceNet configuration and RSLogix 5000 program work without changes?
A: In most cases, yes. If the replacement unit uses the same 150-SM-DNY DeviceNet module and the node address is set identically to the original, the ControlLogix or CompactLogix controller will recognize the device without requiring changes to the I/O configuration or ladder logic. A full online test is recommended after replacement to verify parameter mapping.

Q: How do I handle the communication protocol if I am migrating from DeviceNet to EtherNet/IP?
A: Install the 150-SM-EIP EtherNet/IP module in the 150-F201NBD and assign a static IP address within the plant network subnet. Update the Studio 5000 project to add the soft starter as an EtherNet/IP device and map the relevant tags. The existing DeviceNet wiring can be decommissioned after successful EtherNet/IP commissioning.

Q: Does the 150-F201NBD fit in the same panel space as the unit it replaces?
A: The 150-F201NBD shares the same physical envelope as other 150-F series SMC Flex starters in the 200A class. For direct replacement of a same-series unit, no panel cutout modification is required. If replacing a different-series starter (e.g., SMC-3 or SMC-2), verify the mounting hole pattern and terminal clearance before installation.

Q: What motor protection functions are built in, and do I need to remove external overload relays?
A: The 150-F201NBD includes integrated overload, phase loss, jam, and stall protection. In most retrofit scenarios, external overload relays can be removed, simplifying the panel layout. Confirm with your site’s electrical engineer that the integrated protection settings meet local code requirements before removing external devices.

Q: What is the recommended commissioning procedure after installation?
A: After physical installation and wiring reconnection, power up the unit in local control mode and verify the fault status display. Set motor FLA (Full Load Amps) and ramp parameters via the integral keypad or through the connected PLC. Perform a no-load test start before connecting the motor load. Document all parameter settings for the site maintenance record.

Warranty Assurance

Every Allen-Bradley 150-F201NBD unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including power-on self-test, communication module check (where applicable), and visual inspection for physical damage or counterfeit indicators. Units are packed in anti-static, shock-resistant packaging suitable for international freight.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical support team is available to assist with installation questions, parameter configuration, and fault diagnosis via email at [email protected] or by phone at +86 18359293191. Typical response time for technical inquiries is within 1 business day.

For procurement teams requiring documentation, TOPNLMS can provide a product test report, packing list, and commercial invoice with HS code declaration for customs clearance. Bulk orders and long-term supply agreements are available for MRO (Maintenance, Repair, and Operations) programs requiring scheduled delivery of SMC Flex replacement units.

Stock availability is updated regularly. Contact us to confirm current lead time and reserve units for planned maintenance shutdowns or emergency replacement programs.
