Allen-Bradley 150-F60NBD Ruggedized Soft Starter for Harsh Environments

Product Overview

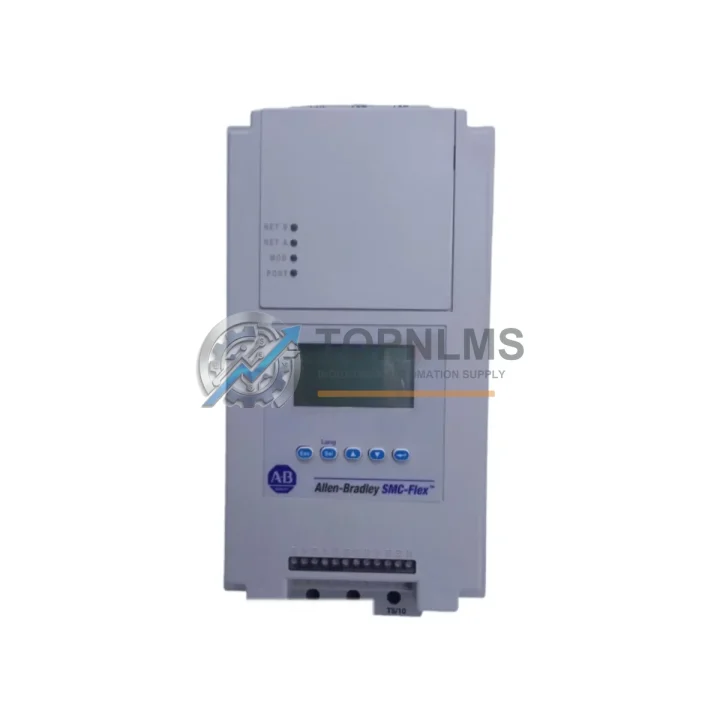

Allen-Bradley 150-F60NBD Ruggedized Soft Starter Module for Harsh Environments

The Allen-Bradley 150-F60NBD is a high-performance SMC Flex Series soft starter engineered for demanding industrial environments where reliability is non-negotiable. Rated at 60A with integrated bypass contactor, this unit delivers smooth motor acceleration and deceleration while protecting critical drive systems from the mechanical and electrical stresses that cause premature failure in harsh operating conditions. Whether deployed in high-temperature foundries, dust-laden mining galleries, high-humidity water treatment facilities, or vibration-intensive heavy manufacturing lines, the 150-F60NBD maintains consistent performance where lesser components fail.

Designed as a direct original spare for Rockwell Automation SMC Flex control architectures, the 150-F60NBD integrates seamlessly into existing Allen-Bradley control panels without modification to wiring schematics or PLC programming. Its built-in bypass contactor eliminates the need for an external bypass device, reducing panel footprint and simplifying maintenance procedures during scheduled shutdowns or emergency replacements. For facilities operating continuous production lines where unplanned downtime carries significant financial consequences, stocking the 150-F60NBD as a verified original spare is a fundamental risk mitigation strategy.

Rugged Specifications Table

Comprehensive Protection Solutions

In any industrial control cabinet housing the 150-F60NBD, the soft starter does not operate in isolation — it is one node in a broader system of protection and control components that must all function reliably under the same harsh conditions. During a planned maintenance inspection or emergency replacement of the 150-F60NBD, experienced maintenance engineers routinely audit the surrounding components to prevent cascading failures.

The Allen-Bradley 150-F60NBD works in close coordination with the motor branch circuit protection upstream. Inspecting and, where necessary, replacing the associated motor circuit protector — such as units from the Allen-Bradley 140M series — ensures that the soft starter is protected from fault currents that could cause internal damage. Downstream, the motor itself should be verified for insulation resistance and bearing condition, as a degraded motor load can stress the soft starter’s SCR output stage even during normal operation.

Within the same control cabinet, the 1756-series ControlLogix or 1769-series CompactLogix PLC modules that issue run/stop commands to the 150-F60NBD should be inspected for firmware currency and I/O module integrity. A failing 1769-IQ16 digital input module or a degraded 1756-OB16I output module can send erratic signals that cause nuisance trips or prevent proper soft-start sequencing. Similarly, the 1492-series terminal blocks and wiring duct that carry control signals to the SMC Flex unit should be checked for loose terminations, which are a common source of intermittent faults in high-vibration environments.

Power quality feeding the 150-F60NBD is equally critical. An Allen-Bradley 1606-series industrial power supply providing 24VDC control voltage to the cabinet should be verified for output stability, as voltage sags can disrupt the soft starter’s internal logic. Line reactors or EMI filters installed on the incoming three-phase supply help suppress voltage transients and harmonic disturbances that, over time, degrade the SCR firing circuits inside the soft starter. In facilities with significant variable frequency drive (VFD) installations nearby — such as PowerFlex 525 or PowerFlex 755 drives — harmonic mitigation is especially important to protect the 150-F60NBD’s sensitive electronics.

For facilities operating in classified hazardous areas or environments with explosive dust, the control signals entering the cabinet from field devices should pass through appropriate signal isolators or safety barriers. Rockwell Automation’s 1797-series FLEX Ex I/O modules or equivalent intrinsically safe signal conditioners ensure that field wiring does not introduce ignition-capable energy into the control enclosure. Communication integrity between the soft starter and the supervisory PLC should also be validated — the DeviceNet scanner module (such as the 1756-DNB) that manages the SMC Flex network node should be checked for error counters and node health status.

Application in Critical Infrastructure

The Allen-Bradley 150-F60NBD finds its most demanding applications in critical infrastructure sectors where motor control reliability directly determines operational continuity and safety outcomes.

In oil and gas processing facilities, the 150-F60NBD controls pump and compressor motors that move hydrocarbons through pipelines and processing trains. Soft starting these loads eliminates the mechanical shock that causes seal failures and coupling damage, while the integrated bypass contactor ensures that the motor runs at full efficiency once up to speed — critical for energy management in facilities with large motor populations.

In mining operations, conveyor drive motors, crusher drives, and ventilation fan motors operate in environments saturated with coal dust, silica, and moisture. The 150-F60NBD’s robust construction and sealed control electronics allow it to function reliably in these conditions when properly installed in a rated enclosure. Its ability to provide controlled acceleration reduces belt slip and mechanical stress on conveyor structures, extending the service life of the entire drive train.

In water and wastewater treatment plants, pump motors driving raw sewage, sludge, and chemical dosing systems require soft starting to prevent water hammer in pipework and to reduce starting current demand on facility electrical infrastructure. The 150-F60NBD’s current-limiting soft start capability is directly applicable to these pump control applications, and its compatibility with Allen-Bradley PLC systems allows integration into existing SCADA architectures without additional protocol conversion hardware.

In metallurgical and steel production facilities, the combination of high ambient temperatures, electromagnetic interference from arc furnaces, and continuous 24/7 operation creates one of the most challenging environments for any electronic control component. The 150-F60NBD’s industrial-grade design and Rockwell Automation’s manufacturing standards make it a proven choice for motor control in rolling mill auxiliary drives, cooling system pumps, and material handling conveyors in these facilities.

In power generation and electrical utilities, auxiliary motor systems — cooling water pumps, fuel handling conveyors, air compressors — rely on soft starters to manage starting loads on facility electrical buses. The 150-F60NBD’s compatibility with Allen-Bradley control systems already deployed in power plant DCS and PLC architectures simplifies integration and reduces commissioning time during planned outage windows.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the 150-F60NBD?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Each unit is tested prior to shipment to verify electrical integrity and functional performance. The warranty period begins from the date of confirmed shipment. In the event of a warranty claim, we provide replacement or repair support with documented test records available upon request.

Q2: How is the 150-F60NBD tested before shipment?
Every 150-F60NBD unit undergoes pre-shipment functional verification including insulation resistance testing, control circuit continuity checks, and visual inspection for physical integrity. Units sourced as tested-good surplus are additionally verified against Allen-Bradley factory specifications using calibrated test equipment. Test records are available for review and can be provided with the shipment documentation upon request.

Q3: Is the 150-F60NBD compatible with my existing Allen-Bradley SMC Flex installation?
Yes. The 150-F60NBD is a standard SMC Flex series unit and is directly compatible with existing Allen-Bradley SMC Flex control architectures, DeviceNet networks, and Rockwell Automation PLC systems including ControlLogix and CompactLogix platforms. No firmware modifications or wiring changes are required for a like-for-like replacement of a failed 150-F60NBD unit. If your installation uses a different current rating or communication option, please contact us to confirm the correct replacement part number.

Q4: Can you support long-term supply of the 150-F60NBD for ongoing maintenance programs?
Yes. TOPNLMS maintains inventory of Allen-Bradley SMC Flex series components to support planned maintenance programs, annual shutdown procurement, and emergency replacement requirements. We can provide quotations for single units or bulk quantities, and we support scheduled delivery arrangements for facilities that prefer to maintain a consignment stock of critical spare parts. Contact our team to discuss a supply agreement tailored to your maintenance cycle.
