Allen-Bradley 1440-TBS-J Original Industrial Spare ArmorBlock MaXum Compatible: System Stability Through Precision Spare Management

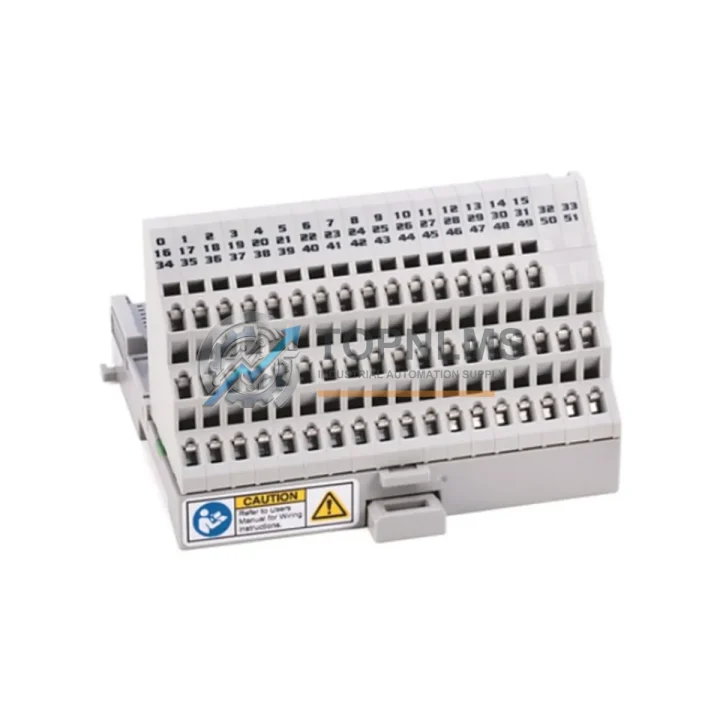

The Allen-Bradley 1440-TBS-J is a DIN-Rail mounted terminal base designed specifically for the ArmorBlock MaXum Condition Monitoring platform — Rockwell Automation’s purpose-built solution for vibration, temperature, and process variable monitoring in demanding industrial environments. As a foundational mounting and wiring interface component, the 1440-TBS-J provides the secure mechanical seat and field-wiring termination point for ArmorBlock MaXum sensor modules, making it an indispensable spare in any maintenance-conscious facility running the 1440 Series condition monitoring system.

Sourced as an original Rockwell Automation component, the 1440-TBS-J is tested prior to shipment and backed by a 12-month warranty. Whether you are managing a planned shutdown, responding to an unplanned trip, or building a strategic spare parts inventory, having this terminal base on the shelf eliminates one of the most common causes of extended downtime: waiting on long-lead hardware.

Critical Technical Specs Table

Preventive Maintenance Strategy

The 1440-TBS-J sits at the heart of a condition monitoring node. When a plant engineer schedules a routine inspection of the ArmorBlock MaXum system, the terminal base is rarely the first component checked — yet it is often the silent contributor to intermittent signal faults, loose field-wiring connections, and module seating failures that cascade into false alarms or missed vibration events.

A disciplined preventive maintenance cycle for a 1440 Series condition monitoring cabinet should begin with a visual and mechanical check of each terminal base. Inspect the DIN rail locking tab for fatigue, verify that field-wiring screw terminals are torqued to specification, and confirm that the sensor module — such as the 1440-VST04-01RA vibration and temperature module — seats flush without play. A loose module-to-base interface is a leading cause of erratic vibration readings that can mask genuine bearing wear.

While the cabinet is open, it is sound practice to simultaneously inspect the 1440-ACNR09-04RB ArmorBlock MaXum network communication module, which handles EtherNet/IP data routing from the sensor nodes to the ControlLogix or CompactLogix controller. Communication module firmware should be verified against the current Rockwell Automation compatibility matrix. Alongside this, check the 1756-EN2T EtherNet/IP communication module in the ControlLogix chassis if the 1440 system feeds data upstream to a 1756 backplane — a degraded network card can introduce latency that distorts time-stamped vibration trend data.

Field wiring entering the 1440-TBS-J should be inspected for insulation integrity, particularly in high-vibration zones where cable fatigue is accelerated. Shielded sensor cables — typically 4-conductor shielded instrumentation cable compatible with ICP/IEPE accelerometers — should be checked for shield continuity and proper grounding at a single point to prevent ground loops. If the plant uses 1440-SPM-CABLE-xxx series sensor cables, verify connector seating and jacket condition at each inspection interval.

Power distribution to the 1440 network should also be audited. The 1606-XLP power supply or equivalent 24 VDC industrial DIN-rail power supply feeding the ArmorBlock MaXum nodes should be load-tested and output voltage verified under full module load. A sagging supply rail is a common root cause of module resets that are misdiagnosed as sensor failures. Fuse modules — such as the 1492-FB series fuse terminal blocks — protecting individual 24 VDC branch circuits should be inspected and any discolored or thermally stressed fuses replaced proactively.

For plants running a broader Rockwell Automation architecture, the condition monitoring data from the 1440 system typically integrates with a 1756-L8x ControlLogix controller or a 5069-L3x CompactLogix controller. Ensuring that the controller firmware and the 1440 Add-On Profile (AOP) are version-matched prevents configuration drift after controller firmware updates — a maintenance step that is frequently overlooked during rolling upgrade campaigns.

Finally, if the plant uses Rockwell Automation FactoryTalk View SE or ME HMI to display condition monitoring trends, verify that the HMI tag database reflects any I/O address changes made during module replacements. An HMI displaying stale or unconnected tags provides false confidence to operators and defeats the purpose of the condition monitoring investment.

Strategic Replacement Solutions

The 1440-TBS-J was introduced as part of the ArmorBlock MaXum platform, which Rockwell Automation positioned as a distributed, DIN-rail-mounted alternative to traditional rack-based condition monitoring systems. Many plants installed the 1440 Series in the mid-2000s through the 2010s, meaning a significant installed base is now operating with aging terminal bases that have accumulated years of thermal cycling, vibration stress, and field-wiring re-terminations.

Replacing a worn or damaged 1440-TBS-J does not require replacing the sensor module itself — the removable wiring base design allows field wiring to be transferred to a new terminal base without re-engineering the sensor cable layout. This dramatically reduces replacement time from hours to minutes, making it practical to execute a terminal base swap during a short planned outage window rather than a full scheduled shutdown.

For facilities managing end-of-life 1440 Series installations, stocking one or two 1440-TBS-J units per condition monitoring cabinet is a low-cost insurance policy against unplanned downtime. The cost of a single hour of unplanned production loss in most process industries far exceeds the cost of maintaining a small strategic spare inventory. Procurement teams should evaluate the 1440-TBS-J alongside other 1440 Series consumable spares — including sensor modules, communication modules, and power accessories — as part of an annual spare parts review cycle.

For plants considering migration from the 1440 ArmorBlock MaXum platform to newer Rockwell Automation condition monitoring solutions such as the 1444 Series EnPAC or cloud-connected monitoring via FactoryTalk Analytics for Devices, the 1440-TBS-J remains the correct spare to maintain system continuity during the transition period. A phased migration strategy — replacing sensor modules node by node while maintaining the existing terminal base infrastructure — reduces capital expenditure and minimizes the risk of a full-system cutover.

Support FAQ

Q1: Is the 1440-TBS-J compatible with all ArmorBlock MaXum 1440 Series modules?
The 1440-TBS-J is the standard DIN-rail terminal base for the 1440 ArmorBlock MaXum platform and is compatible with the range of 1440 Series sensor and I/O modules. Always verify the specific module catalog number against Rockwell Automation’s 1440 Series compatibility documentation to confirm the correct terminal base variant for your application.

Q2: What pre-shipment testing is performed on the 1440-TBS-J?
Each unit undergoes visual inspection and mechanical verification prior to shipment to confirm original condition, correct part number, and absence of physical damage. Units are shipped in protective packaging to prevent transit damage. A 12-month warranty covers defects in materials and workmanship from the date of receipt.

Q3: Can the 1440-TBS-J be replaced in the field without removing field wiring?
The ArmorBlock MaXum terminal base is designed with a removable wiring interface. In most installations, field wiring can be disconnected as a wiring block and transferred to the replacement terminal base, significantly reducing replacement time and the risk of wiring errors during re-termination.

Q4: How should the 1440-TBS-J be included in a spare parts inventory strategy?
For facilities with multiple 1440 Series condition monitoring nodes, a recommended practice is to maintain at least one 1440-TBS-J per four to six installed nodes, reviewed annually. Terminal bases in high-vibration or high-thermal-cycling environments should be inspected at each planned shutdown and replaced at the first sign of mechanical wear, loose terminal retention, or DIN rail locking tab fatigue. Coordinating terminal base procurement with other 1440 Series spares — sensor modules, communication modules, and power accessories — during a single purchase order reduces per-unit logistics costs and ensures cohesive spare coverage.
