Allen-Bradley 1336T-MCB-SP51B Original Industrial Spare 1336 PLUS II Compatible

Product Overview

Allen-Bradley 1336T-MCB-SP51B Original Industrial Spare 1336 PLUS II Compatible: System Stability & Industrial Spare Parts Maintenance Value

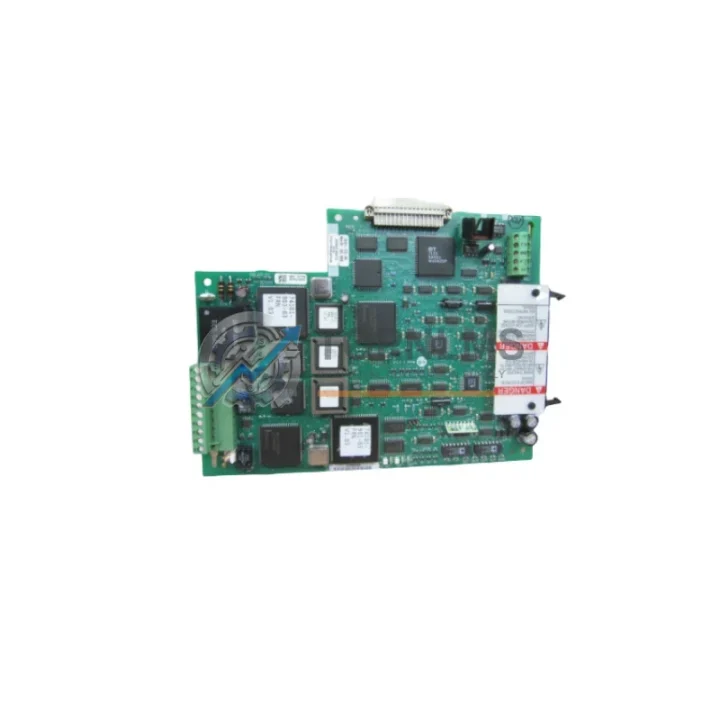

The Allen-Bradley 1336T-MCB-SP51B (internal part number 74101-772-54) is the original main control board (MCB) engineered specifically for the 1336 PLUS II series AC variable frequency drives. In industrial facilities where continuous production is non-negotiable, this board governs motor speed regulation, torque control, fault diagnostics, and drive communication — making it one of the most mission-critical spare components in any maintenance inventory built around Rockwell Automation control architectures. Whether your facility operates a single 1336 PLUS II drive or an entire fleet distributed across multiple production lines, the availability of a verified, tested replacement control board directly determines how quickly your maintenance team can recover from an unplanned drive fault and restore full production capacity.

Downtime caused by a failed main control board cascades rapidly: conveyor stoppages, pump failures, compressor shutdowns, and HVAC system interruptions all translate into measurable production losses and, in regulated industries, potential compliance exposure. Stocking the 1336T-MCB-SP51B as a pre-positioned spare eliminates the lead-time risk that comes with sourcing critical boards reactively during an emergency shutdown — a risk that is especially acute for legacy drive platforms where component availability on the open market is increasingly constrained.

Critical Technical Specs Table

Preventive Maintenance Strategy

A robust preventive maintenance program for any facility running Allen-Bradley 1336 PLUS II drives must treat the 1336T-MCB-SP51B main control board as a Tier-1 critical spare — meaning at least one unit should be on-hand before a fault occurs, not after. During scheduled shutdowns or annual drive inspections, maintenance engineers should use the opportunity to inspect not only the control board but the entire drive assembly for signs of thermal stress, capacitor aging, and connector corrosion.

When performing a control cabinet inspection on a 1336 PLUS II system, it is equally important to evaluate the condition of the 1336 PLUS II power interface board and the gate driver board, as these components work in close electrical coordination with the MCB. A degraded gate driver can produce fault codes that mimic MCB failures, leading to unnecessary board replacements if not properly diagnosed. Similarly, any installed SCANport communication adapter — such as the 1203-GU6 or 1203-USB — and the 1336-MOD-HC2 human interface module should be inspected for firmware compatibility and physical connector integrity during the same maintenance window.

Beyond the drive itself, a comprehensive preventive maintenance checklist for the surrounding electrical circuit should include inspection of the input line reactor and output load reactor to protect the drive from voltage spikes and harmonic distortion. The dynamic braking resistor module — commonly used in high-inertia load applications such as centrifuges, large fans, and hoists — should be tested for resistance drift and thermal damage. Facilities relying on 1336 PLUS II drives for pump or compressor control should also verify the condition of pressure transducer signal cables and analog I/O wiring at the drive’s terminal block, as signal noise or loose terminations are a frequent source of nuisance faults that are often misdiagnosed as MCB failures.

For plants with aging control infrastructure, it is advisable to maintain a buffer stock of 24VDC control power supply modules, surge protection devices (SPDs) at the drive input, and replacement cooling fans for the drive enclosure. Fan failure is one of the leading causes of thermal shutdown in 1336 PLUS II drives and is frequently overlooked in spare parts planning. Pairing the 1336T-MCB-SP51B with a pre-stocked cooling fan and a set of input fuse modules creates a complete rapid-response spare kit capable of restoring a failed drive to full operation within a single maintenance shift — dramatically reducing mean time to repair (MTTR) and protecting production continuity.

Strategic Replacement Solutions

The Allen-Bradley 1336 PLUS II series has been in service at industrial facilities worldwide for decades. While Rockwell Automation has transitioned its current drive portfolio toward the PowerFlex 400, PowerFlex 525, and PowerFlex 755 platforms, many plants continue to operate 1336 PLUS II drives as part of legacy control systems not scheduled for full replacement. In these environments, sourcing original spare boards like the 1336T-MCB-SP51B is the most cost-effective strategy for extending the operational life of existing drive assets — without the capital expenditure and re-engineering effort required for a full drive upgrade or system migration.

Replacing a failed main control board with a verified original unit preserves the drive’s existing parameter configuration, communication settings, and PLC integration — eliminating the need to reprogram the drive from scratch or reconfigure the connected Allen-Bradley controller (such as a ControlLogix or CompactLogix PLC) after the repair. This is particularly valuable in facilities where original drive configuration documentation is incomplete or unavailable, as a board swap restores the drive to its last known operating state without requiring a full recommissioning procedure.

For maintenance teams managing a mixed fleet of older and newer drives, the 1336T-MCB-SP51B also serves as a benchmark component for cross-training technicians on drive architecture fundamentals. Understanding how the MCB interfaces with the power section, I/O terminals, and communication network provides a transferable skill set applicable to newer Rockwell drive platforms. Investing in original spare boards rather than attempting field repairs on damaged control electronics reduces the risk of secondary failures caused by improper component-level rework and ensures the repaired drive meets its original performance specifications — a critical consideration for facilities operating under ISO 9001 or industry-specific quality management frameworks.

Support FAQ

Q1: Is the 1336T-MCB-SP51B compatible with all horsepower ratings of the 1336 PLUS II drive?
The 1336T-MCB-SP51B is designed for the 1336 PLUS II series. Compatibility with specific horsepower ratings and firmware revisions should be verified against your drive’s nameplate and existing firmware version before installation. Our technical team can assist with compatibility confirmation prior to purchase — contact us at [email protected].

Q2: What pre-shipment testing is performed on this board?
Every 1336T-MCB-SP51B unit undergoes full functional testing before dispatch to verify board integrity and basic operational parameters. Units are inspected for physical damage, connector condition, and component integrity. A 12-month warranty is provided from the date of purchase, covering manufacturing defects and functional failures under normal operating conditions.

Q3: How should I manage spare board inventory for a facility with multiple 1336 PLUS II drives?
For facilities operating three or more 1336 PLUS II drives, we recommend maintaining a minimum of one 1336T-MCB-SP51B in stock at all times. For critical production lines where drive failure causes immediate line stoppage, a 1:3 to 1:5 spare ratio (one board per three to five drives) is a widely adopted industry standard. Pairing the MCB spare with a pre-stocked cooling fan and input fuse set further reduces MTTR and strengthens your overall spare parts lifecycle strategy.
