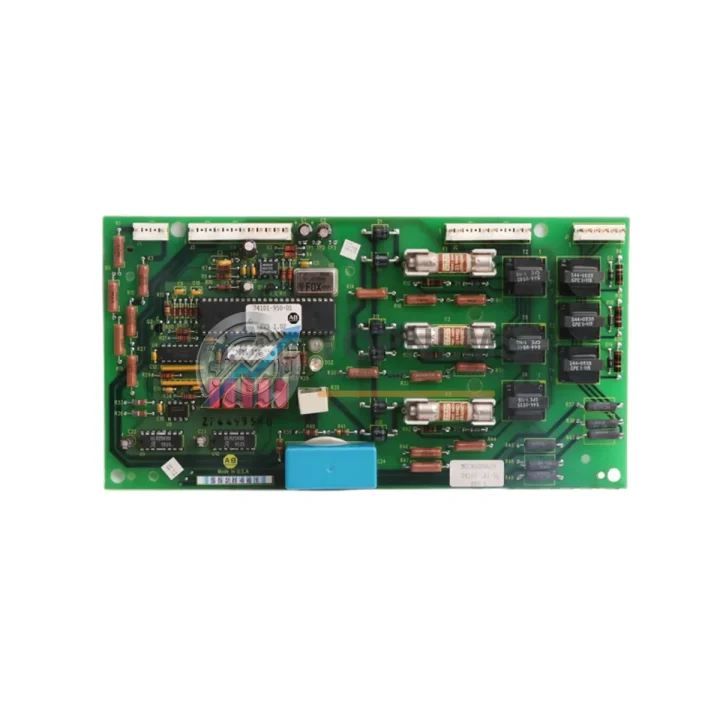

Allen-Bradley 1336-PB-SP6C Ruggedized Precharge Module

Product Overview

Allen-Bradley 1336-PB-SP6C Ruggedized Precharge Module: Industrial Resilience for Harsh Drive Environments

The Allen-Bradley 1336-PB-SP6C (Part No. 74101-181-51) is a factory-specification DC Bus Precharge Control Board engineered for the 1336 PLUS series of AC variable frequency drives. Designed to operate reliably in the demanding electrical and thermal conditions found across heavy industry, this precharge board governs the controlled ramp-up of DC bus voltage at drive startup — a critical protection function that prevents inrush current damage to the drive’s power bridge, capacitor bank, and connected motor circuits. In continuous production environments where unplanned downtime carries significant cost, the integrity of this component directly determines the operational availability of the entire drive system.

Industrial sites — including petrochemical plants, mining operations, steel mills, water treatment facilities, and power generation stations — subject drive cabinets to a combination of stressors that standard commercial electronics cannot reliably withstand. Elevated ambient temperatures, humidity ingress, airborne conductive dust, mechanical vibration from rotating machinery, and high-frequency electromagnetic interference from adjacent inverters and motor cables all degrade electronic assemblies over time. The 1336-PB-SP6C is built to Allen-Bradley’s industrial-grade manufacturing standards, with conformal-coated PCB surfaces, robust solder joints, and component selection rated for the thermal cycling and vibration profiles typical of 1336 PLUS drive enclosures. This makes it a dependable long-term replacement for aging or failed precharge assemblies in the field.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1336-PB-SP6C does not operate in isolation — it is one element within a layered drive protection and control architecture. In a properly configured 1336 PLUS installation, the precharge board works in coordination with the drive’s main control board (such as the 1336-BRF-SP1A or equivalent interface board), the gate driver assembly, and the power module stack to ensure that DC bus capacitors reach operating voltage safely before the IGBT bridge is enabled. Failures in the precharge circuit are among the most common causes of drive fault codes related to bus undervoltage and precharge timeout, making this board a high-priority spare in any maintenance inventory.

In control cabinet configurations where the 1336 PLUS drive is integrated with a Rockwell Automation PLC — such as the ControlLogix 1756 series or the CompactLogix 1769 series — the drive’s operational status is typically monitored via DeviceNet or Remote I/O communication modules. Maintaining a functional precharge board ensures that the drive can respond correctly to start commands issued from the PLC, preventing nuisance faults that disrupt production sequencing. Similarly, in systems using 1336 PLUS drives alongside Allen-Bradley 1492 terminal blocks and 1492-IFM interface modules for I/O wiring, a reliable precharge cycle protects the integrity of the entire field wiring network by preventing voltage transients at startup.

For facilities running multiple 1336 PLUS drives in parallel — common in pump stations, compressor arrays, and conveyor systems — maintaining a stock of critical spare boards including the 1336-PB-SP6C, along with the 1336-MOD-L2E Ethernet communication module and 1336-BRF-SP1A control board, significantly reduces mean time to repair (MTTR) when a drive fault occurs. Pairing the drive system with Allen-Bradley 1606-XLP industrial power supplies and 700-series safety relays further strengthens the overall system’s resilience against power quality events and emergency stop scenarios.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, 1336 PLUS drives control submersible pump motors, gas compressors, and pipeline booster stations — environments where ambient temperatures can exceed 50°C and where explosive atmosphere classifications demand that all drive enclosures maintain their protective integrity. The precharge board’s role in preventing capacitor inrush stress is especially critical in these settings, where a drive failure can halt production and trigger costly safety shutdowns.

In mining and mineral processing, drives controlling ball mills, conveyor belts, and slurry pumps are subjected to continuous vibration and heavy dust loading. The 1336 PLUS platform’s robust enclosure design, supported by properly functioning internal boards like the 1336-PB-SP6C, allows these drives to maintain uptime targets in environments where replacement lead times for imported components can stretch to weeks. Holding verified spare boards on-site is a standard practice among reliability engineers at major mining operations globally.

Power generation facilities — including thermal, hydro, and renewable plants — rely on 1336 PLUS drives for auxiliary systems such as cooling fans, feedwater pumps, and fuel handling conveyors. In these applications, the precharge function is critical during black-start sequences and after grid disturbances, where drives must restart cleanly without imposing additional stress on already-strained electrical infrastructure. Water treatment and wastewater facilities similarly depend on reliable drive operation for aeration blowers and lift station pumps, where continuous operation is a regulatory requirement.

In steel and aluminum smelting operations, drives are exposed to radiated heat from furnaces, electromagnetic interference from arc furnaces and induction heaters, and mechanical shock from heavy rolling equipment. The 1336 PLUS drive’s industrial-grade construction, with a properly maintained precharge board, provides the electrical isolation and controlled startup behavior necessary to protect both the drive investment and the connected motor assets in these extreme conditions.

Security & Quality FAQ

Q: What warranty coverage is provided with the 1336-PB-SP6C?
A: Every 1336-PB-SP6C shipped by TOPNLMS carries a 12-month warranty from the date of shipment. If the board exhibits any functional defect within the warranty period under normal operating conditions, we will arrange replacement or repair at no additional cost. Our warranty terms are documented and provided with each shipment.

Q: How is the board tested before shipment?
A: Each unit undergoes a pre-shipment functional inspection covering visual examination for physical damage, solder joint integrity, component presence, and where applicable, powered functional verification. We do not ship boards that show signs of prior repair, burn damage, or component substitution unless explicitly disclosed. Boards are packaged in anti-static materials with appropriate cushioning for international transit.

Q: Is this board compatible with all 1336 PLUS drive frame sizes?
A: The 1336-PB-SP6C with assembly number 74101-181-51 is a specific precharge board variant for the 1336 PLUS series. Compatibility depends on the specific drive frame size and revision. We recommend cross-referencing your drive’s existing board part number and assembly number before ordering. Our technical team can assist with compatibility verification — contact us at [email protected] with your drive nameplate data.

Q: Can TOPNLMS support long-term or repeat supply of this component?
A: Yes. TOPNLMS maintains ongoing sourcing relationships for Allen-Bradley 1336 PLUS series spare parts, including precharge boards, control boards, and communication modules. For facilities with multiple drives or planned maintenance schedules, we can discuss blanket order arrangements and reserved stock agreements to ensure supply continuity. Contact us to discuss your site’s specific requirements.
