Allen-Bradley 1336-BDB-SP17C Ruggedized Drive Control Module

Product Overview

Allen-Bradley 1336-BDB-SP17C Ruggedized Drive Control Module: Industrial Resilience for Harsh Environments

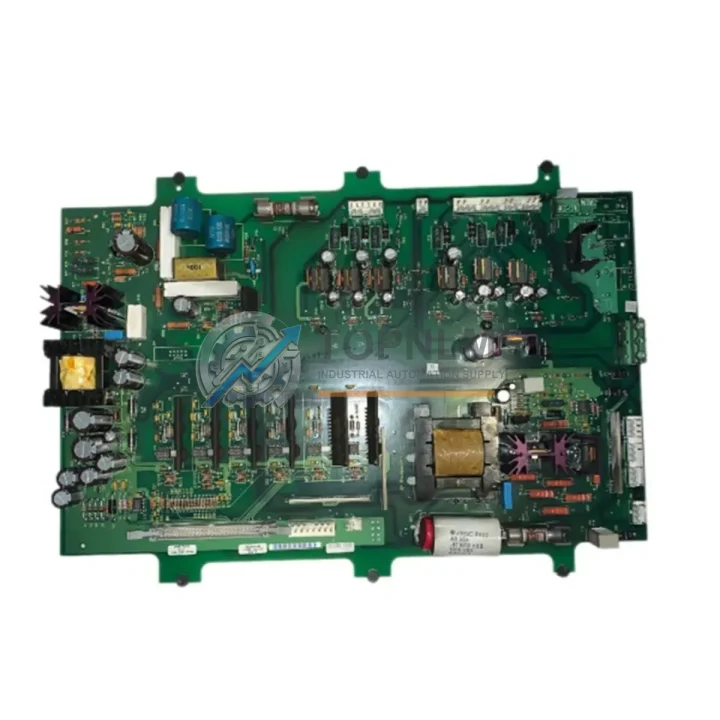

The Allen-Bradley 1336-BDB-SP17C (Part No. 74101-482-51) is a factory-grade drive control PC board engineered for the 1336 PLUS Series AC variable frequency drive. Designed to operate reliably under the most demanding industrial conditions — including high ambient temperatures, elevated humidity, airborne particulates, continuous mechanical vibration, and intense electromagnetic interference — this board is a mission-critical component for facilities where unplanned downtime is not an option.

Whether deployed in a sealed control cabinet on a petrochemical platform, a dusty mining conveyor system, or a high-cycle automotive stamping line, the 1336-BDB-SP17C delivers consistent gate-drive signal integrity, closed-loop speed regulation, and fault-diagnostic communication that keeps your 1336 PLUS drive performing within specification shift after shift.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1336-BDB-SP17C does not operate in isolation — it is the intelligence layer within a broader drive system that depends on the coordinated performance of multiple components. In a properly configured 1336 PLUS installation, this control board interfaces directly with the 1336-MOD-L2E SCANport communication adapter, enabling real-time parameter monitoring and remote fault acknowledgment over DeviceNet or EtherNet/IP networks. Upstream, the drive receives its speed reference from a 1336-BRF-SP5A regulator board, while the power conversion stage relies on a matched 1336-BDB-SP2A precharge and base drive board to manage inrush current during startup.

For installations requiring coordinated motion across multiple axes, the 1336-BDB-SP17C works alongside Allen-Bradley 1756-L73 ControlLogix PAC controllers and 1756-IB16 digital input modules to execute interlocked start/stop sequences and safety-rated E-stop logic. In high-vibration environments such as crusher drives or mill motors, pairing this board with a 1336-BDB-SP14A power interface board and properly rated 1492-J terminal blocks in the control cabinet ensures that signal wiring remains secure and noise-free under continuous mechanical stress.

Where harmonic distortion is a concern — common in facilities running multiple large VFDs simultaneously — the system benefits from an upstream 1321-3R line reactor and a 1336-BDB-SP8A EMC filter board to suppress conducted emissions and protect the control board’s analog reference circuits. For safety-critical applications requiring SIL 2 compliance, the drive system can be integrated with a 440C-CR30 safety relay module to provide certified safe-torque-off (STO) functionality without requiring a dedicated safety PLC.

Application in Critical Infrastructure

In oil and gas upstream operations, the 1336-BDB-SP17C is commonly found controlling submersible pump drives and wellhead compressor motors where ambient temperatures can exceed 45 °C and salt-laden air accelerates corrosion on unprotected electronics. Its conformal-coated PCB construction and robust signal isolation make it a preferred replacement board for aging 1336 PLUS drives that continue to serve reliably in these environments long past their original design life.

In underground mining, where coal dust, silica particulates, and continuous vibration from blasting and haulage equipment create extreme stress on drive electronics, the 1336-BDB-SP17C’s proven gate-drive architecture maintains precise motor speed control for conveyor belts, ventilation fans, and hoisting systems — applications where a control board failure can halt production for an entire shift or trigger a safety incident.

At water and wastewater treatment facilities, this board supports variable-speed pump control for raw water intake, aeration blowers, and effluent discharge systems. The ability to maintain stable closed-loop PID control across wide flow ranges reduces energy consumption and extends pump mechanical life, directly supporting the facility’s operational efficiency targets.

In metals and heavy manufacturing — rolling mills, arc furnace auxiliaries, and continuous casting lines — the 1336-BDB-SP17C provides the precise torque and speed regulation required for tension control and synchronization between drive sections. Its compatibility with the broader 1336 PLUS ecosystem means that maintenance teams can replace a failed control board without requiring a full drive replacement, dramatically reducing both parts cost and mean time to repair (MTTR).

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All 1336-BDB-SP17C units shipped by TOPNLMS carry a 12-month warranty from the date of shipment. This covers manufacturing defects, functional failures under normal operating conditions, and early-life failures identified during commissioning. In the event of a warranty claim, we provide a replacement unit or full refund after fault verification. Our warranty process is documented and traceable — every unit is logged with its serial number, test date, and shipping record.

Q2: How is each board tested before shipment?
Every 1336-BDB-SP17C undergoes a multi-stage pre-shipment inspection: visual inspection for physical damage, component-level continuity testing, and functional bench testing on a compatible 1336 PLUS drive frame where applicable. Boards are anti-static packaged with desiccant and shipped in rigid protective cartons to prevent transit damage. A test report is available upon request for critical infrastructure procurement.

Q3: Is this board compatible with both 1336 PLUS and 1336 PLUS II drives?
The 1336-BDB-SP17C (74101-482-51) is specifically designed for the 1336 PLUS series. Compatibility with 1336 PLUS II variants depends on the specific drive catalog number and firmware revision. We recommend providing your full drive nameplate data — including catalog number, series letter, and firmware version — when placing an order, so our technical team can confirm fitment before shipment.

Q4: Can TOPNLMS support long-term or repeat supply of this part?
Yes. TOPNLMS maintains dedicated inventory of Allen-Bradley 1336 series spare parts to support facilities with ongoing maintenance programs. We can accommodate blanket purchase orders, scheduled releases, and emergency same-day dispatch for critical breakdowns. For OEM integrators and MRO distributors requiring consistent supply, we offer priority allocation agreements. Contact our team to discuss your annual volume requirements and lead-time expectations.
