Allen-Bradley 1305-KBA09 Original Industrial Spare 1305 Compatible

Product Overview

Allen-Bradley 1305-KBA09 Original Industrial Spare 1305 Compatible: System Stability & Industrial Spare Parts Maintenance Value

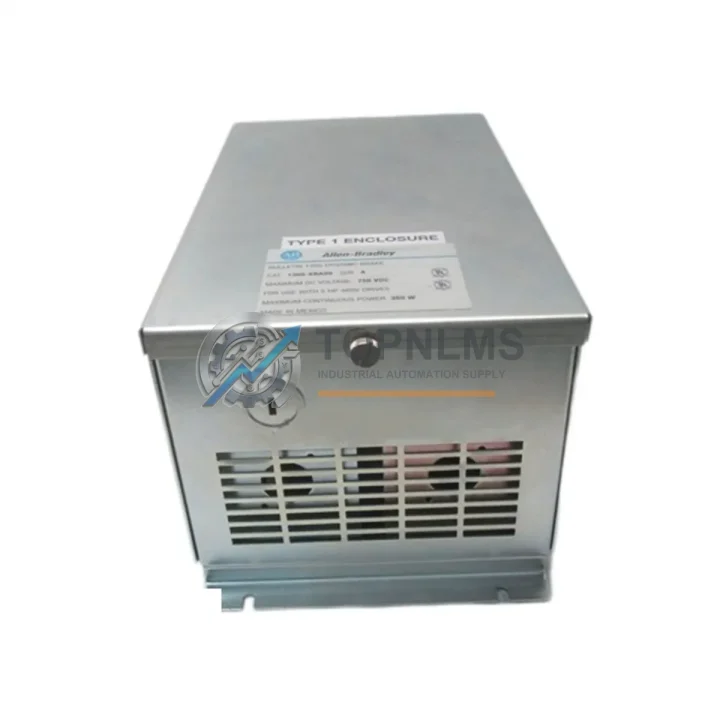

The Allen-Bradley 1305-KBA09 Dynamic Braking Kit is a factory-original spare component engineered specifically for the 1305 Series AC variable-frequency drives. In industrial environments where motor deceleration control is critical — such as conveyor systems, hoists, compressors, and packaging lines — the dynamic braking kit plays a decisive role in dissipating regenerative energy safely and protecting the drive from overvoltage faults. Sourcing an original 1305-KBA09 ensures full electrical compatibility, correct resistor ratings, and compliance with Allen-Bradley’s drive protection architecture, eliminating the risk of nuisance tripping or premature drive failure that often accompanies non-OEM substitutes.

For maintenance engineers managing aging 1305 Series installations, the 1305-KBA09 represents a cost-effective path to extending system life without a full drive replacement. The 1305 platform remains widely deployed across North American and Asian manufacturing facilities, and original spare availability is a key factor in sustaining uptime for these legacy systems. Stocking this braking kit as a critical spare reduces mean time to repair (MTTR) and supports a proactive maintenance posture rather than a reactive one.

Critical Technical Specs

Preventive Maintenance Strategy

A dynamic braking kit replacement should never be treated as an isolated event. When a 1305-KBA09 is flagged for replacement — whether due to resistor degradation, thermal discoloration, or a drive overvoltage fault — it signals that the broader drive system deserves a comprehensive inspection. Experienced maintenance teams use this opportunity to audit the full control cabinet and associated electrical circuit.

Begin by inspecting the 1305 Series drive’s input power module and verifying that the DC bus capacitors show no signs of bulging or electrolyte leakage, as capacitor aging is a common co-failure mode in drives of similar vintage. Check the 1305-BA drive control board for corrosion or heat stress on solder joints, particularly around the gate driver section. At the same time, verify the condition of the input line reactor or EMC filter upstream of the drive — a degraded line reactor can cause voltage spikes that accelerate braking resistor wear.

On the motor side, inspect the motor thermal overload relay and confirm that the motor’s insulation resistance is within acceptable limits using a megohmmeter. If the system uses a 1305 Series remote operator interface or keypad module, check its ribbon cable and connector for intermittent contact, which can cause spurious fault codes that mimic braking circuit issues. Review the 24VDC control power supply feeding the PLC I/O and drive enable circuit — an unstable control voltage is a frequent root cause of unexplained drive trips.

For facilities running multiple 1305 drives in parallel or in multi-axis configurations, it is advisable to simultaneously audit the terminal block assemblies and control wiring within the cabinet. Loose or oxidized terminals on the braking resistor circuit are a leading cause of intermittent braking faults. Consider stocking a set of spare I/O terminal blocks and ferrules alongside the 1305-KBA09 to enable rapid wiring restoration during emergency repairs.

If the facility also operates PowerFlex 40 or PowerFlex 4M drives in adjacent production zones, this maintenance window is an ideal time to cross-check their braking resistor status as well, since these platforms share similar regenerative braking principles and are common successors to 1305 Series installations. Likewise, any 1336 PLUS II or 1336 IMPACT Series drives in the same facility should be included in the preventive maintenance schedule, as their braking modules are subject to comparable thermal cycling stress.

Strategic Replacement Solutions

The 1305-KBA09 is the correct OEM replacement for facilities committed to maintaining the original 1305 Series drive architecture. Unlike aftermarket alternatives, the original kit preserves the drive’s UL listing integrity and ensures that the braking circuit operates within the thermal and electrical parameters validated by Rockwell Automation’s engineering team. This is particularly important in regulated industries — food processing, pharmaceutical manufacturing, and utilities — where equipment certification traceability is required for audit compliance.

For sites where a full drive upgrade is being planned but cannot be executed immediately due to budget cycles or production schedules, the 1305-KBA09 provides a bridge solution: restoring the existing drive to full operational status while the capital project is approved and scheduled. This approach minimizes unplanned downtime and allows maintenance teams to plan the drive migration on their own timeline rather than being forced into an emergency replacement under production pressure.

When the eventual migration to a newer platform such as the PowerFlex 525 or PowerFlex 527 is executed, the 1305-KBA09 can serve as a reference point for sizing the replacement drive’s braking resistor option, ensuring continuity of the deceleration performance profile that the process requires. Documenting the original braking kit specifications also supports the commissioning engineer in configuring the new drive’s deceleration ramp parameters correctly from day one.

Support FAQ

Q1: Is the 1305-KBA09 compatible with all frame sizes of the 1305 Series AC drive?
The 1305-KBA09 is designed for specific frame sizes within the 1305 Series. Compatibility depends on the drive’s horsepower rating and frame designation. Please reference the 1305 Series User Manual (Publication 1305-UM001) or contact our technical team with your drive’s full catalog number to confirm fitment before ordering.

Q2: What pre-shipment testing is performed on the 1305-KBA09?
Each unit undergoes a functional inspection including visual examination for physical damage, continuity verification of the braking resistor circuit, and confirmation of correct part number labeling before dispatch. Units are shipped in original or equivalent protective packaging to prevent transit damage.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events beyond the drive’s rated input range, or physical mishandling. Warranty claims are processed promptly with replacement or refund options.

Q4: Can I stock the 1305-KBA09 as a long-term spare without degradation concerns?
Yes. When stored in a dry, temperature-controlled environment (typically 0–40°C, <95% RH non-condensing) and kept in its original sealed packaging, the 1305-KBA09 has a shelf life suitable for multi-year strategic sparing. We recommend periodic visual inspection of stored units annually and rotation of stock on a first-in, first-out basis.
