Allen-Bradley 1305-BA01A-HA2 Ruggedized VFD Drive

Product Overview

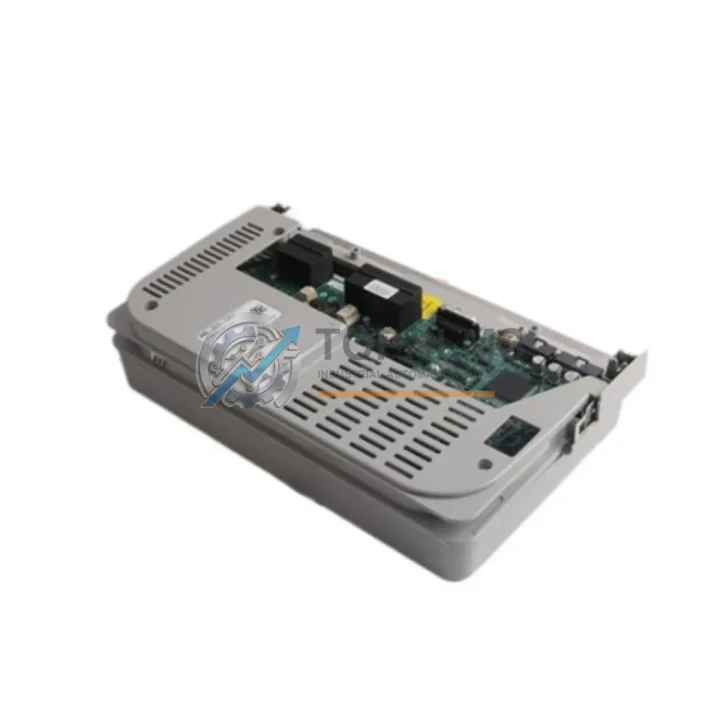

Allen-Bradley 1305-BA01A-HA2 Ruggedized VFD Drive: Industrial Resilience in Harsh Environments

The Allen-Bradley 1305-BA01A-HA2 is a 1HP, 200–240V, V/Hz-controlled AC Variable Frequency Drive engineered for continuous, reliable operation in the most demanding industrial environments. Part of Rockwell Automation’s proven 1305 Series, this drive is purpose-built to withstand the thermal stress, vibration, electromagnetic interference, and airborne contaminants that routinely compromise lesser drives in heavy industrial settings. Whether deployed on a continuous production line, inside a sealed control cabinet in a petrochemical plant, or integrated into a motor control center on a mining site, the 1305-BA01A-HA2 delivers consistent, stable motor control without compromise.

At TOPNLMS, every unit of the 1305-BA01A-HA2 is sourced through verified supply channels, individually inspected, and function-tested prior to dispatch. We maintain ready stock to support urgent replacement and MRO procurement needs, with a 12-month quality warranty covering all shipped units.

Rugged Specifications Table

Comprehensive Protection Solutions

The 1305-BA01A-HA2 does not operate in isolation — it is a critical node within a broader industrial control architecture. In a typical heavy-industry control cabinet, this drive works in concert with Allen-Bradley 1756-IA16 ControlLogix digital input modules and 1756-OA16 output modules to receive and execute speed commands from the PLC. The drive’s DeviceNet-compatible interface allows seamless integration with a 1756-DNB DeviceNet Scanner, enabling real-time diagnostics and parameter monitoring without interrupting production.

For motor branch circuit protection, the 1305-BA01A-HA2 is typically paired with Allen-Bradley 140M Motor Protection Circuit Breakers, which provide coordinated short-circuit and overload protection upstream of the drive. In applications where power quality is a concern — particularly in facilities with large inductive loads or frequent switching — an Allen-Bradley 1321-3R line reactor is recommended on the input side to reduce harmonic distortion and protect the drive’s rectifier stage from voltage spikes.

On the safety side, integration with a 440C-CR30 Safety Relay or a 1791DS-IB4XOB4 CompactBlock Guard I/O safety module allows the drive to participate in a machine safety circuit, enabling safe torque-off (STO) functionality in compliance with IEC 62061 and ISO 13849 requirements. This is particularly important in applications where personnel may access the driven machinery during maintenance windows.

For distributed I/O expansion within the same control panel, the 1734 POINT I/O modules — including analog input modules such as the 1734-IE4C — provide the signal conditioning needed to feed process variables (temperature, pressure, flow) back to the PLC, allowing the 1305-BA01A-HA2 to respond dynamically to process demands. Power distribution within the cabinet is typically handled by an Allen-Bradley 1606-XLP power supply, which provides stable 24VDC rail power to the I/O modules, safety relays, and HMI panels even under fluctuating input conditions.

Where remote monitoring is required, the drive’s data can be surfaced through a PanelView Plus 7 HMI terminal running FactoryTalk View ME, giving operators a real-time view of drive status, fault history, and motor speed — all without requiring a laptop or handheld programmer on the floor.

Application in Critical Infrastructure

The Allen-Bradley 1305-BA01A-HA2 has established a strong track record across critical infrastructure sectors where unplanned downtime carries severe operational and financial consequences.

Oil & Gas: In upstream and midstream facilities, the 1305-BA01A-HA2 controls pump and compressor motors in environments characterized by explosive atmospheres, wide temperature swings, and persistent vibration from rotating machinery. When installed inside a purged and pressurized enclosure (NEMA 4X or Ex-rated cabinet), the drive provides reliable variable-speed control of transfer pumps and cooling fans in Zone 1 and Zone 2 classified areas.

Mining & Mineral Processing: Underground and surface mining operations subject drives to extreme dust loading, mechanical shock, and high ambient temperatures. The 1305-BA01A-HA2’s robust fault protection — including instantaneous overcurrent trip and thermal overload modeling — prevents catastrophic motor failures on conveyor drives, crusher feed systems, and ventilation fans, where a single unplanned stop can halt an entire production shift.

Water & Wastewater Treatment: Municipal and industrial water treatment plants rely on variable-speed pump control to optimize energy consumption and maintain precise flow rates. The 1305-BA01A-HA2’s V/Hz control mode is well-suited to centrifugal pump applications, delivering smooth acceleration and deceleration profiles that reduce water hammer and extend valve and pipe service life.

Power Generation & Utilities: In power plant auxiliary systems — cooling water pumps, fuel oil transfer pumps, and forced-draft fan drives — the 1305-BA01A-HA2 provides the speed regulation needed to match load demand while protecting the motor from the thermal and electrical stresses of continuous duty operation.

Metallurgy & Heavy Manufacturing: Steel mills, aluminum smelters, and heavy fabrication facilities operate in environments with intense electromagnetic interference from arc furnaces and induction heaters. The 1305-BA01A-HA2’s built-in EMI filter and CE-compliant design ensure stable operation even in high-EMI zones, maintaining precise speed control on roller tables, cooling bed drives, and material handling conveyors.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All 1305-BA01A-HA2 units shipped by TOPNLMS carry a 12-month warranty from the date of delivery. Coverage includes manufacturing defects, functional failures under normal operating conditions, and component-level faults identified during the warranty period. In the event of a warranty claim, TOPNLMS will arrange replacement or repair at no additional cost to the buyer. Each unit is individually tested for power-on functionality, output voltage balance, and fault response before dispatch.

Q2: How do you verify compatibility with my existing Allen-Bradley system before shipment?
The 1305-BA01A-HA2 is a direct form-fit-function replacement within the Allen-Bradley 1305 Series. Our technical team cross-references your existing drive’s nameplate data — input voltage, output power, and control mode — against the unit’s verified specifications before confirming the order. For integration with ControlLogix or CompactLogix PLC platforms, we can advise on the appropriate DeviceNet or DPI interface module to ensure seamless communication without requiring firmware changes to the host controller.

Q3: What pre-shipment testing is performed on each unit?
Every 1305-BA01A-HA2 undergoes a structured pre-shipment inspection protocol: visual inspection for physical damage, power-on test with load simulation, output frequency verification across the operating range, fault injection testing (overcurrent, overvoltage, overtemperature), and parameter reset to factory defaults. Units that do not pass all test stages are quarantined and not shipped. A test record is available upon request for quality-critical procurement.

Q4: Can TOPNLMS support long-term or repeat supply of the 1305-BA01A-HA2 for MRO programs?
Yes. TOPNLMS maintains standing inventory of the 1305-BA01A-HA2 and other 1305 Series variants to support MRO (Maintenance, Repair & Operations) programs for industrial facilities with ongoing replacement needs. We can accommodate blanket purchase orders, scheduled releases, and emergency spot procurement with same-day or next-day dispatch for in-stock units. For facilities managing a fleet of Allen-Bradley drives across multiple production lines, we recommend establishing a preferred supplier agreement to ensure priority allocation and consistent lead times.
