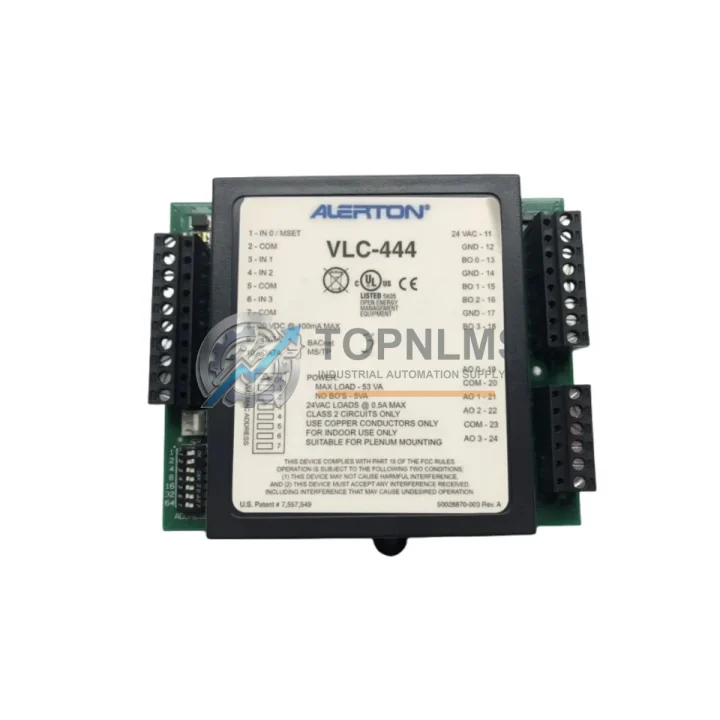

ALERTON VLC-444 Replacement Upgrade Solution for Envision

Product Overview

ALERTON VLC-444 Replacement & Upgrade Solution for Envision Series: Smooth Migration, Zero Compromise

Upgrading or replacing an ALERTON VLC-444 Programmable BACnet Field Controller doesn’t have to mean extended downtime, rewiring headaches, or costly system overhauls. The VLC-444 is a core component of the Alerton Envision Series building automation platform, widely deployed in HVAC control, VAV terminal unit management, and multi-zone climate systems across commercial and industrial facilities. As the VLC-444 approaches end-of-life or becomes increasingly difficult to source, facility managers and system integrators are seeking a reliable, drop-in-compatible replacement that preserves existing wiring infrastructure, BACnet MS/TP communication topology, and field-programmed logic.

TOPNLMS supplies verified ALERTON VLC-444 units — both new-old-stock and functionally equivalent replacement modules — with full pre-shipment testing, 12-month warranty coverage, and technical support for migration planning. Whether you are replacing a failed unit in an emergency or executing a planned lifecycle upgrade across multiple air handling units, our inventory and engineering support are structured to minimize your project risk.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful VLC-444 migration rarely involves a single module swap. In practice, field engineers replacing an Alerton VLC-444 will also evaluate the surrounding system architecture to ensure the entire control loop performs reliably after the upgrade. During commissioning, it is common to simultaneously address the Alerton BCM-ETH Ethernet Communication Module, which bridges the MS/TP field bus to the IP backbone — particularly important when the building management system (BMS) uses BACnet/IP at the supervisory layer while field devices remain on RS-485 trunk wiring.

For facilities running the Alerton Envision platform with multiple VAV boxes, the Alerton VLC-853 Multi-Zone Field Controller is frequently encountered on the same RS-485 trunk as the VLC-444. Ensuring both controllers share the same firmware revision and BACnet device instance numbering scheme is essential before re-enabling the trunk after a module replacement. Similarly, the Alerton BCM-WEB Web Server Module may require a device database refresh once the replacement VLC-444 is online and its BACnet objects are re-registered on the network.

On the wiring side, technicians often take the opportunity to inspect and replace Phoenix Contact MKDS terminal blocks or equivalent screw-clamp terminal strips within the control cabinet, particularly on older installations where terminal corrosion or loose connections may have contributed to the original controller failure. Proper torque on field wiring terminals is a critical step that is frequently overlooked during emergency replacements.

Power supply integrity is another common failure point. If the existing 24 VAC Class 2 transformer serving the VLC-444 shows signs of overloading — indicated by voltage sag below 21.6 VAC under load — it should be replaced concurrently with the controller to prevent premature failure of the new unit. A dedicated transformer per controller is the recommended architecture for new installations.

For sites where the VLC-444 interfaces with variable frequency drives (VFDs) via 0–10V analog output, verifying the VFD analog input scaling and signal ground isolation is a mandatory commissioning step. Signal ground loops between the controller and the VFD can introduce noise that causes erratic speed control. An inline signal isolator module (such as a DIN-rail-mounted 0–10V loop isolator) resolves this issue without modifying the existing wiring topology.

Finally, for facilities planning a broader migration from legacy Alerton hardware to a more current BACnet/IP architecture, the Alerton IBEX Field Controller family represents the natural upgrade path. The IBEX series supports native BACnet/IP, eliminating the MS/TP trunk entirely and enabling direct Ethernet connectivity from each field controller to the IP network — a significant simplification for large campuses with complex trunk topologies.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing the VLC-444?
A: Yes. The VLC-444 replacement uses identical terminal assignments for universal inputs, binary outputs, and analog outputs. Existing 18 AWG or 22 AWG field wiring can be reconnected directly to the replacement module without modification, provided wire labels are documented before removal.

Q: Do I need to reprogram the replacement controller from scratch?
A: No. If the original Alerton Compass project file is available, the program can be re-downloaded to the replacement VLC-444 via the RS-485 service port or through the BACnet MS/TP trunk using the Compass engineering workstation. If the project file is lost, TOPNLMS can assist with basic I/O mapping reconstruction based on the original sequence of operations documentation.

Q: Will the replacement VLC-444 appear correctly on the BACnet network without reconfiguration?
A: The BACnet Device Instance and MS/TP MAC address must be set to match the original unit before the replacement controller is placed online. This is done via the Alerton Compass tool or the onboard DIP switches, depending on the firmware version. Failure to match the original device instance will cause the BMS to report a new, unrecognized device rather than restoring the existing point mapping.

Q: What if the physical mounting space in the control cabinet is constrained?
A: The VLC-444 uses a standard DIN rail mounting footprint. The replacement module has identical physical dimensions, so no cabinet modification is required. If the cabinet also houses a 24 VAC transformer, terminal blocks, and an RS-485 repeater, ensure adequate clearance for heat dissipation around the new controller.

Q: Is the replacement compatible with Alerton’s EIKON graphical programming environment?
A: Yes. The replacement VLC-444 supports the same EIKON function block library used in the original unit. Existing graphical programs created in EIKON can be compiled and downloaded without modification, preserving all PID loops, schedules, and setpoint logic.

Q: How do I verify the replacement is functioning correctly after installation?
A: After power-up and program download, use the Alerton Compass diagnostic view to confirm all I/O points are reading correctly. Verify BACnet object values match expected engineering units, confirm the MS/TP token-passing is stable (no bus errors), and perform a functional test of each output by commanding it from the BMS supervisory level.

Warranty Assurance

Every ALERTON VLC-444 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a multi-point functional inspection that includes power-on verification, I/O channel continuity testing, BACnet MS/TP communication validation, and visual inspection for physical damage or component degradation.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period, subject to standard return merchandise authorization (RMA) procedures. Our technical support team is available to assist with installation questions, commissioning guidance, and compatibility verification before and after purchase.

For urgent replacement requirements — including emergency breakdowns where production or building operations are at risk — TOPNLMS maintains ready stock and offers expedited shipping from our Xiamen warehouse. Standard lead time for in-stock units is 3–5 business days to most international destinations, with DHL Express options available for next-day dispatch.

Procurement teams can request a formal quotation, certificate of conformance, or packing list documentation to support purchase order approval workflows. All units are shipped with original manufacturer packaging where available, or in anti-static protective packaging with individual serial number labeling.
