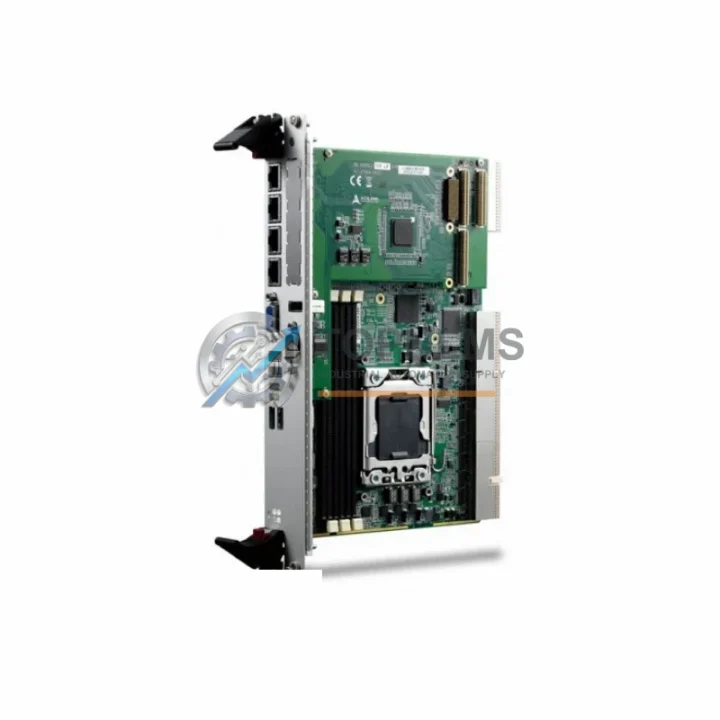

ADLink cPCI-6930D/2418/M6G Original Industrial Spare cPCI-6930 Compatible

Product Overview

ADLink cPCI-6930D/2418/M6G Original Industrial Spare cPCI-6930 Compatible: System Stability & Industrial Spare Part Maintenance Value

In high-availability industrial environments, the integrity of your CompactPCI backplane infrastructure is non-negotiable. The ADLink cPCI-6930D/2418/M6G is an original, factory-sourced single-board computer from ADLink’s proven cPCI-6930 Series, engineered for long-lifecycle deployment in demanding automation, telecommunications, defense, and process-control applications. Sourcing a verified original spare for this platform is one of the most impactful decisions a maintenance engineer can make — it eliminates firmware incompatibility risk, preserves BIOS-level system configuration, and ensures the replacement unit integrates seamlessly into an existing CompactPCI chassis without re-qualification overhead.

Unplanned downtime in industrial facilities carries significant operational cost. When a system controller fails, every hour of delay compounds production loss. Keeping a qualified spare of the cPCI-6930D/2418/M6G on the shelf — pre-tested, documented, and ready to swap — is the single most effective mitigation strategy for this class of failure. This unit ships fully tested against ADLink factory acceptance criteria, with a 12-month warranty covering functional defects, and is dispatched with full inspection documentation to support your maintenance records.

Critical Technical Specs

Preventive Maintenance Strategy

A CompactPCI system built around the cPCI-6930D/2418/M6G does not operate in isolation. It sits within a broader control architecture — chassis, backplane, power supply, I/O modules, and communication infrastructure — each of which has its own wear profile and replacement interval. A disciplined preventive maintenance program treats the SBC as the centerpiece of a system-level inspection, not a standalone component.

During scheduled downtime or annual cabinet inspections, maintenance teams should simultaneously evaluate the CompactPCI backplane for connector wear and signal integrity degradation, particularly on high-cycle slots. The cPCI chassis power supply module — typically a 24 V or 48 V DC input unit — should be load-tested; a marginal PSU is a leading cause of intermittent SBC resets that are often misdiagnosed as board failures. If the system uses a cPCI-6910 or cPCI-6920 Series peripheral slot card for additional I/O expansion, inspect those boards for capacitor aging and connector oxidation at the same interval.

On the communication side, the RS-232/RS-485 serial interface cables connecting the SBC to field devices — PLCs, drives, or SCADA RTUs — should be inspected for insulation cracking and connector corrosion, especially in high-vibration or high-humidity environments. Similarly, the GbE patch cables and managed switch ports serving the SBC’s dual LAN interfaces warrant inspection; a degraded cable can cause intermittent packet loss that manifests as application-layer instability rather than a clear hardware fault.

For systems running legacy SCADA or HMI software, the CompactFlash storage card installed in the cPCI-6930D/2418/M6G is a critical wear item. Industrial-grade CF cards have defined write-endurance limits; proactive replacement on a 3–5 year cycle — with a verified image backup — prevents unplanned OS corruption failures. If the system interfaces with a signal isolation module or analog I/O board in the same chassis, calibration drift should be verified during the same maintenance window. Finally, inspect the chassis fan tray and filter assembly: thermal management directly affects SBC longevity, and a blocked filter can raise internal temperatures by 10–15°C, accelerating component aging across every board in the chassis.

Stocking a spare cPCI-6930D/2418/M6G alongside a spare CompactFlash image card, a tested PSU module, and a set of serial and LAN interface cables gives your maintenance team a complete rapid-recovery kit — enabling a full system restoration in under two hours rather than waiting days for emergency procurement.

Strategic Replacement Solutions

The cPCI-6930 Series was introduced during a period when CompactPCI was the dominant open-standard platform for industrial computing. Many facilities still operate cPCI-6930-based systems as embedded controllers, data concentrators, or communication gateways — and have no near-term plans to migrate, given the cost and re-qualification burden of platform replacement. For these sites, sourcing original spare boards is the only viable strategy to extend system life without architectural change.

The cPCI-6930D/2418/M6G variant is particularly valued because the /2418 suffix denotes a 24 V DC input configuration — common in railway, energy, and heavy industrial environments where 24 V DC bus power is standard — and the /M6G suffix indicates the dedicated graphics memory variant, required for applications running local HMI or visualization software directly on the SBC. Substituting a non-M6G or non-2418 variant risks display driver incompatibility or power input mismatch, making exact-SKU sourcing essential.

For facilities managing end-of-life ADLink cPCI-6930 systems, a phased spare-board strategy is recommended: acquire 1–2 units of the cPCI-6930D/2418/M6G now, while supply is available, to cover the remaining operational life of the installed base. This approach eliminates the risk of emergency procurement at premium cost during an unplanned outage — a scenario that becomes increasingly likely as original inventory in the secondary market tightens. Each unit supplied by TOPNLMS is tested prior to dispatch and ships with a 12-month warranty, giving procurement teams the documentation needed to justify the inventory investment.

Support FAQ

Q1: What does the 12-month warranty cover, and what documentation is provided?
The 12-month warranty covers functional defects — the unit will perform to ADLink’s original specification for the cPCI-6930D/2418/M6G. Each shipment includes a test report confirming power-on, POST completion, and interface verification. This documentation supports your incoming inspection process and maintenance records.

Q2: How do I verify compatibility with my existing CompactPCI chassis before installation?
Confirm that your chassis conforms to PICMG 2.0 R3.0 and provides a 6U slot with a 24 V DC power rail (for the /2418 variant). Check the backplane’s bus width (32 or 64-bit) and clock speed (33 or 66 MHz) against your application requirements. If you have the chassis model number, our technical team can confirm compatibility prior to order.

Q3: What is the recommended inventory strategy for a facility running multiple cPCI-6930 systems?
For facilities with 3 or more installed units, a 1:3 spare ratio is a common industry benchmark — one spare board for every three installed systems. For critical single-point-of-failure applications, a 1:1 hot-spare strategy is advisable. Given the tightening secondary market for cPCI-6930 Series boards, procuring spares now rather than on-demand significantly reduces both cost and lead-time risk.

Q4: Can the cPCI-6930D/2418/M6G be used as a direct field replacement without re-imaging?
Yes, provided you have a current, verified image backup of your operating system and application software on a compatible CompactFlash card. The hardware is a direct drop-in replacement for any cPCI-6930D/2418/M6G in the same chassis slot. TOPNLMS recommends maintaining at least one verified CF image backup as part of your standard spare-parts kit.
