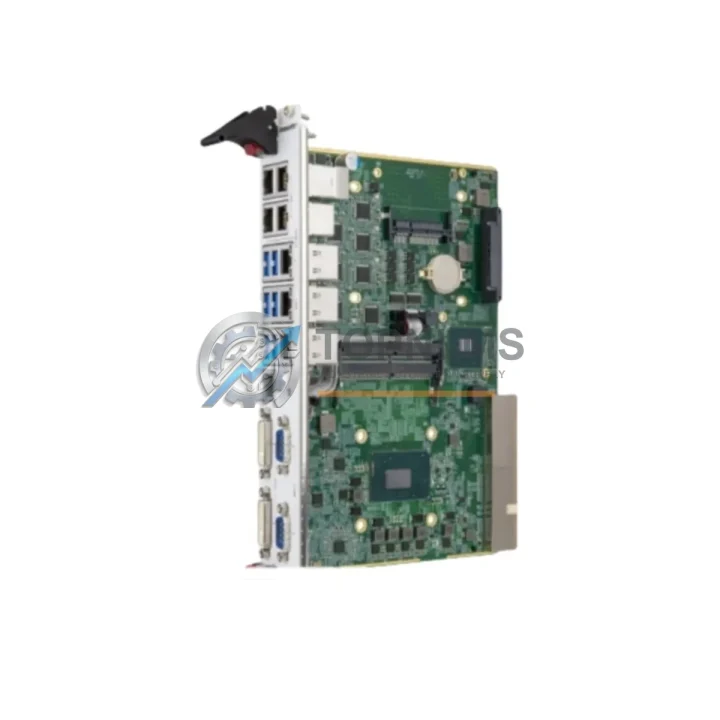

Adlink CPCI-6920/S408/M4G(G)-1270 Original Industrial Spare CPCI-6920 Compatible

Product Overview

Adlink CPCI-6920/S408/M4G(G)-1270 Original Industrial Spare CPCI-6920 Compatible: System Stability & Industrial Spare Parts Maintenance Value

In high-availability industrial environments, the integrity of your control system depends on the reliability of every board-level component. The Adlink CPCI-6920/S408/M4G(G)-1270 is a 6U CompactPCI Single Board Computer (SBC) built around the Intel Core i7-3770QM (Ivy Bridge) processor, designed for demanding embedded computing applications in factory automation, process control, transportation, and defense-grade systems. Maintaining a verified original spare of this SBC in your inventory is one of the most cost-effective strategies to protect against unplanned downtime in legacy and active CPCI-6920 Series deployments.

Whether you are managing a scheduled overhaul, responding to an unexpected board failure, or building a preventive maintenance stockpile for a multi-rack control cabinet, sourcing an original CPCI-6920/S408/M4G(G)-1270 ensures full hardware and software compatibility with your existing backplane, operating system image, and application stack — eliminating the integration risk that comes with substitute or counterfeit alternatives.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting Your CPCI-6920 System

A CompactPCI chassis is only as reliable as its weakest component. When performing scheduled maintenance or responding to a CPCI-6920/S408/M4G(G)-1270 board failure, experienced maintenance engineers know that a single-board replacement is rarely the complete picture. The SBC interfaces with multiple subsystems — power, I/O, communications, and the backplane — and a fault in any one of these can cause symptoms that appear to originate from the processor board itself.

During a control cabinet inspection or planned shutdown, it is strongly recommended to simultaneously evaluate the Adlink CPCI-6920 backplane for trace damage, connector wear, and slot integrity. The S408 rear transition module should be inspected for pin corrosion and secure seating, as degraded rear I/O connections are a common source of intermittent communication faults that are often misdiagnosed as SBC failures. If your system uses a CompactPCI power supply module (typically a 3U or 6U format unit supplying 3.3V, 5V, and ±12V rails), verify output voltages under load — an aging PSU delivering marginal voltage is one of the leading causes of premature SBC failure in long-running installations.

For systems that rely on real-time data acquisition or process I/O, the Adlink CPCI-7300A or CPCI-7200 series I/O modules installed in adjacent slots should be checked for firmware currency and connector integrity during the same maintenance window. Similarly, if your rack includes a CompactPCI communication module — such as a MIL-STD-1553 interface card, a PROFIBUS DP master module, or an Ethernet switch module — these should be tested for link stability and error counters before the system is returned to production.

Terminal blocks and field wiring connected through the rear transition module are another area of focus. Loose or oxidized terminals on DIN-rail terminal strips feeding the S408 I/O points can introduce ground loops and signal noise that degrade SBC performance over time. A torque check and visual inspection of all field terminations takes less than 30 minutes and can prevent months of intermittent fault-chasing.

For facilities running mixed Adlink and third-party CompactPCI hardware, it is also worth auditing any signal isolator modules or fuse protection modules in the same cabinet. These passive components have finite service lives and are frequently overlooked in spare parts planning. Stocking a set of matched fuse modules and signal conditioners alongside your CPCI-6920/S408/M4G(G)-1270 spare ensures that a secondary failure does not extend your recovery time after the primary board swap.

Finally, if your system includes an Adlink or third-party HMI panel communicating with the CPCI-6920 SBC over a serial or Ethernet link, verify the communication parameters and cable integrity as part of the same maintenance cycle. A corrupted HMI configuration or a failing RS-232/RS-485 cable can mask a successful board replacement and delay return-to-service confirmation.

Strategic Replacement Solutions: Reducing Downtime with Original Spares

The CPCI-6920 Series has been deployed across a wide range of industrial applications since its introduction, and many facilities continue to operate these systems well beyond the original product lifecycle. As Adlink transitions its active product line toward newer architectures, sourcing original CPCI-6920/S408/M4G(G)-1270 boards through specialist industrial spare parts suppliers becomes the most reliable path to maintaining system continuity without a costly platform migration.

Unlike generic or refurbished alternatives, an original-specification CPCI-6920/S408/M4G(G)-1270 board preserves full compatibility with your existing BSP (Board Support Package), device drivers, and application software. This means your maintenance team can execute a hot-swap replacement — slot out the failed board, slot in the spare, restore the OS image from backup, and return the system to production — often within a single shift. There is no need to requalify software, remap I/O addresses, or retrain operators on a new interface.

For facilities managing multiple CPCI-6920 chassis across different production lines or buildings, a centralized spare parts strategy — holding one verified spare SBC per three to five installed units — provides a statistically sound buffer against concurrent failures while minimizing capital tied up in idle inventory. This ratio is consistent with industry best practices for high-criticality embedded computing spares in process manufacturing and discrete automation environments.

Each unit supplied by TOPNLMS undergoes functional verification prior to shipment, including POST completion, memory test, and I/O interface check. Units are shipped in anti-static packaging with full documentation. Our 12-month warranty covers functional failure under normal operating conditions, giving your procurement and maintenance teams confidence in the spare’s readiness when it is needed most.

Support FAQ

Q1: Is this an original Adlink CPCI-6920/S408/M4G(G)-1270 or a compatible substitute?
This listing is for an original Adlink CPCI-6920/S408/M4G(G)-1270 board. We do not supply clones, compatible substitutes, or boards remarked from other SKUs. Each unit is verified against the original Adlink part specification before shipment.

Q2: What does the 12-month warranty cover, and how is a warranty claim handled?
The 12-month warranty covers functional failure of the board under normal operating conditions — correct voltage supply, within-spec operating temperature, and proper ESD handling. If a unit fails within the warranty period, contact us at [email protected] with your order number and a description of the fault. We will arrange return shipping and provide a replacement or refund within 10 business days of receiving the defective unit.

Q3: How do I verify compatibility with my existing CompactPCI backplane before installation?
The CPCI-6920/S408/M4G(G)-1270 is compliant with PICMG 2.0 R3.0 and is compatible with standard 6U CompactPCI backplanes supporting 3.3V and 5V signaling. Verify that your backplane provides a System Slot (J1 connector) and that your chassis power supply meets the board’s power budget (minimum 40W recommended for the processor slot). If you require compatibility confirmation for a specific chassis model, contact our technical team with your chassis part number.

Q4: What is the typical lead time, and do you hold stock for urgent maintenance requirements?
We maintain stock of the CPCI-6920/S408/M4G(G)-1270 for immediate dispatch. In-stock units ship within 2 business days of order confirmation. For urgent maintenance situations, contact us directly at [email protected] or +86 18359293191 to confirm real-time availability and arrange expedited shipping. Pre-order units for out-of-stock configurations typically ship within 7–15 business days.
