ABB SNAT634PAC Replacement Upgrade for Stromberg SNAT Series

Product Overview

ABB SNAT634PAC Replacement Upgrade for Stromberg SNAT Series: Seamless Transition from Legacy Drive Control

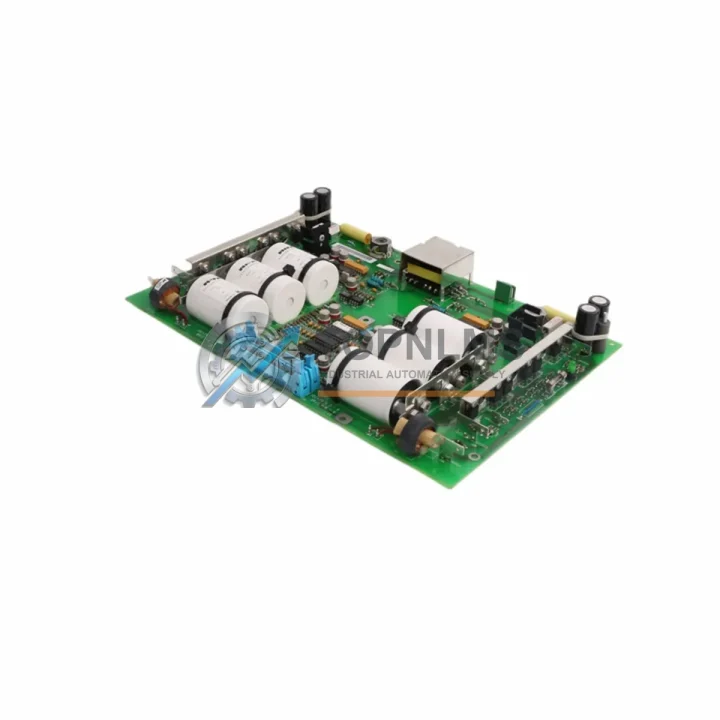

The ABB SNAT634PAC (also referenced as SNAT 634 PAC) is a pulse amplifier board originally developed under the Stromberg drive platform, widely deployed in ACS 600, ACS 800, and earlier DCS 400/500 series variable frequency drive systems. As ABB has progressively phased out Stromberg-branded components, many facilities running legacy drive cabinets face an urgent need to source verified replacement boards that maintain full electrical and functional compatibility without requiring a complete drive overhaul.

This listing provides a tested, ready-to-ship SNAT634PAC replacement module sourced from verified industrial supply channels. Each unit undergoes pre-shipment functional verification to confirm pulse signal integrity, gate drive output levels, and board-level continuity — ensuring that your replacement arrives ready for installation, not just cosmetically intact.

For engineers managing aging drive infrastructure, the SNAT634PAC sits at the heart of the firing circuit. It receives speed and torque reference signals from the main control board — typically an NAMC or RMIO board in ACS 600/800 platforms — and converts them into precise IGBT gate pulses. A failed or degraded SNAT634PAC typically manifests as erratic motor speed, overcurrent faults, or complete drive shutdown. Replacing this board in isolation, without disturbing the power stack or motor cabling, is the most cost-effective path to restoring drive operation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SNAT634PAC replacement rarely happens in isolation. In practice, drive modernization projects that involve this pulse amplifier board also commonly address adjacent components within the same cabinet or control architecture. When the SNAT634PAC fails, it is prudent to inspect the AINT board (auxiliary interface board) and the AINP power supply board, both of which share the same internal bus and are subject to similar thermal and electrical stress over time. If the drive is an ACS 800 platform, the RMIO board — responsible for I/O mapping, fieldbus communication, and application program execution — should be verified for firmware compatibility before the replacement board is commissioned.

For facilities running DCS 400 or DCS 500 thyristor drive systems, the SDCS-CON-2 control board and SDCS-PIN-205 power interface board are frequently replaced in the same maintenance window, since these platforms share similar aging profiles. If the drive communicates over PROFIBUS-DP or Modbus RTU, the fieldbus adapter module — such as the RPBA-01 or RMBA-01 — should also be checked for connector integrity and firmware version alignment before the upgraded drive is returned to service.

In cabinet-level retrofit projects, the 24 VDC SMPS (switched-mode power supply) module that feeds the control electronics is often a hidden failure point. Replacing the SNAT634PAC while leaving a marginal power supply in place can result in premature failure of the new board. Similarly, if the installation involves a multi-drive system sharing a common DC bus, the BAMU bus adapter module and any associated brake chopper units should be inspected as part of the commissioning checklist.

For sites upgrading from older Stromberg-era hardware to current ABB drive generations, the transition may also involve replacing the HMI panel — moving from a legacy CDP312R control panel to a modern ACS-AP-I or ACS-AP-W assistant control panel — which provides improved parameter access and diagnostic visibility during and after the retrofit.

Retrofit Guidance FAQ

Q: Do I need to re-program the drive after replacing the SNAT634PAC?
A: No. The SNAT634PAC is a hardware-level gate drive board and does not store application parameters or drive configuration. All drive parameters remain in the RMIO or NAMC control board. A direct board swap restores drive function without any parameter re-entry.

Q: Is the wiring harness compatible with the replacement board?
A: Yes. The replacement SNAT634PAC uses the same PCB connector layout and pinout as the original Stromberg-manufactured board. No wiring modification is required. Reconnect the existing harness and secure the board in the original mounting position.

Q: What communication protocols does this board support?
A: The SNAT634PAC operates on the internal drive bus using fiber optic gate signal transmission (where applicable) and parallel gate drive outputs. It does not interface directly with external fieldbus protocols such as PROFIBUS or Modbus — those are handled by the control board layer above it.

Q: Will this board fit in the original cabinet without mechanical modification?
A: Yes. The replacement board maintains the original PCB dimensions and mounting hole pattern. No bracket modification, DIN rail adapter, or cabinet rework is required.

Q: What if the drive still faults after replacing the SNAT634PAC?
A: If fault codes persist after board replacement, the issue may lie with the IGBT power module, the gate resistor network, or the AINT/AINP auxiliary boards. We recommend capturing the active fault code from the CDP312R or ACS-AP panel before and after replacement to isolate the fault source. Our technical team can assist with fault code interpretation.

Q: Can this board be used as a long-term spare for preventive maintenance?
A: Yes. We recommend holding at least one spare SNAT634PAC for critical drive applications. The board can be stored in anti-static packaging at room temperature for extended periods without degradation.

Warranty Assurance

Every SNAT634PAC replacement unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each board undergoes a multi-point inspection covering visual integrity, connector condition, component-level continuity, and where applicable, functional bench testing against known-good drive reference units.

If a warranty claim arises within the coverage period, TOPNLMS will provide a replacement unit or full refund based on the confirmed fault condition. Return shipping for warranty claims is coordinated through our after-sales team, and replacement units are dispatched within 3–5 business days of fault confirmation. We maintain stock in Xiamen, China, with express shipping options available to minimize site downtime for urgent replacement scenarios.

For procurement teams requiring documentation, we can provide a test report, packing list, and commercial invoice with HS code declaration upon request. Bulk orders for MRO stock programs are supported with volume pricing and lead-time commitments.

Contact our technical sales team before purchase if you need to confirm compatibility with a specific drive serial number range, firmware version, or cabinet configuration. We are committed to ensuring that every replacement reaches your site ready to install.
