ABB 3BHE036130R0101 GDC806B Original Spare ACS6000 Compatible: System Stability for Medium Voltage Drive Maintenance

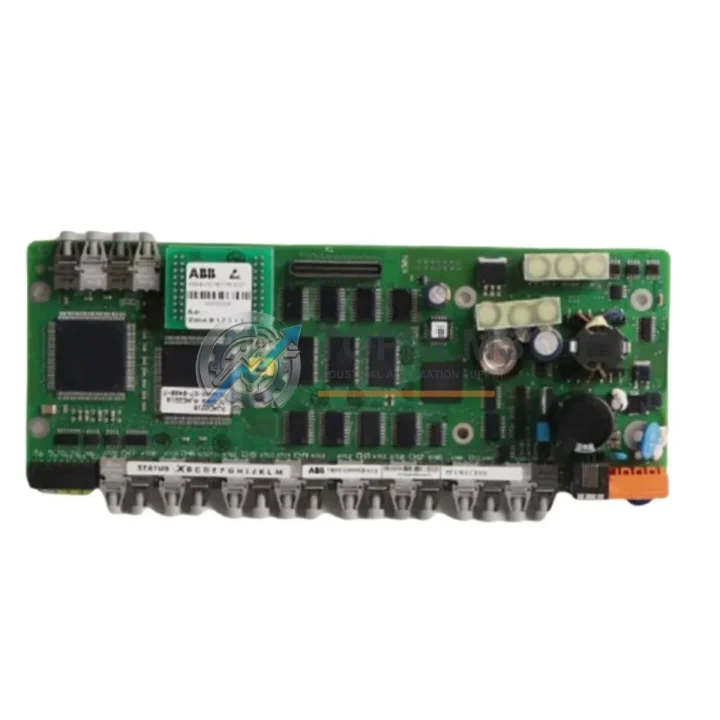

The ABB 3BHE036130R0101 GDC806B is an original Gate Drive Control Card engineered exclusively for the ABB ACS6000 series medium voltage variable speed drives. In high-demand industrial environments — from cement plants and mining operations to offshore platforms and steel mills — the ACS6000 drive system is a mission-critical asset. When a gate drive control card fails, the consequences are immediate: unplanned downtime, production loss, and costly emergency procurement. Stocking the 3BHE036130R0101 GDC806B as a verified spare ensures your maintenance team can execute a rapid, like-for-like replacement without compromising system integrity or safety interlocks.

This card governs the precise firing signals delivered to the IGCT (Integrated Gate-Commutated Thyristor) power semiconductors within the ACS6000 converter. Its role is foundational: any degradation in gate drive performance directly translates to switching irregularities, harmonic distortion, or catastrophic converter failure. Sourcing an original ABB GDC806B — not a counterfeit or reverse-engineered substitute — is the only way to guarantee that firing timing, isolation levels, and fault detection logic remain within OEM specification.

Critical Technical Specs Table

Preventive Maintenance Strategy

A gate drive control card does not fail in isolation. In the ABB ACS6000 architecture, the GDC806B operates within a tightly coupled ecosystem of power electronics, control logic, and communication infrastructure. A disciplined preventive maintenance program should treat the 3BHE036130R0101 as one node in a broader inspection and spare-stocking strategy — not a standalone component.

During scheduled shutdowns, maintenance engineers should simultaneously inspect the ABB IGCT power semiconductor modules (5SHY series) that the GDC806B directly drives. Gate drive card degradation and IGCT wear are frequently co-occurring failure modes; replacing one without inspecting the other is a common cause of repeat failures within the same maintenance cycle. The ABB UFC760BE101 and UFC719BE101 main control boards should be checked for firmware integrity and communication faults, as upstream control errors can stress the gate drive card over time and shorten its service life.

Fiber optic cables connecting the GDC806B to the control unit are a high-wear item in vibration-intensive environments. Inspect and replace ABB PFBR111F fiber optic transceivers and associated fiber cables on a 3–5 year cycle. The ACS6000 auxiliary power supply boards — such as the APBU-44C and APBU-12C — that feed operating voltage to the gate drive section should be load-tested during the same maintenance window. A sagging auxiliary supply is a leading cause of intermittent gate drive faults that are difficult to diagnose without proper instrumentation.

For the broader control cabinet, inspect ABB NAIO and NDIO series I/O modules connected to the drive’s control interface, and check all terminal blocks and signal connectors within the converter cabinet for oxidation or loose terminations — a common source of nuisance faults in aging installations. If the ACS6000 is integrated into a DCS or SCADA environment, verify the condition of PROFIBUS or Modbus communication adapters (NPBA-12 or NMBR-01), including cable shielding and adapter firmware. Finally, review the cooling fans and heat sink assemblies within the ACS6000 cabinet: thermal stress is the primary accelerant of gate drive card aging, and maintaining proper airflow directly extends GDC806B service life.

Stocking a complete preventive maintenance kit — the GDC806B, a spare IGCT module, fiber optic cables, and an auxiliary power supply board — reduces mean time to repair (MTTR) from days to hours and eliminates the risk of secondary damage caused by operating a degraded drive through a fault condition.

Strategic Replacement Solutions

The ABB ACS6000 platform has been in service since the late 1990s, and many installations are now operating well beyond their original design lifecycle. OEM support for legacy hardware is progressively being withdrawn, making the availability of original spare parts like the 3BHE036130R0101 GDC806B increasingly critical for plant operators who cannot justify a full drive replacement program.

Unlike third-party or remanufactured alternatives, an original ABB GDC806B maintains full compatibility with the ACS6000’s proprietary gate drive communication protocol and fault reporting architecture. This means no firmware modifications, no recalibration of firing angles, and no risk of voiding existing service agreements. The replacement procedure is a direct card swap — remove the failed unit, seat the replacement, and restore drive operation following ABB’s standard commissioning checklist. No specialist tools or drive reconfiguration are required.

For plants managing aging ACS6000 fleets across multiple production lines, a strategic approach involves maintaining a minimum of one GDC806B per drive system in bonded inventory. This eliminates lead-time risk — international procurement of specialist medium voltage drive components can take 4–16 weeks through standard channels. Pre-stocked spares compress that window to zero, enabling same-shift restoration of drive availability and protecting production throughput targets. The 12-month warranty on each unit means your inventory investment is protected from the moment of purchase, not just from the moment of installation.

TOPNLMS sources the 3BHE036130R0101 GDC806B through verified supply channels, with each unit undergoing full functional testing before shipment. All units are dispatched in anti-static, shock-protected packaging with complete traceability documentation, supporting your site’s spare parts management and audit requirements.
