ABB 3BHL000986P3001 Original Industrial Spare ACS2000 Compatible: System Stability & Industrial Spare Maintenance Value

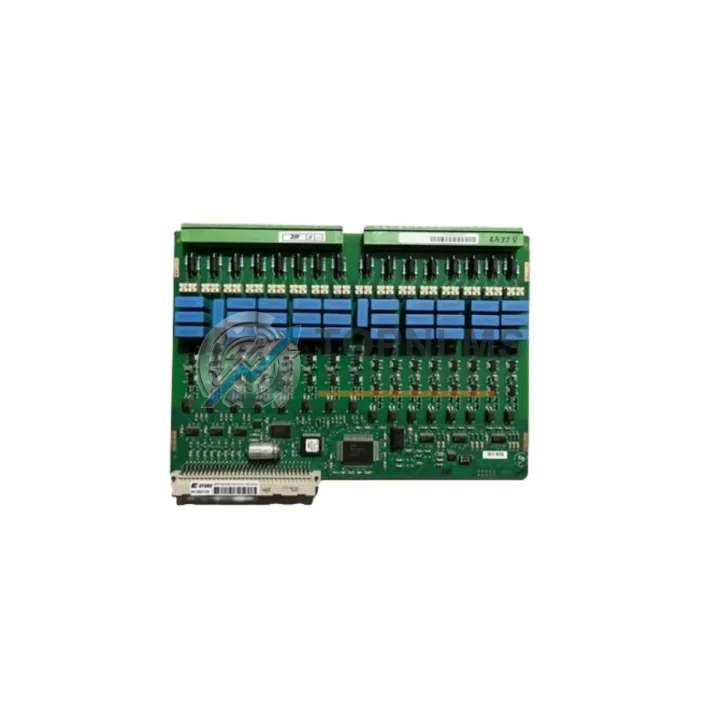

The ABB 3BHL000986P3001 is an original drive control board engineered for ABB’s ACS2000 and ACS6000 medium-voltage variable speed drive platforms. In high-demand industrial environments — including petrochemical plants, steel mills, mining operations, water treatment facilities, and large-scale HVAC systems — the integrity of the drive control board is central to uninterrupted production. A failed or degraded control board can trigger unplanned shutdowns, cascade faults across connected motor circuits, and result in costly production losses. Stocking a verified original 3BHL000986P3001 spare is one of the most effective risk-mitigation strategies available to maintenance engineers managing aging or mission-critical drive systems.

This board governs the core control logic of the ACS2000 and ACS6000 drive cabinets, managing gate firing sequences, feedback signal processing, fault diagnostics, and communication with the plant-level control architecture. Its role is not peripheral — it is the operational brain of the drive. When this component degrades, symptoms typically manifest as intermittent drive trips, erratic speed references, communication timeouts on PROFIBUS or Modbus links, and unexplained overcurrent or overvoltage faults. Early identification and rapid replacement with a genuine ABB 3BHL000986P3001 eliminates diagnostic ambiguity and restores system confidence.

Critical Technical Specs Table

Preventive Maintenance Strategy

Experienced maintenance teams understand that a drive control board failure rarely occurs in isolation. The ACS2000 and ACS6000 cabinets are complex electromechanical systems where thermal stress, vibration, and power quality events affect multiple components simultaneously. When scheduling a planned inspection or responding to a drive fault, a comprehensive maintenance sweep significantly reduces the probability of repeat failures.

During any intervention involving the 3BHL000986P3001 control board, maintenance engineers should concurrently inspect the ABB AINT-02C or AINT-11C interface boards, which handle the optical fiber communication between the control and power sections — degraded fiber links are a common root cause of control board misdiagnosis. The APOW-01C power supply module feeding the control electronics should be load-tested; an unstable auxiliary supply will cause repeated control board failures even after replacement. Inspect all AGPS gate driver boards for signs of thermal discoloration or capacitor bulging, as these directly interact with the control board’s firing pulse outputs.

The RDCO-03C or RDCO-04C DDCS communication modules should be verified for firmware version compatibility with the replacement control board. Mismatched firmware between the control board and communication module is a frequently overlooked source of post-replacement faults. While the cabinet is open, inspect the NINT-41C or NINT-51C network interface modules for corrosion on connector pins, particularly in humid or coastal plant environments.

On the power side, verify the condition of the DC bus capacitor banks and check the BAMU-01 or BAMU-02 battery management units if the drive uses a UPS-backed control supply. Inspect all terminal blocks and signal wiring harnesses within the control section for insulation cracking or loose terminations — vibration-induced intermittent connections are a leading cause of spurious drive trips that are incorrectly attributed to control board failure. Finally, review the cooling fan assemblies and heat sink thermal pads for the IGBT or GTO power modules; inadequate cooling accelerates control board aging through elevated ambient temperatures inside the cabinet.

A structured maintenance checklist covering these components — executed during the same planned outage window as the 3BHL000986P3001 replacement — maximizes the return on maintenance labor and extends the operational interval before the next intervention.

Strategic Replacement Solutions

The ABB ACS2000 and ACS6000 drive platforms have been deployed globally since the late 1990s and early 2000s. Many installations are now operating well beyond their original design lifecycle, and OEM support for legacy firmware versions and hardware revisions is increasingly limited. The 3BHL000986P3001 control board represents a direct, drop-in replacement that preserves the existing drive cabinet, motor cabling, transformer infrastructure, and plant-level SCADA integration — avoiding the capital expenditure and extended commissioning downtime associated with a full drive replacement.

For facilities managing multiple ACS2000 or ACS6000 units across a site, a strategic spare-holding policy of one 3BHL000986P3001 per two to three drive cabinets is a widely adopted industry benchmark. This ratio balances inventory carrying cost against the financial exposure of an unplanned shutdown. Given the typical mean time to repair (MTTR) for a drive control board fault — which can extend to several weeks if the part must be sourced reactively — on-site stock eliminates the most significant variable in recovery time.

When replacing the control board, ensure that the drive firmware version stored on the replacement board is compatible with the existing DDCS network configuration and any connected ABB AC800M or AC800PEC controllers. If the plant uses ABB’s DriveWindow or DriveWindow Light commissioning software, a parameter backup should be captured from the existing board before removal where the drive is still partially functional. This preserves motor tuning data, speed reference scaling, and protection thresholds, reducing recommissioning time to under two hours in most cases.

For sites transitioning from older ACS6000 hardware revisions to current production equivalents, the 3BHL000986P3001 is compatible across the primary hardware generations of the ACS2000 platform, making it a versatile strategic spare that covers multiple cabinet variants within a single site inventory.

Support FAQ

Q1: How do I verify that the 3BHL000986P3001 is compatible with my specific ACS2000 or ACS6000 drive revision?
Compatibility is determined by the drive cabinet serial number, hardware revision code (found on the cabinet nameplate), and the existing control board part number. Share your cabinet serial number and current board revision with our technical team at [email protected] and we will confirm compatibility before shipment. We maintain a cross-reference database covering all major ACS2000 and ACS6000 hardware generations.

Q2: What pre-shipment testing is performed on the 3BHL000986P3001?
Every unit undergoes functional verification prior to dispatch, including power-on self-test, communication interface checks, and visual inspection for component-level defects. Units are shipped in anti-static packaging with individual test records available on request. Our 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment.

Q3: What is the recommended spare-holding strategy for sites with multiple ACS2000 drives?
For sites operating two or more ACS2000 or ACS6000 units, we recommend maintaining at least one 3BHL000986P3001 on-site at all times. For critical production lines where drive downtime directly halts output, a one-to-one spare ratio is advisable. Bulk procurement of two or more units is available with volume pricing — contact us for a site-specific spare parts proposal.

Q4: Can I return or exchange the board if it does not resolve my drive fault?
Yes. If the 3BHL000986P3001 does not resolve the reported fault after correct installation, our technical support team will assist with remote fault diagnosis to identify the actual root cause. Returns are accepted within the warranty period for units that have not been physically damaged during installation. We recommend performing a full drive diagnostic — including checking the AINT interface boards and APOW power supply — before concluding that the control board is the failed component.
