ABB SNAT617CHC Replacement Solution for ACS600 ACS800

Product Overview

ABB SNAT617CHC Replacement Solution for ACS600 ACS800: Seamless Migration & Smooth Transition

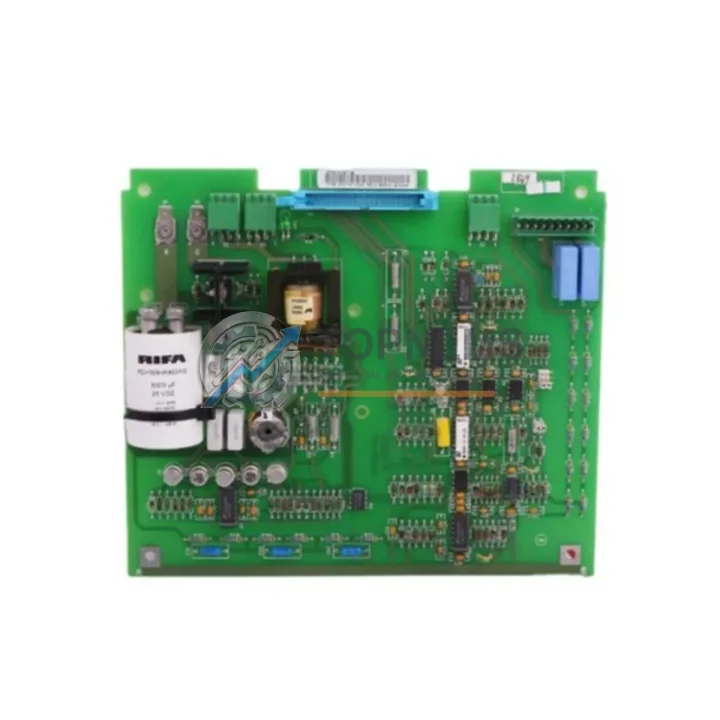

The ABB SNAT617CHC is the gate drive and firing control board designed for ABB’s ACS600 and ACS800 series variable frequency drives. As these drive platforms age and original spare parts become increasingly scarce, plant engineers and procurement teams face mounting pressure to source verified replacement boards that maintain full electrical and functional compatibility with existing drive cabinets, motor control centers, and automation architectures.

TOPNLMS supplies the SNAT617CHC as a direct replacement component, fully tested prior to shipment, backed by a 12-month warranty, and available for fast international dispatch from our Xiamen warehouse. Whether you are managing a planned maintenance window, responding to an unplanned drive fault, or executing a phased modernization of your ACS600 or ACS800 fleet, this board is engineered to restore drive functionality with minimal engineering intervention.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ACS600 or ACS800 drive restoration rarely involves a single board in isolation. In practice, the SNAT617CHC gate drive board works in close coordination with several other modules within the same drive cabinet. During a retrofit or emergency replacement, engineers commonly address the AINT board (the drive’s main control interface board) and the APOW power supply board simultaneously, since these three components share the same internal 24 VDC auxiliary bus and fiber-optic communication backbone.

For drives operating in multi-drive configurations or connected to an upper-level DCS via Profibus or DDCS, the RDCO-02 DDCS communication adapter and RPBA-01 Profibus adapter are frequently inspected and replaced as part of the same service event. Ensuring that the communication chain from the ACS800 drive to the plant DCS — whether a Siemens S7-400, ABB System 800xA, or Honeywell Experion — remains intact is critical to avoiding post-replacement commissioning delays.

On the I/O side, the RAIO-01 analog I/O extension module and RDIO-01 digital I/O extension module are often evaluated during the same maintenance window. These modules plug into the drive’s option slot and handle speed reference signals, torque feedback, and digital interlock wiring — all of which must be verified after a gate drive board replacement to confirm that the drive responds correctly to process commands from the PLC or DCS.

For installations where the ACS800 drive is mounted in a shared control cabinet alongside other ABB equipment, the NINT-02 inverter control board and the NBRC-51 brake chopper module may also require inspection, particularly in high-inertia load applications such as centrifuges, hoists, or large pump systems. Replacing the SNAT617CHC without verifying the brake chopper circuit can leave a latent fault that only manifests under deceleration load.

Finally, for sites performing a broader migration from ACS600 to ACS800 architecture, the ACS800-01 standard drive unit and associated RMIO-02 motor control board represent the natural upgrade path, allowing plants to consolidate spare parts inventory and standardize on a single drive platform across multiple production lines.

Retrofit Guidance FAQ

Q: Do I need to re-enter drive parameters after replacing the SNAT617CHC?
A: No. The SNAT617CHC is a gate drive and firing control board — it does not store drive application parameters. All motor data, speed references, and control macros remain in the AINT or RMIO control board. Parameter backup via DriveWindow or DriveStudio is recommended as a precaution before any board swap, but the replacement itself does not erase drive memory.

Q: Are the fiber-optic cables reusable after board replacement?
A: Yes, provided the existing fiber-optic cables are undamaged and the connectors are clean. Inspect each fiber port with a lint-free swab before reconnection. Contaminated fiber connectors are a common cause of gate drive faults after board replacement and should be cleaned with isopropyl alcohol before reinstallation.

Q: Is the SNAT617CHC compatible with both ACS600 and ACS800 power units?
A: The SNAT617CHC is designed for specific power unit frame sizes within the ACS600 and ACS800 series. Please confirm your drive’s frame size (R2–R8 or larger) and power unit type before ordering. TOPNLMS technical support can cross-reference your drive nameplate data to confirm compatibility.

Q: What communication protocols does the ACS800 support after this replacement?
A: The gate drive board does not affect the drive’s fieldbus communication layer. The ACS800 continues to support Profibus-DP, Modbus RTU, DeviceNet, CANopen, and DDCS fiber-optic protocols through its adapter modules, all of which remain unaffected by the SNAT617CHC replacement.

Q: How much physical space does the replacement require?
A: The SNAT617CHC is a direct PCB replacement with an identical form factor to the original board. No additional cabinet space, DIN rail modification, or cable extension is required. The replacement can typically be completed within a standard 4-hour maintenance window.

Q: Can this board be used in a hot-standby or redundant drive configuration?
A: Yes. In ACS800 multi-drive or redundant configurations, the SNAT617CHC can be installed in the standby inverter unit. Ensure that the standby unit is fully de-energized and isolated before board replacement, following ABB’s lockout/tagout procedures for the specific drive cabinet.

Warranty Assurance

Every SNAT617CHC supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes a multi-point functional inspection including visual examination for component damage, connector integrity verification, and where applicable, powered bench testing to confirm gate signal output and auxiliary power response.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the fault assessment. Our technical team responds to warranty inquiries within one business day, and replacement units for confirmed warranty cases are dispatched within 3–5 business days. We maintain buffer stock of high-demand ABB ACS600 and ACS800 spare parts specifically to support rapid warranty fulfillment without extended lead times.

For procurement teams requiring documentation, TOPNLMS can provide a test report, packing list, and commercial invoice with each shipment. Export packaging is designed for international air and sea freight, with ESD-safe inner packaging and foam-lined outer cartons to protect sensitive PCB components during transit.

We ship globally from Xiamen, China, with typical lead times of 3–7 business days for stocked items. DHL Express, FedEx International Priority, and UPS Worldwide Expedited are available for time-critical orders. For large-volume procurement or ongoing maintenance contracts, please contact our sales team to discuss pricing, lead time commitments, and consignment stock arrangements.
