ABB SDCS-COM-5 3BSE006567R1 Original Industrial Spare DCS800 Compatible

Product Overview

ABB SDCS-COM-5 3BSE006567R1 Original Industrial Spare DCS800 Compatible: System Stability and Fieldbus Maintenance Value

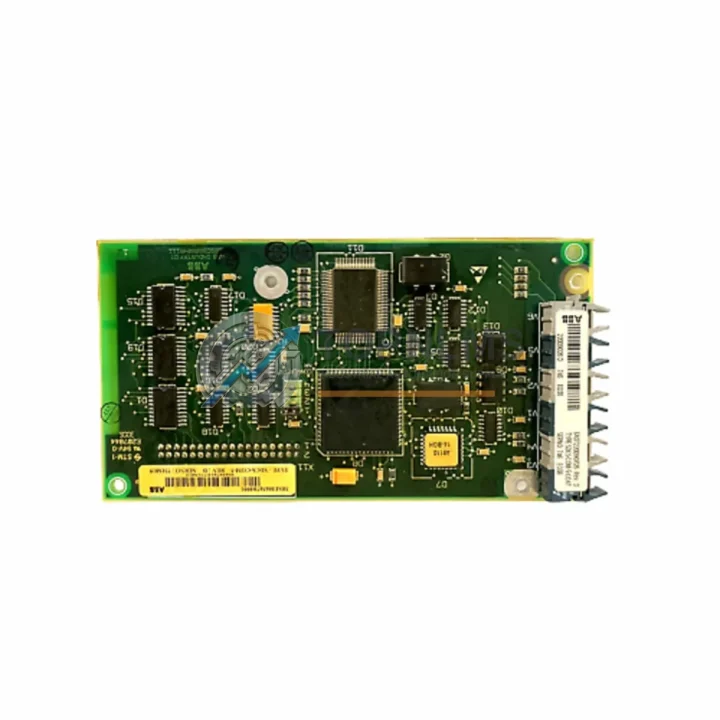

The ABB SDCS-COM-5 (part number 3BSE006567R1) is an original fieldbus communication module engineered specifically for the ABB DCS800 series DC drives. In industrial environments where production continuity is non-negotiable, this module serves as the critical communication bridge between the drive controller and plant-level fieldbus networks — including PROFIBUS-DP, DeviceNet, and other supported protocols. Sourced directly from ABB’s manufacturing chain and verified against OEM specifications, this spare part is an essential component for any maintenance team managing DCS800-based motor control systems.

For facilities running continuous processes — paper mills, metal rolling lines, extruders, winding machines, or large HVAC systems — an unplanned DCS800 drive failure caused by a faulty communication module can result in hours or days of costly downtime. Stocking the SDCS-COM-5 3BSE006567R1 as a certified spare eliminates that risk. Each unit shipped from TOPNLMS undergoes pre-shipment functional verification and is backed by a 12-month warranty, giving maintenance engineers and procurement managers the confidence to plan ahead rather than react under pressure.

Critical Technical Specs

Preventive Maintenance Strategy

When a DCS800 drive is taken offline for scheduled maintenance or emergency repair, the SDCS-COM-5 communication module is rarely the only component that warrants inspection. Experienced maintenance engineers know that fieldbus communication faults are often symptomatic of broader issues within the drive cabinet or control loop. A thorough inspection should extend to the SDCS-CON-4 control board, which hosts the communication module slot — any corrosion, damaged connectors, or firmware mismatch on the control board will render a new SDCS-COM-5 ineffective.

The SDCS-PIN-51 and SDCS-PIN-205 power interface boards should also be checked during the same maintenance window. These boards manage the interface between the control electronics and the power section; degraded capacitors or damaged gate drive circuits on these boards are a common root cause of intermittent drive faults that are mistakenly attributed to communication errors. Similarly, the SDCS-DSL-4 digital speed and load board should be inspected for signal integrity, particularly in high-vibration environments.

On the fieldbus network side, inspect the PROFIBUS-DP cable termination resistors and bus connectors at both the drive end and the PLC/DCS master end. A degraded termination resistor or a loose DB9 connector can cause intermittent communication loss that mimics a module failure. If the plant uses a Siemens S7-300 or S7-400 PLC as the PROFIBUS master, verify the DP master configuration and GSD file version to ensure compatibility with the DCS800 slave profile.

For drives installed in older control cabinets, it is also advisable to inspect the 24VDC auxiliary power supply module feeding the control electronics. Voltage ripple or sag on the 24V rail is a known cause of communication module resets and false fault trips. Replacing an aging SITOP or Phoenix Contact PSU alongside the SDCS-COM-5 is a cost-effective way to restore long-term system stability. Additionally, check the fiber optic DDCS cables (if the drive is networked via DDCS rather than PROFIBUS) for bend radius violations, connector contamination, or optical power degradation — these cables are a frequent maintenance oversight in multi-drive systems.

Finally, for facilities managing multiple DCS800 drives, consider maintaining a minimum stock of SDCS-COM-5 modules alongside SDCS-CON-4 control boards as a paired spare set. The mean time to repair drops dramatically when both components are available on-site, and the combined procurement cost is modest relative to the cost of a single unplanned production stoppage.

Strategic Replacement Solutions

The ABB DCS800 series has been in service at industrial facilities worldwide for over two decades, and while ABB continues to support the platform, the availability of new OEM spare parts through standard distribution channels is increasingly constrained. The SDCS-COM-5 3BSE006567R1 available through TOPNLMS represents a verified original-specification replacement that allows maintenance teams to extend the operational life of existing DCS800 installations without committing to a full drive replacement or system migration.

For facilities that previously operated ABB DCS500 or DCS600 series drives and have since migrated to DCS800, the SDCS-COM-5 provides a familiar fieldbus integration path, reducing re-engineering time and preserving existing PLC program logic. The module’s plug-in design means replacement can typically be completed within a single shift, with no special tooling required — a critical advantage when minimizing maintenance window duration is a priority.

Where legacy drives are being maintained alongside newer ABB ACS880 or ACS580 AC drive installations, the SDCS-COM-5 ensures that the DC drive segment of the plant network remains fully integrated into the PROFIBUS or DDCS topology, avoiding the need for protocol converters or gateway devices that introduce additional failure points. This approach preserves the original system architecture, simplifies fault diagnostics, and reduces the total cost of ownership for mixed-drive environments.

Support FAQ

Q1: Is this SDCS-COM-5 3BSE006567R1 an original ABB part or a compatible replacement?
This is an original ABB-manufactured unit (OEM part number 3BSE006567R1), not a third-party compatible or remanufactured substitute. Each unit is sourced from verified supply channels and undergoes pre-shipment functional testing before dispatch.

Q2: What is covered under the 12-month warranty?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Units that fail within the warranty period will be replaced or refunded. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling.

Q3: How do I verify compatibility with my specific DCS800 drive variant before ordering?
The SDCS-COM-5 is compatible with DCS800 drives equipped with the SDCS-CON-4 or SDCS-CON-F control board and a free RDCO adapter slot. Please confirm your drive’s control board type and firmware version from the drive nameplate or ABB documentation. If you are uncertain, contact us at [email protected] with your drive serial number and we will confirm compatibility before shipment.

Q4: What is your typical lead time and how is the unit packaged for shipment?
In-stock units are dispatched within 1–3 business days. Each module is packaged in anti-static ESD protective packaging with foam cushioning to prevent transit damage. Tracking information is provided upon dispatch. Express shipping via DHL or FedEx is available for urgent maintenance requirements.
