ABB DSQC354 Replacement Upgrade Solution for IRC5/S4C+

Product Overview

ABB DSQC354 Replacement Upgrade Solution for IRC5/S4C+: Seamless Transition from Legacy DeviceNet Systems

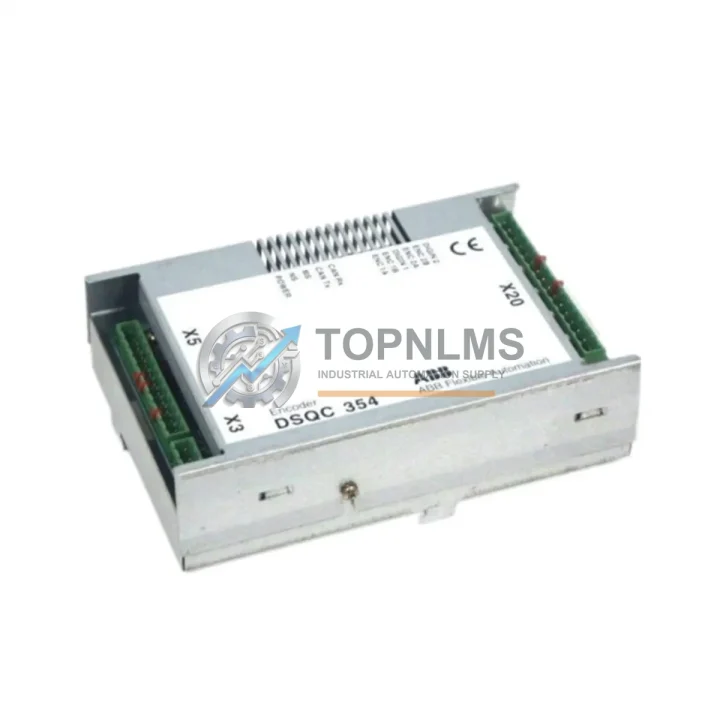

The ABB DSQC354 is a DeviceNet interface card designed for ABB IRC5 and S4C+ robot controller cabinets. As industrial facilities continue to modernize aging automation infrastructure, the DSQC354 has become one of the most sought-after replacement and upgrade components for engineers managing legacy ABB robotic systems. Whether you are migrating from an end-of-life S4C controller platform or maintaining an existing IRC5 cabinet, the DSQC354 provides a direct, plug-compatible solution that minimizes engineering rework, reduces downtime, and preserves your existing DeviceNet network topology.

In many retrofit projects, the DSQC354 replaces earlier-generation fieldbus interface cards that no longer meet current cycle-time or diagnostic requirements. Engineers transitioning from older ABB S4 or S4C platforms will find that the DSQC354 slots directly into the IRC5 controller backplane without requiring additional adapter brackets or custom cable harnesses. The card communicates over the DeviceNet protocol (CAN-based, ISO 11898), making it fully interoperable with existing DeviceNet scanners, I/O blocks, and distributed I/O nodes already installed on the factory floor.

Wiring compatibility is a primary concern during any controller migration. The DSQC354 uses a standard 5-pin open-style DeviceNet connector (V+, CAN_H, Shield, CAN_L, V−), which is pin-for-pin compatible with the cabling used on most legacy ABB S4C+ installations. This means field wiring from existing DeviceNet trunk lines and drop cables can be reconnected directly to the DSQC354 without re-termination, significantly reducing commissioning time on the shop floor.

From a software and programming perspective, the DSQC354 is recognized natively by ABB RobotWare 5.x and 6.x. No additional EDS file import or custom driver configuration is required when the card is installed in a properly configured IRC5 cabinet. Engineers using ABB RobotStudio for offline programming or system backup restoration will find that existing I/O signal mappings, unit definitions, and DeviceNet node addresses are preserved across the replacement procedure, provided the MAC ID settings on the card are matched to the original configuration.

Physical installation is equally straightforward. The DSQC354 occupies a single slot in the IRC5 controller’s internal computer unit (ICU) or axis computer assembly, depending on the cabinet generation. The card’s form factor and mounting tab positions are identical to those of the original factory-installed unit, so no mechanical modification to the cabinet interior is necessary. For facilities operating multiple robot cells, this consistency across cabinet generations simplifies spare-parts management and reduces the risk of installation errors during emergency replacements.

Power supply compatibility is another key advantage. The DSQC354 draws its operating power directly from the IRC5 backplane’s internal 24 VDC bus, eliminating the need for an external power supply or additional wiring to the cabinet’s power distribution board. This is particularly important in retrofit scenarios where cabinet space is limited and adding new power rails would require significant re-engineering of the control cabinet layout.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete IRC5 controller migration or S4C+ retrofit rarely involves a single component. In practice, the DSQC354 is most often deployed alongside a broader set of ABB automation components. During controller cabinet upgrades, engineers frequently replace the DSQC508 I/O power distribution board to ensure the internal 24 VDC bus meets the current draw requirements of the new interface cards. The DSQC652 digital I/O module is another common co-replacement, particularly in cells where the original I/O mapping relied on legacy S4C I/O boards that are no longer supported under RobotWare 6.x.

For facilities upgrading their DeviceNet network infrastructure at the same time, the DSQC377B DeviceNet scanner board is often specified alongside the DSQC354 to provide master-node scanning capability within the same IRC5 cabinet. Where the robot cell includes a teach pendant interface, the DSQC679 FlexPendant interface board may also require replacement to maintain compatibility with the updated controller firmware. Engineers working on multi-axis systems should also verify the condition of the DSQC668 axis computer board, as aging axis computers can cause intermittent communication faults that are sometimes misdiagnosed as fieldbus interface failures.

On the network side, existing DeviceNet trunk cables, termination resistors (121 Ω, 1%), and DeviceNet power taps should be inspected and replaced if the cable plant is more than ten years old. Signal isolators installed between the IRC5 cabinet and remote I/O nodes — particularly in environments with high electromagnetic interference from welding equipment or variable-frequency drives — should be verified for DeviceNet protocol compatibility before commissioning the upgraded system.

Retrofit Guidance FAQ

Q: Can I reuse my existing DeviceNet wiring after installing the DSQC354?
A: Yes. The DSQC354 uses the same 5-pin DeviceNet connector pinout as the cards used in S4C+ cabinets. Existing trunk and drop cables can be reconnected directly without re-termination, provided the cable plant is in good condition and termination resistors are correctly placed at both ends of the trunk.

Q: Do I need to modify my RobotWare configuration after replacing the card?
A: In most cases, no. If you restore a system backup from the original controller, RobotWare will recognize the DSQC354 and reload the existing DeviceNet unit configuration, including node addresses and I/O signal assignments. Manual reconfiguration is only required if the MAC ID or network topology has changed.

Q: Is the DSQC354 compatible with both IRC5 Single and IRC5 Panel Mounted Controller (PMC) variants?
A: The DSQC354 is designed for the IRC5 standard cabinet and IRC5 compact variants. Compatibility with the PMC variant depends on the specific backplane configuration — please confirm your cabinet type before ordering.

Q: What should I check if DeviceNet communication faults persist after installation?
A: Verify MAC ID uniqueness across all nodes, confirm termination resistors are present at both trunk ends, check the DeviceNet power supply voltage (11–25 VDC at the node), and inspect the trunk cable for shield continuity. Also confirm that the RobotWare DeviceNet option license is active on the controller.

Q: Can the DSQC354 be used as a hot-standby spare?
A: The card can be pre-configured offline using RobotStudio and stored as a tested spare. TOPNLMS recommends keeping at least one pre-tested unit on-site for critical production cells to minimize unplanned downtime.

Warranty Assurance

Every ABB DSQC354 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including power-on testing, communication interface checks, and visual inspection for component integrity. Units that do not pass our outgoing quality inspection are not shipped.

In the event of a confirmed defect within the warranty period, TOPNLMS will arrange a replacement unit or issue a refund in accordance with our standard after-sales policy. Our technical support team is available to assist with installation questions, compatibility verification, and commissioning guidance. We typically respond to technical inquiries within one business day.

For time-critical production environments, we offer expedited shipping options from our Xiamen warehouse to destinations worldwide. Most orders are processed and dispatched within 1–2 business days of payment confirmation. Tracking information is provided for all shipments.

TOPNLMS maintains stock of ABB IRC5 and S4C+ series components including interface cards, I/O modules, power distribution boards, and axis computer assemblies. Purchasing from a single, specialized supplier simplifies procurement, reduces lead times, and ensures component traceability for your maintenance records.
