ABB SAFT167APC Replacement & Upgrade for SAFT Series AC Drives: Smooth Migration from Legacy Drive Platforms

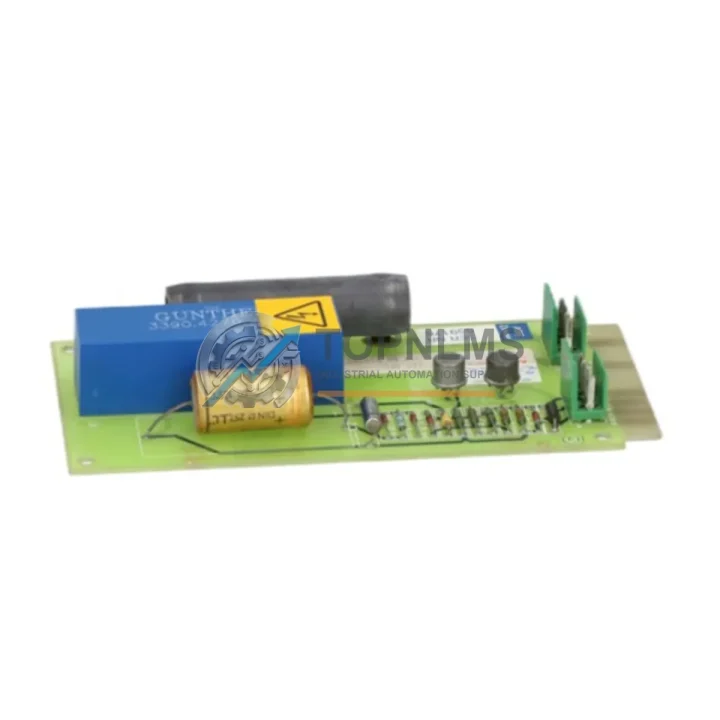

The ABB SAFT167APC (POW.CONN.II) is a power interface control board engineered for ABB’s SAFT-series AC variable frequency drives, including the SAMI GS, SAMI Star, and early ACS-series platforms. As these legacy drive systems reach end-of-life and original spare boards become increasingly scarce, plant engineers and MRO procurement teams face urgent pressure to restore drive functionality with minimal production interruption. The SAFT167APC is the direct replacement and upgrade solution for failed or obsolete power connection boards within the SAFT drive family — restoring full drive operation without requiring a complete cabinet overhaul or drive platform migration.

When a SAFT167APC board fails, the entire AC drive becomes inoperable, halting motor control for pumps, fans, compressors, conveyors, and other critical rotating equipment. Sourcing a verified, tested replacement board quickly is essential to minimizing downtime. TOPNLMS maintains ready stock of the SAFT167APC, functionally inspected and dispatched from Xiamen with standard international lead times of 3–7 business days, backed by a 12-month warranty covering manufacturing defects and functional failures.

This board interfaces directly with the SAFT drive’s power section, managing the connection between the control electronics and the power bridge. It is compatible with the original mounting footprint, connector pinout, and backplane architecture of the SAFT drive chassis — meaning no mechanical modification to the drive cabinet is required during replacement. Engineers familiar with ABB SAFT drive architecture will find the board drop-in compatible with existing wiring harnesses and terminal blocks, eliminating rewiring risk and reducing commissioning time to a minimum.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful SAFT167APC board replacement is rarely a standalone action. In practice, drive modernization and retrofit projects involve a coordinated set of components working together within the same drive cabinet and control architecture. When replacing the SAFT167APC, maintenance teams frequently address adjacent components that have experienced similar wear, thermal stress, or obsolescence — consolidating the repair into a single planned maintenance window to avoid repeat shutdowns.

The SAFT105 and SAFT110 pulse encoder interface boards are commonly replaced alongside the SAFT167APC, as both boards operate within the same SAFT drive control section and are subject to identical thermal and electrical stress cycles. Similarly, the SAFT121 and SAFT122 I/O expansion boards — which handle digital and analog signal routing between the drive and the plant control system — are typically inspected and replaced during the same maintenance window to prevent cascading failures after the primary board swap.

For drives communicating with a supervisory PLC or DCS via fieldbus, the SAFT188 or SAFT189 communication adapter boards — supporting PROFIBUS-DP or Modbus RTU protocols respectively — may require reconfiguration or replacement to ensure uninterrupted data exchange after the power board swap. In installations where the SAFT drive is integrated with an ABB AC500 PLC or an S800 I/O system, verifying the integrity of the fieldbus connection between the drive and the controller is a mandatory commissioning step before returning the drive to service.

The SAFT drive’s internal auxiliary power supply module — typically a 24VDC supply board — should also be inspected during any board-level replacement, as power supply degradation is a common root cause of control board failures. Replacing a faulty SAFT auxiliary power supply board in the same service visit eliminates a frequent source of repeat failures and avoids a second planned outage. Additionally, the SAFT drive’s gate driver board and rectifier interface board are worth inspecting if the original fault was accompanied by overcurrent or IGBT-related fault codes, as these components share the same power section environment as the SAFT167APC.

For sites planning a longer-term migration from SAMI GS or SAMI Star drives to current ABB platforms such as the ACS880 or ACS580, the SAFT167APC replacement serves as a proven interim solution — restoring production immediately while the full drive migration project is scoped and budgeted. In such migration projects, components including the ACS880 control unit, I/O extension modules, and fieldbus adapter modules such as the FENA-21 Ethernet/IP adapter or FPBA-01 PROFIBUS-DP adapter are typically specified in parallel, allowing a phased transition that protects capital investment and minimizes operational risk.

Retrofit Guidance FAQ

Q: Does replacing the SAFT167APC require any rewiring of the drive cabinet?
A: No. The SAFT167APC uses the same connector pinout and backplane interface as the original board. Replacement is a direct board swap with no rewiring required. Verify that all connectors are fully seated and secured after installation before powering up the drive.

Q: Will the drive’s existing program parameters be retained after the board replacement?
A: Yes. Drive parameters are stored in the control unit or parameter memory module, not on the SAFT167APC power interface board. Replacing this board does not affect stored drive parameters. However, a full drive commissioning check — including reference signal verification, speed feedback confirmation, and fault log review — is strongly recommended after any board-level replacement.

Q: Is the SAFT167APC compatible with both SAMI GS and SAMI Star drive variants?
A: The SAFT167APC is designed for the SAFT drive family, which encompasses the SAMI GS and SAMI Star platforms. Confirm the drive’s exact model designation and hardware revision before ordering to ensure full compatibility. Contact TOPNLMS with your drive nameplate data for pre-order technical verification at no charge.

Q: What communication protocols does the SAFT drive support after this replacement?
A: The SAFT167APC does not affect the drive’s communication protocol configuration. The drive’s fieldbus communication — PROFIBUS-DP, Modbus RTU, or DeviceNet, depending on the installed adapter board — remains unchanged after the power board swap. If a communication adapter board is also being replaced, reconfigure the fieldbus node address and baud rate settings during commissioning and verify data exchange with the supervisory PLC or DCS before returning to production.

Q: How much physical space does the replacement board require?
A: The SAFT167APC matches the original board’s form factor exactly. No additional cabinet space or mounting hardware is required. The board installs into the existing drive chassis slot using the original fasteners, making it suitable for installations where cabinet space is constrained.

Q: What should be checked during post-replacement commissioning?
A: After installing the SAFT167APC, verify the following in sequence: (1) all connectors fully seated and secured; (2) drive powers up without active fault codes; (3) control signals — start, stop, speed reference — respond correctly to PLC or DCS commands; (4) motor current and voltage readings are within nameplate specifications under load; (5) fieldbus communication is active and data exchange with the supervisory system is confirmed; (6) drive fault log is cleared and monitored for a minimum of 24 hours of continuous operation before the maintenance window is formally closed.

Q: Can the SAFT167APC be used as a long-term spare for preventive maintenance programs?
A: Yes. TOPNLMS supports bulk procurement and standing purchase agreements for MRO and spare parts programs. Holding a verified spare SAFT167APC on-site is a recommended practice for facilities operating multiple SAFT-series drives, as it eliminates sourcing lead time in the event of an unplanned failure and reduces mean time to repair (MTTR) significantly.

Warranty Assurance

Every SAFT167APC supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes functional inspection to verify physical integrity, connector condition, and component-level quality. Boards showing signs of damage, corrosion, pin deformation, or non-conformance are excluded from stock and not offered for sale.

In the event of a warranty claim, TOPNLMS provides replacement or refund support within the warranty period. Customers are required to document the fault condition and return the defective board for inspection. Warranty claims are processed within 5 business days of receiving the returned item. Shipping costs for warranty returns are covered by TOPNLMS for confirmed manufacturing defects.

For procurement teams requiring documentation, TOPNLMS can provide a certificate of conformance, packing list, and commercial invoice with each shipment. Export from Xiamen is supported via DHL, FedEx, and UPS for international orders, with full tracking provided at the time of dispatch. Bulk orders and standing purchase agreements are available for MRO and spare parts programs requiring scheduled deliveries.

For pre-sales technical verification, compatibility confirmation, or urgent replacement inquiries, contact the TOPNLMS technical team directly. Response within 1 business day is standard for all technical inquiries.
