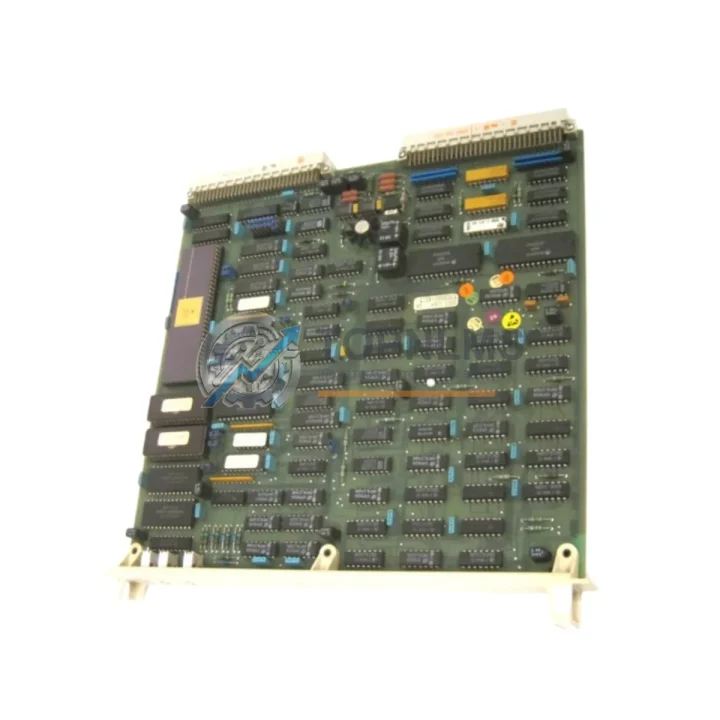

ABB DSCS116 57520001-BZ Replacement for INSUM DCS

Product Overview

ABB DSCS116 57520001-BZ Replacement for INSUM DCS: Seamless Migration & Smooth Transition

When your ABB INSUM distributed control system relies on the DSCS116 57520001-BZ synchronous communication board and the original unit reaches end-of-life, faces hardware failure, or is flagged as discontinued, the pressure to restore full system communication without extended downtime is immediate. The DSCS116 57520001-BZ is a critical synchronous communication interface module within the ABB INSUM DCS architecture, responsible for coordinating real-time data exchange between the process controller, I/O subsystems, and the supervisory network layer. TOPNLMS supplies verified replacement and upgrade units of the DSCS116 57520001-BZ, sourced from authorized channels and tested against ABB factory specifications, enabling your engineering team to execute a controlled, low-risk migration with minimal disruption to ongoing production.

The INSUM platform was designed for demanding industrial environments including power generation, oil & gas processing, pulp and paper, and heavy manufacturing. The DSCS116 synchronous communication board operates within the INSUM rack assembly alongside companion modules such as the DSDI110A digital input module, DSDO110A digital output module, DSAI130A analog input module, and DSAO120A analog output module. When replacing the DSCS116 57520001-BZ, engineers must verify that the replacement unit carries the correct firmware revision compatible with the installed INSUM processor board — typically the DSPC172 or DSPC176 CPU module — to ensure uninterrupted synchronous communication cycles. Our replacement units are supplied with documented revision traceability to support this verification step before installation.

Physical installation of the DSCS116 57520001-BZ follows the standard INSUM rack mounting procedure. The board slots into the designated backplane position within the S100 I/O system rack, and all edge connector contacts must be inspected and cleaned prior to seating the replacement board. No re-wiring of field terminals is required, as the DSCS116 interfaces through the backplane bus rather than direct field wiring — a significant advantage during emergency replacement scenarios where minimizing hands-on wiring time is critical. Power supply continuity from the DSPS110A or equivalent INSUM power supply module should be confirmed at the rack level before powering up the replacement board.

From a communication protocol perspective, the DSCS116 57520001-BZ supports the ABB INSUM proprietary synchronous serial communication protocol used to coordinate timing and data integrity across the distributed I/O network. When migrating from a failed or aging DSCS116 to a replacement unit, no changes to the application program loaded in the DSPC processor are required, provided the replacement board carries a compatible hardware revision. This means your existing control logic, function block configurations, and I/O mapping remain intact — a key factor in reducing commissioning time and avoiding costly re-engineering of the control application. For sites running ABB Master software or the ABB Advant OCS environment, the replacement DSCS116 will be recognized automatically upon system restart without requiring manual reconfiguration of the communication parameters.

For facilities undertaking a broader modernization initiative — migrating from the legacy INSUM or Advant OCS platform toward the ABB System 800xA or AC500 PLC architecture — the DSCS116 57520001-BZ replacement serves as a stabilization measure that keeps the existing system operational during the phased migration window. During this transition period, it is common to operate the legacy INSUM rack in parallel with new AC500 PM595 or PM591 processor modules connected via PROFIBUS DP or Modbus TCP gateways, allowing gradual I/O migration without a full cutover. The DSCS116 replacement ensures the legacy communication backbone remains stable throughout this parallel-run phase, protecting production continuity while the new control architecture is validated.

Procurement teams evaluating the DSCS116 57520001-BZ replacement should note that TOPNLMS maintains ready stock of this module and associated INSUM system components, with standard lead times of 3–7 business days for international shipments from our Xiamen facility. Each unit undergoes functional testing prior to dispatch, and shipments are accompanied by a test report and packing list. All units are covered by a 12-month warranty from the date of delivery, with direct technical support available for installation and commissioning queries.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DSCS116 57520001-BZ replacement rarely occurs in isolation. In most INSUM and Advant OCS installations, the synchronous communication board works in close coordination with a broader set of rack-resident modules. During the replacement or migration process, engineering teams frequently identify adjacent components that require simultaneous attention to ensure system-wide stability.

The DSPC172 and DSPC176 processor modules are the most common CPU counterparts to the DSCS116 in INSUM rack configurations. If the processor module shows signs of aging — intermittent faults, slow scan cycle times, or communication timeouts — replacing it alongside the DSCS116 57520001-BZ during the same maintenance window eliminates the risk of a secondary failure shortly after the communication board is restored. Similarly, the DSMB170 memory board, which stores the application program and configuration data for the DSPC processor, should be inspected and backed up before any rack-level intervention.

On the I/O side, the DSDI110A digital input module and DSDO110A digital output module are standard companions in INSUM S100 racks. If field signal integrity issues have been observed alongside the communication fault, these modules should be tested as part of the same diagnostic cycle. Analog signal chains relying on the DSAI130A analog input module or DSAO120A analog output module are equally worth verifying, particularly in process control applications where 4–20 mA loop accuracy is critical to product quality or safety interlock performance.

For sites integrating the legacy INSUM system with modern supervisory networks, the DSSB110 serial communication board or DSCS140 communication module may be present in the rack to handle gateway functions between the INSUM bus and external PROFIBUS, Modbus, or Ethernet networks. Ensuring these gateway modules remain operational during and after the DSCS116 replacement is essential to maintaining SCADA visibility and historian data continuity throughout the maintenance event.

Power distribution within the rack is managed by the DSPS110A power supply module. A failing or marginal power supply is a common root cause of intermittent communication board faults, and replacing the DSCS116 without verifying the power supply output voltages and ripple characteristics may result in a repeat failure. TOPNLMS stocks the DSPS110A and compatible INSUM rack power supply modules alongside the DSCS116 57520001-BZ, enabling a consolidated procurement order that covers all at-risk components in a single shipment.

Retrofit Guidance FAQ

Q: Do I need to re-wire field terminals when replacing the DSCS116 57520001-BZ?
A: No. The DSCS116 interfaces exclusively through the S100 backplane bus. There are no direct field wiring connections on this board. Replacement requires only rack slot extraction of the failed unit and insertion of the replacement, followed by a system restart.

Q: Will my existing ABB Master or Advant OCS application program need to be reloaded or modified?
A: In most cases, no. Provided the replacement DSCS116 carries a hardware revision compatible with the installed DSPC processor, the application program stored on the DSMB170 memory board remains valid and will be executed normally after restart. TOPNLMS supplies revision documentation with each unit to support pre-installation compatibility verification.

Q: What communication protocol does the DSCS116 57520001-BZ use, and is it affected by the replacement?
A: The DSCS116 uses the ABB INSUM proprietary synchronous serial communication protocol, which is managed at the system level by the DSPC processor. The replacement board does not alter the protocol configuration. Communication parameters, node addresses, and timing settings are retained in the processor and memory board and are not affected by the board swap.

Q: How much physical space does the replacement DSCS116 require in the rack?
A: The replacement DSCS116 57520001-BZ is dimensionally identical to the original and occupies the same single slot position in the S100 I/O rack. No rack modifications, additional mounting hardware, or adjacent slot clearance changes are required.

Q: Can the DSCS116 57520001-BZ replacement be used during a phased migration to ABB System 800xA or AC500?
A: Yes. The replacement DSCS116 is specifically suited to stabilize the legacy INSUM system during a parallel-run migration phase. It maintains full synchronous communication integrity within the existing rack while new AC500 or 800xA hardware is commissioned in parallel, allowing a controlled, validated cutover without forcing an emergency full-system replacement.

Q: What testing is performed on replacement units before shipment?
A: Each DSCS116 57520001-BZ unit supplied by TOPNLMS undergoes functional communication testing and visual inspection prior to dispatch. A test report is included with the shipment. Units that do not pass functional verification are not dispatched.

Warranty Assurance

Every DSCS116 57520001-BZ replacement unit supplied by TOPNLMS is covered by a 12-month warranty from the confirmed delivery date. This warranty covers hardware defects, communication failures attributable to the module itself, and any functional non-conformance identified during installation and commissioning. In the event of a warranty claim, TOPNLMS will arrange replacement dispatch or repair within an agreed response timeframe, with priority handling available for critical production environments.

Pre-shipment testing is conducted on every unit. Shipments include a functional test report, packing list, and revision documentation. Export packaging is designed to meet IEC 60068 vibration and shock standards for electronic module transport, ensuring the unit arrives in the same condition it left our facility.

For procurement teams requiring additional assurance, TOPNLMS can provide inspection reports, revision certificates, and batch traceability documentation upon request. Volume orders and long-term supply agreements for INSUM system spares are supported, with dedicated account management for MRO and capital project procurement teams.

Contact our technical sales team to confirm stock availability, request a quotation, or discuss your specific migration requirements before placing an order.
