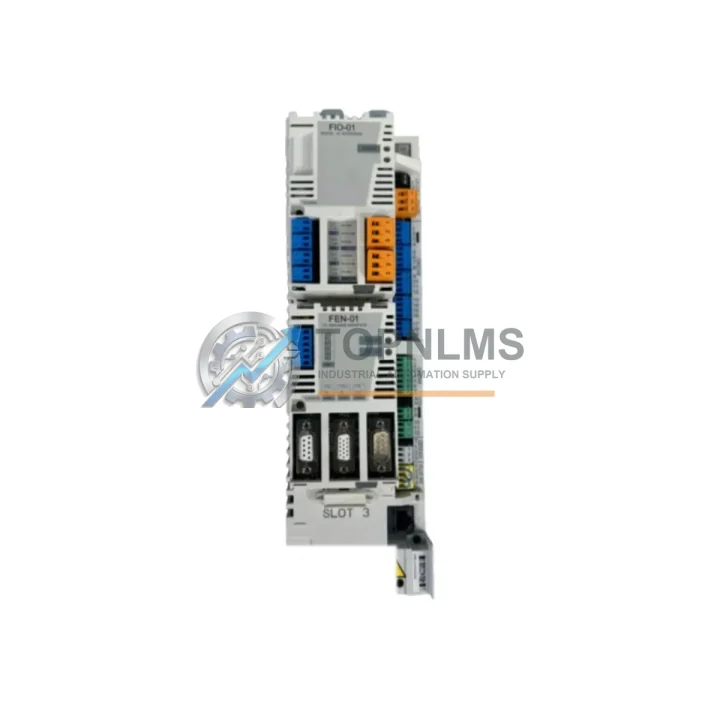

ABB ACSM1-04AM-04A0-4 Replacement for ACSM1 Series

Product Overview

ABB ACSM1-04AM-04A0-4 Replacement for ACSM1 Series: Smooth Transition & Legacy System Compatibility

When your existing ABB ACSM1-04AM-04A0-4 servo drive reaches end-of-life or becomes unavailable through standard distribution channels, the migration path does not have to mean a full system overhaul. The ACSM1-04AM-04A0-4 is a 400V, 4A output servo drive from ABB’s ACSM1 motion control series, designed for precision axis control in machine tool, packaging, printing, and general industrial automation applications. At TOPNLMS, we supply tested, verified units that allow engineers and maintenance teams to execute a like-for-like replacement or a controlled upgrade without rewriting motion programs or rewiring control cabinets from scratch.

The ACSM1 series was engineered to integrate tightly with ABB’s broader automation ecosystem. When replacing the ACSM1-04AM-04A0-4, engineers typically find that the existing 24VDC control power supply, the resolver or encoder feedback wiring, and the STO (Safe Torque Off) safety circuit connections remain fully compatible. The drive’s standard I/O terminal layout — including digital inputs for enable, fault reset, and speed reference — matches the predecessor wiring scheme, significantly reducing rewiring time during a scheduled maintenance window or emergency breakdown replacement.

For sites running ABB’s MINT motion programming environment or using the drive’s built-in positioning and electronic gearing functions, the parameter structure of a replacement ACSM1-04AM-04A0-4 unit is compatible with backup files created from the original drive. Parameters can be restored via the ABB DriveStudio or Drive Composer tool over the RS-232 or USB service port, eliminating the need to manually re-enter axis tuning data, ramp times, or application-specific motion profiles. This is a critical advantage when minimizing production downtime is the primary concern.

In multi-axis systems, the ACSM1-04AM-04A0-4 is commonly installed alongside other ACSM1 family members such as the ACSM1-04AM-02A0-4 (2A variant) and the ACSM1-04AM-09A0-4 (9A variant), sharing the same mechanical form factor and DIN rail or panel mounting footprint. This means a replacement unit slots directly into the existing control cabinet without requiring new mounting brackets, cable duct modifications, or changes to the cabinet door layout. The DC bus sharing capability within the ACSM1 family also remains intact, allowing regenerative energy from decelerating axes to be redistributed across the drive group — a feature that must be preserved during any replacement to avoid nuisance overvoltage trips.

Communication architecture is another area where the ACSM1-04AM-04A0-4 replacement delivers seamless continuity. The drive supports PROFIBUS-DP, CANopen, and EtherCAT fieldbus options via plug-in adapter modules. If the existing installation uses an RPBA-01 PROFIBUS adapter or an RECA-01 EtherCAT adapter, these modules can be transferred directly from the old drive to the replacement unit, preserving the fieldbus node address, baud rate settings, and process data mapping without any changes to the PLC program or network configuration. This is particularly valuable in systems where the master PLC — such as an ABB AC500 series controller or a Siemens S7-300 — manages multiple drives on a shared fieldbus segment.

For sites transitioning from older ABB servo platforms such as the MicroFlex or MotiFlex series, the ACSM1-04AM-04A0-4 represents a forward-compatible upgrade path. While direct parameter migration between legacy platforms and the ACSM1 is not automatic, the drive’s commissioning wizard and application macros significantly reduce the engineering effort required to replicate existing motion behavior. The motor feedback interface supports both resolver and incremental encoder inputs, covering the majority of servo motor types already installed in the field, including ABB BSM and 8C series servo motors.

Power wiring follows standard IEC practices. The drive accepts 3-phase 380–480VAC input at 50/60Hz, and the output terminals connect directly to the servo motor using the existing cable and connector arrangement in most installations. The integrated EMC filter and brake chopper output (for connection to an external braking resistor) are retained in the replacement unit, ensuring that the drive’s electromagnetic compatibility performance and dynamic braking behavior match the original installation without additional components.

From a procurement and supply chain perspective, TOPNLMS maintains stock of the ACSM1-04AM-04A0-4 and related ACSM1 series components to support both planned maintenance schedules and unplanned breakdown situations. Each unit undergoes functional testing prior to dispatch, covering power-on self-test, I/O verification, and communication port integrity. Units are shipped in anti-static protective packaging with full documentation. Standard lead time from order confirmation to dispatch is 1–3 business days for in-stock items, with express international shipping available to minimize total downtime duration.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ACSM1-04AM-04A0-4 replacement rarely involves the drive alone. In practice, the migration process often surfaces related components that benefit from simultaneous attention. The RPBA-01 PROFIBUS-DP adapter module, if already installed on the original drive, can be reused on the replacement unit — but if it shows signs of wear or communication instability, sourcing a new adapter at the same time as the drive eliminates a second maintenance intervention. Similarly, the RECA-01 EtherCAT adapter and RCAN-01 CANopen adapter are worth inspecting during the changeover.

The 24VDC control power supply feeding the ACSM1-04AM-04A0-4 and its neighboring drives in the cabinet — often an ABB CP-D 24/1.0 or equivalent DIN rail power supply — should be verified for output voltage stability and ripple, as a degraded power supply can cause intermittent drive faults that are misdiagnosed as drive failures. If the cabinet also houses an ABB ACS355 or ACS580 variable frequency drive on auxiliary axes, those units’ firmware and parameter sets should be backed up before any cabinet work begins.

For the servo motor side, the feedback cable connecting the motor encoder or resolver to the ACSM1-04AM-04A0-4 is a common wear item in high-cycle applications. Replacing the feedback cable and its D-sub or M23 connector at the drive end during the drive swap prevents encoder signal errors from appearing after recommissioning. ABB BSM series servo motors paired with this drive typically use a 15-pin D-sub resolver connector at the drive terminal — a detail that should be confirmed against the existing wiring diagram before ordering replacement cables.

If the system uses an ABB Panel Builder or CP600 HMI for operator interface, the drive’s fieldbus node address and process data word mapping should be documented before removal and verified after installation of the replacement unit. In systems where the ACSM1-04AM-04A0-4 is controlled by an ABB AC500 PLC via PROFIBUS, the GSD file and hardware configuration in the PLC project do not need to be modified, as the replacement drive presents an identical fieldbus profile to the master controller.

Terminal blocks and signal isolators in the I/O wiring — particularly on analog speed reference inputs (0–10V or 4–20mA) — are worth inspecting for oxidation or loose terminations during the replacement procedure. A Phoenix Contact or Weidmüller signal isolator on the reference input channel can prevent ground loop interference from affecting the new drive’s speed regulation accuracy after commissioning.

Retrofit Guidance FAQ

Q: Can I restore my original drive parameters to the replacement ACSM1-04AM-04A0-4 without re-commissioning from scratch?
A: Yes. If a parameter backup was saved using ABB DriveStudio or Drive Composer from the original unit, the backup file can be restored to the replacement drive via the RS-232 or USB service port. Verify that the firmware version of the replacement unit is compatible with the backup file version before restoring. Minor firmware differences may require a parameter comparison and selective update rather than a full restore.

Q: Will the existing STO safety wiring need to be modified?
A: No. The ACSM1-04AM-04A0-4 uses a standard two-channel STO input (STO1 and STO2) with 24VDC activation. The terminal assignment and wiring polarity are consistent across ACSM1 series units, so the existing safety relay or safety PLC output wiring connects directly to the replacement drive without modification.

Q: What fieldbus configuration changes are needed after replacing the drive?
A: If the fieldbus adapter module (RPBA-01, RECA-01, or RCAN-01) is transferred from the original drive to the replacement unit, the node address and baud rate stored in the adapter are retained. No changes to the PLC hardware configuration or network topology are required. If a new adapter module is used, the node address must be set to match the original before connecting to the fieldbus network.

Q: The replacement drive has a different firmware version. Will this affect my motion application?
A: In most cases, newer firmware versions are backward compatible with existing parameter sets and application macros. However, it is recommended to review the ABB ACSM1 firmware release notes for any parameter behavior changes between versions. Critical motion parameters — including position loop gains, velocity feed-forward, and electronic gearing ratios — should be verified on a test cycle before returning the axis to production.

Q: How much physical space does the replacement unit require in the control cabinet?
A: The ACSM1-04AM-04A0-4 replacement unit has the same mechanical dimensions as the original. No changes to cable duct routing, mounting rail spacing, or cabinet door clearance are required. Ensure that the cabinet ventilation airflow path above and below the drive is unobstructed after installation, as the drive relies on natural convection or forced air cooling depending on the installation orientation.

Warranty Assurance

Every ACSM1-04AM-04A0-4 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a structured pre-shipment inspection that includes power-on self-test, control I/O functional verification, communication port integrity check, and visual inspection of all connectors, terminal blocks, and the cooling assembly. Units that do not pass all inspection criteria are quarantined and not dispatched.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch or repair service with a target response time of 2 business days from claim confirmation. Customers are required to provide a fault description and, where possible, a fault code log extracted from the drive’s event history via DriveStudio or Drive Composer. This information allows our technical team to assess whether the fault is drive-related or attributable to an external cause such as supply voltage disturbance, motor insulation failure, or incorrect parameter configuration.

Warranty coverage includes manufacturing defects, component failures under normal operating conditions, and firmware-related functional issues confirmed by our technical team. It does not cover damage resulting from incorrect installation, supply voltage outside the specified range, mechanical impact, or unauthorized modification of the drive hardware or firmware.

For procurement teams managing planned maintenance schedules, TOPNLMS offers advance stock reservation for critical spare units, ensuring that a verified replacement ACSM1-04AM-04A0-4 is available when needed without lead time uncertainty. Contact our technical sales team to discuss stocking arrangements, volume pricing, and expedited shipping options for time-critical applications.
