ABB ACS141-K37-1 Replacement for ACS141 Series

Product Overview

ABB ACS141-K37-1 Replacement for ACS141 Series: Smooth Migration from Legacy Drives

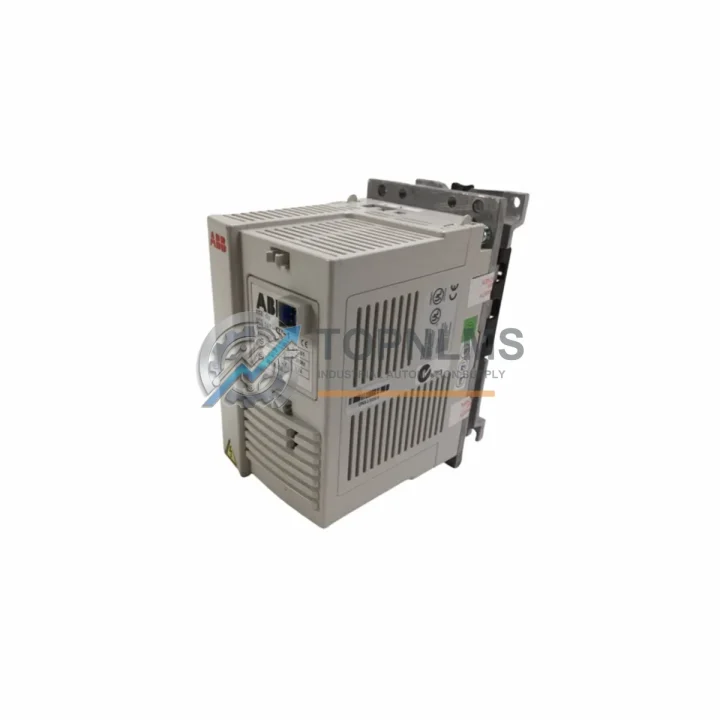

The ABB ACS141-K37-1 is a compact 0.37 kW single-phase input micro variable frequency drive (VFD) from ABB’s ACS141 Series — a product line that has reached end-of-life status in ABB’s current portfolio. For facilities that still operate legacy machinery built around the ACS141 platform, sourcing a verified replacement unit is often the fastest and most cost-effective path to restoring production without undertaking a full control system redesign.

TOPNLMS maintains stock of the ACS141-K37-1 specifically to support customers managing aging automation infrastructure. Whether you are replacing a failed unit on a packaging line, a conveyor system, or a small pump and fan application, our pre-shipment tested inventory allows you to restore operation with minimal downtime and without the engineering overhead of a full drive migration project.

For engineers evaluating a longer-term upgrade path, the ACS141-K37-1 also serves as a direct interim replacement while a migration to ABB’s current ACS355 or ACS310 compact drive series is planned and budgeted. The ACS355-01E-02A4-2, for example, covers the same 0.37 kW power range with single-phase input compatibility, improved EMC performance, and a built-in Modbus RTU communication interface — making it a natural successor for applications where the ACS141 is no longer serviceable.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful drive replacement or migration involves more than swapping the VFD unit itself. Depending on the age and configuration of the existing control cabinet, several supporting components may need to be verified or replaced in parallel to ensure system integrity and long-term reliability.

In many ACS141-era installations, the drive is wired directly to a three-phase AC induction motor via a basic contactor and overload relay arrangement. When replacing the ACS141-K37-1, it is advisable to inspect the ABB AF series contactor and MS116 manual motor starter in the same cabinet, as these components share the same service life and may be approaching end-of-life simultaneously. Replacing them as a set reduces the risk of a secondary failure shortly after the drive is restored.

For applications where the ACS141 was controlled via a simple potentiometer or fixed-speed reference signal, migrating to the ACS355 opens the possibility of integrating a Modbus RTU communication module or an ABB RPBA-01 PROFIBUS adapter, allowing the drive to be supervised and commanded from a PLC or SCADA system without additional analog wiring. This is particularly valuable in facilities that are progressively modernizing their control architecture toward a centralized ABB AC500 PLC or Siemens S7-1200 platform.

In cabinet installations where space is constrained, the ACS141-K37-1’s compact DIN rail footprint is a key advantage. If the upgrade path leads to an ACS355, the similar physical dimensions mean that existing cable ducts, DIN rails, and terminal block arrangements — including Phoenix Contact or Weidmüller screw terminal blocks — can typically be retained without modification. This significantly reduces installation labor and the risk of wiring errors during commissioning.

Where the legacy system included an ABB CDP312R control panel for local parameter adjustment, this panel is not compatible with the ACS355 or ACS310 series. Customers migrating to the newer platform should plan for an ACS-CP-C assistant control panel or configure the drive via the ABB Drive Composer PC tool using a standard USB-to-RS485 programming cable. TOPNLMS can advise on the correct panel and cable accessories for your specific upgrade scenario.

For installations in environments with significant electrical noise — such as those near welding stations, large motor starters, or variable-speed crane drives — adding an ABB NOCH0100-60 EMC filter or equivalent line filter at the drive input is strongly recommended. This protects the replacement ACS141-K37-1 (or its ACS355 successor) from conducted interference that could cause nuisance trips or premature component degradation.

Retrofit Guidance FAQ

Q1: Can the ACS141-K37-1 be wired directly in place of a failed ACS141 unit without reprogramming?
Yes. The ACS141-K37-1 is a direct replacement for other ACS141 series units of the same power rating. Terminal assignments for the main power input (L1, L2/N), motor output (U, V, W), and control I/O are identical. In most cases, the replacement can be completed by a qualified electrician without any parameter reprogramming, as the factory default settings are suitable for basic fixed-speed or potentiometer-controlled applications. If the original unit had customized parameters, these should be documented before removal and re-entered on the replacement unit.

Q2: Is the ACS141-K37-1 compatible with my existing PLC analog output signal?
The ACS141-K37-1 accepts a standard 0–10 V DC or 0/4–20 mA analog reference signal on its control terminals, which is compatible with the analog output modules of most PLC platforms including ABB AC500, Siemens S7-200/S7-300, Mitsubishi FX series, and Omron CP/CJ series. No signal conditioning or isolation is required in standard installations, though a signal isolator is recommended in environments with significant ground potential differences between the PLC panel and the drive cabinet.

Q3: What should I check regarding physical space and mounting before ordering?
The ACS141-K37-1 mounts on a standard 35 mm DIN rail and requires a minimum clearance of 50 mm above and below the unit for adequate ventilation. Verify that the existing cabinet cutout and DIN rail segment can accommodate the unit’s dimensions (approximately 68 mm W × 142 mm H × 130 mm D). If the original unit was panel-mounted using screws rather than DIN rail, a DIN rail adapter bracket may be required. TOPNLMS can provide dimensional drawings upon request to confirm fit before shipment.

Q4: How do I handle the transition if the ACS141 series is no longer available long-term?
For facilities that rely on ACS141 drives across multiple machines, we recommend a two-phase approach: first, secure a buffer stock of ACS141-K37-1 units from TOPNLMS to cover near-term breakdown replacement needs; second, engage your automation engineering team to evaluate a phased migration to the ACS355 or ACS310 series, which offers a compatible power range, improved diagnostics, and active manufacturer support. TOPNLMS can supply both the legacy replacement units and the current-generation upgrade drives, and our technical team can assist with cross-reference documentation to support your migration planning.

Warranty Assurance

Every ABB ACS141-K37-1 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This warranty covers manufacturing defects and component failures under normal operating conditions as defined in ABB’s product documentation. Units that exhibit failure within the warranty period will be replaced or credited at TOPNLMS’s discretion, subject to inspection and confirmation that the failure was not caused by installation error, overvoltage, or environmental conditions outside the product’s rated specification.

Prior to shipment, each unit undergoes a pre-shipment inspection protocol that includes visual examination for physical damage, verification of firmware version and factory parameter settings, and basic power-on functional testing where applicable. Units are packed in anti-static protective packaging with original or equivalent documentation.

TOPNLMS maintains ongoing stock of ACS141 series drives and related ABB automation components to support both emergency breakdown replacement and planned maintenance programs. We offer consolidated shipping for multi-line orders, competitive lead times for urgent requirements, and technical consultation to help identify compatible alternatives when specific variants are temporarily out of stock. For procurement inquiries, volume pricing, or technical support, contact us at [email protected] or +86 18359293191.
