ABB ACS-CP-A Replacement/Upgrade Solution for ACS Series

Product Overview

ABB ACS-CP-A Replacement/Upgrade Solution for ACS Series: Smooth Transition from Legacy Drive HMI Systems

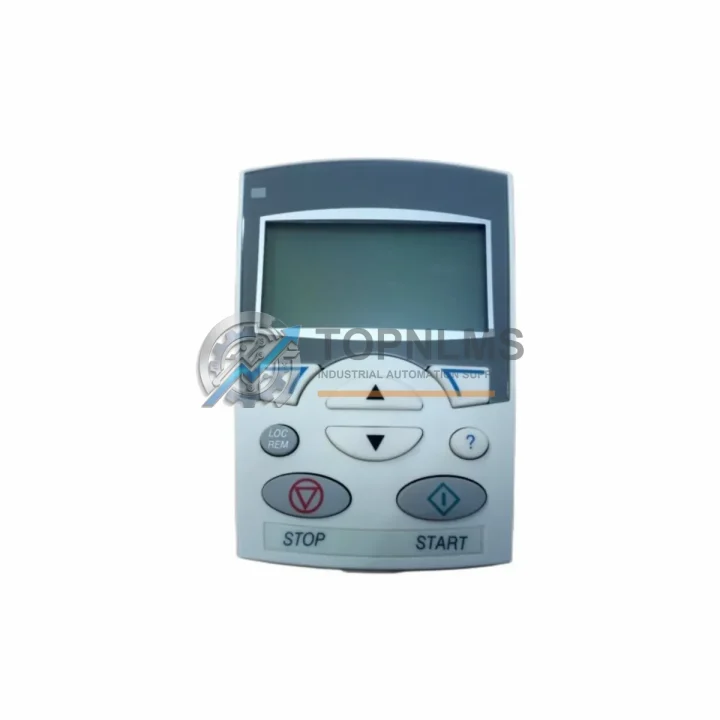

The ABB ACS-CP-A is the standard remote keypad and HMI control panel designed for ABB’s ACS Series variable frequency drives, including the widely deployed ACS550, ACS350, and ACS355 drive families. As industrial facilities face the challenge of maintaining aging drive systems — many of which were commissioned over a decade ago — the ACS-CP-A serves as a direct, plug-and-play replacement for failed, damaged, or end-of-life control panels without requiring reprogramming of the drive’s core parameters.

For plants running legacy ABB ACS Series drives where the original keypad has become unresponsive, suffered display failure, or been physically damaged, sourcing a verified ACS-CP-A replacement is the fastest path to restoring full drive operability. The panel connects via the standard RJ45 communication port on the drive front cover, maintaining compatibility with the drive’s existing parameter set, fault history, and I/O configuration — eliminating the need for a full drive replacement or costly re-commissioning.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ACS-CP-A panel replacement is rarely a standalone action — it typically occurs within a broader drive system maintenance or modernization project. When upgrading or retrofitting an ABB ACS Series drive installation, engineers commonly address several interconnected components to ensure system reliability and long-term operability.

In many retrofit scenarios, the ACS-CP-A is replaced alongside the drive’s NINT-02 or RDNA-01 fieldbus adapter modules, which handle PROFIBUS-DP or DeviceNet communication between the drive and the plant’s PLC or DCS. If the existing fieldbus adapter has reached end-of-life or is no longer supported by the control system’s network configuration, replacing it in the same maintenance window avoids a second shutdown. Similarly, the RAIO-01 analog I/O extension module — used to expand the drive’s analog input/output capacity for process feedback signals — is frequently inspected and replaced during panel-level maintenance.

For installations where the ACS Series drive is controlled by an ABB AC500 PLC or a third-party controller via Modbus RTU or PROFIBUS, verifying the integrity of the communication cable assembly between the PLC I/O rack and the drive’s fieldbus port is a standard step. Facilities running ABB Advant OCS or Freelance DCS platforms that interface with ACS drives through hardwired analog signals (4–20 mA speed reference, digital run/stop commands) should also confirm terminal block wiring integrity at the XTIO terminal module on the drive’s I/O board.

Where the ACS-CP-A is mounted remotely on a control cabinet door — a common arrangement in pump stations, HVAC plant rooms, and conveyor control panels — the ACS-CP-A panel mounting kit with extension cable must be verified for cable length and connector condition. Degraded extension cables are a frequent cause of intermittent display faults that are misdiagnosed as keypad failures. In multi-drive cabinet installations, the ACS550 or ACS355 drive module itself, the input choke, and the brake chopper unit should be assessed for remaining service life when the HMI panel is being replaced, to consolidate downtime into a single planned maintenance event.

For facilities transitioning from older ACS400 or ACS600 series drives to current ACS550 or ACS355 platforms, the ACS-CP-A is part of the new drive’s standard HMI interface — and the migration project typically also involves replacing SNAT 7xx series I/O boards, updating the DDCS fiber-optic communication links, and reconfiguring the ABB DriveWindow or Drive Composer PC tool connection for the new drive generation.

Retrofit Guidance FAQ

Q: Will the ACS-CP-A work with my existing ACS550 drive without any parameter reconfiguration?
A: Yes. The ACS-CP-A connects via the standard RJ45 panel bus port and reads the drive’s existing parameter set immediately upon connection. No parameter re-entry is required for a like-for-like panel replacement. The drive’s fault history, motor data, and application macros are stored in the drive’s internal memory, not the keypad.

Q: Can I use the ACS-CP-A to copy parameters from a failed drive to a replacement drive unit?
A: Yes. The ACS-CP-A supports the parameter upload (drive → panel) and download (panel → drive) function. This is the standard ABB procedure for cloning drive configurations during drive unit replacement, eliminating manual parameter re-entry on site.

Q: Is the ACS-CP-A compatible with ACS350 and ACS355 drives as well as ACS550?
A: Yes. The ACS-CP-A is the common HMI panel across the ACS310, ACS350, ACS355, and ACS550 drive families. Physical connector, communication protocol, and display interface are identical across these platforms.

Q: What is the wiring requirement for remote panel mounting?
A: Remote mounting uses the ABB standard RJ45 extension cable (available in 1 m, 3 m, and 5 m lengths). No additional power supply is required — the panel is powered through the panel bus cable from the drive. The maximum recommended cable length for reliable communication is 3 metres in electrically noisy environments.

Q: Will replacing the ACS-CP-A affect the drive’s PROFIBUS or Modbus fieldbus communication?
A: No. Fieldbus communication is handled by the drive’s fieldbus adapter module (e.g., NPBA-12 for PROFIBUS, NMBA-01 for Modbus RTU), which is independent of the HMI panel. Replacing the ACS-CP-A does not interrupt or reconfigure fieldbus communication.

Q: What physical space does the ACS-CP-A require in the control cabinet?
A: When mounted directly on the drive, the ACS-CP-A occupies the existing drive front cover slot — no additional cabinet space is needed. For door-mounted remote installation, a standard 92 mm × 92 mm panel cutout is required, using the ABB remote mounting kit.

Warranty Assurance

Every ABB ACS-CP-A unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including display operation, keypad response, panel bus communication check, and parameter upload/download function test. Units that do not pass full functional testing are not shipped.

In the event of a warranty claim, TOPNLMS provides replacement unit dispatch or full refund within the warranty period, subject to fault confirmation. Our technical support team is available to assist with installation verification, compatibility confirmation, and fault diagnosis to minimize your system downtime. Typical order processing and dispatch is completed within 1–3 business days, with express shipping options available for urgent plant maintenance requirements.

For volume procurement, spare parts stocking programs, or project-based supply agreements for ACS Series drive components, please contact our industrial sales team directly.
