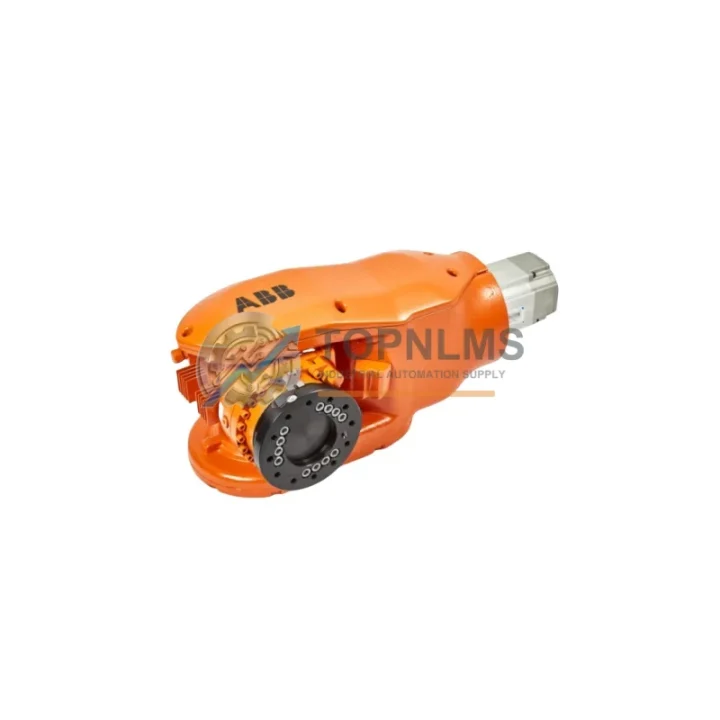

ABB 3HAC048315-001 IRB6700 Wrist Assembly Replacement

Product Overview

ABB 3HAC048315-001 IRB6700 Wrist Assembly Replacement: Seamless Transition & Compatible Upgrade

When your ABB IRB6700 series robot experiences wrist assembly failure or reaches end-of-service life, unplanned downtime can cascade across your entire production line. The ABB 3HAC048315-001 wrist assembly — cross-referenced as 3HAC048315-002 and 3HAC059653-002 — is a precision mechanical component engineered for the IRB6700 family, covering payload variants from 150 kg to 300 kg. This listing provides a direct replacement and upgrade solution designed to restore full robot functionality with minimal intervention, preserving your existing wiring harness routing, axis-6 motor mounting geometry, and end-effector flange interface.

The IRB6700 platform is widely deployed in automotive body-in-white welding, heavy-duty material handling, foundry tending, and machine loading applications. A wrist assembly failure on this robot — whether caused by gear wear, seal degradation, lubrication breakdown, or mechanical impact — demands a replacement part that matches the original dimensional envelope and torque specifications precisely. The 3HAC048315-001 assembly maintains full dimensional compatibility with the IRB6700 wrist housing, ensuring that no structural modifications to the robot arm or tooling bracket are required during retrofit.

For facilities running multiple IRB6700 units, maintaining a spare 3HAC048315-001 wrist assembly in your critical-parts inventory is a recognized best practice. Alongside this assembly, engineers typically stock the ABB 3HAC029157-001 axis-6 motor, the 3HAC026253-001 gear unit, and the 3HAC028357-001 SMB (serial measurement board) as part of a comprehensive wrist-zone spare kit. When the wrist assembly is replaced, it is also advisable to inspect and, if necessary, replace the 3HAC031683-001 wrist harness cable and the 3HAC026388-001 axis-6 brake resistor to prevent secondary failures during recommissioning.

The replacement procedure for the 3HAC048315-001 follows ABB’s standard IRB6700 product manual (document 3HAC044266-001). Axis-6 must be brought to the calibration position before disassembly. The existing axis-6 motor (3HAC029157-001) can be retained if it passes insulation resistance and encoder integrity checks, significantly reducing total replacement cost. The wrist flange interface is compatible with all standard ISO 9283 tooling plates used on the IRB6700, meaning your existing grippers, welding torches, or material-handling tools can be remounted without modification.

From a system architecture perspective, the IRB6700 communicates with its IRC5 controller cabinet via the DSQC 662 (3HAC026254-001) drive unit and the DSQC 1000 (3HAC044168-001) main computer. Neither the controller firmware nor the RAPID program requires modification when performing a like-for-like wrist assembly replacement. If your facility is simultaneously upgrading from an older IRC5 single-cabinet to an IRC5 compact or migrating robot programs to RobotStudio 2023 or later, the wrist assembly replacement can be scheduled within the same maintenance window to minimize total downtime exposure.

For multi-robot cells where the IRB6700 operates alongside ABB IRB6640 or IRB6650S units, the wrist assembly design differs between platforms — the 3HAC048315-001 is specific to the IRB6700 and is not interchangeable with IRB6640 wrist components such as the 3HAC025338-001. Confirm the robot model plate before ordering. The IRB6700 model plate is located on the lower arm and displays the full model designation, serial number, and manufacturing date.

All units supplied through TOPNLMS undergo pre-shipment functional inspection including dimensional verification of the flange face, gear backlash measurement, and seal integrity check. Each assembly is individually packaged with anti-static foam and moisture-barrier film to protect precision bearing surfaces during international transit. Standard lead time is 3–7 business days for in-stock units, with express air freight available to minimize plant downtime. Export documentation including commercial invoice, packing list, and certificate of origin (Germany) is provided as standard.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IRB6700 wrist assembly replacement is rarely a single-part operation. During the same maintenance window, experienced field engineers typically address the complete wrist zone to prevent repeat failures. The ABB 3HAC029157-001 axis-6 motor should be tested and replaced if encoder feedback shows drift or if the motor has exceeded its recommended service interval. The 3HAC026253-001 axis-6 gear unit is the primary wear component adjacent to the wrist assembly and should be inspected for backlash beyond ABB’s published tolerance. The 3HAC031683-001 wrist harness cable routes through the wrist housing and is subject to flex fatigue; replacement during a wrist overhaul eliminates a common source of post-maintenance faults.

At the controller level, facilities upgrading aging IRC5 cabinets may simultaneously replace the DSQC 662 (3HAC026254-001) drive module or the DSQC 1000 (3HAC044168-001) main computer board to bring the system to a current firmware baseline. For cells where the IRB6700 communicates with a Profibus or PROFINET fieldbus, the DSQC 688 (3HAC025779-001) fieldbus adapter should be verified for compatibility with the updated controller firmware. If the robot is integrated into a safety-rated cell, the DSQC 643 (3HAC024488-001) safety board configuration should be backed up before any hardware replacement and restored post-commissioning. Finally, for facilities that have not recently serviced the SMB unit, the 3HAC028357-001 serial measurement board replacement can be bundled with the wrist assembly order to consolidate shipping and reduce total maintenance cost.

Retrofit Guidance FAQ

Q: Do I need to recalibrate the robot after replacing the 3HAC048315-001 wrist assembly?
A: Yes. Axis-6 fine calibration is required after wrist assembly replacement. Use the ABB calibration pendulum or CalibWare software with the IRC5 controller. The calibration offset values should be recorded from the original robot before disassembly and restored post-installation.

Q: Is the wiring harness compatible with the replacement assembly?
A: The 3HAC048315-001 uses the same harness routing and connector positions as the 3HAC048315-002 and 3HAC059653-002. The existing 3HAC031683-001 wrist harness can be reused if it passes visual and continuity inspection. No re-pinning or adapter cables are required.

Q: Will my RAPID programs need to be modified?
A: No program modification is required for a like-for-like wrist assembly replacement. Tool data (tooldata) and work object definitions (wobjdata) remain valid. If the replacement is combined with a payload or reach variant change, tool center point (TCP) recalibration will be necessary.

Q: Does the replacement assembly fit within the existing robot cell guarding and safety fence clearances?
A: Yes. The 3HAC048315-001 maintains the identical outer envelope of the IRB6700 wrist zone. No modifications to safety fencing, light curtain positioning, or area scanner zones are required.

Q: What communication protocols are affected during replacement?
A: None. The wrist assembly is a purely mechanical component. DeviceNet, EtherNet/IP, PROFINET, or Profibus communication between the IRC5 controller and the plant PLC or SCADA system is unaffected. I/O signal mapping and fieldbus node addresses remain unchanged.

Q: Can this assembly be used as a long-term spare for multiple IRB6700 units?
A: Yes. The 3HAC048315-001 is compatible across all IRB6700 payload variants (150 kg through 300 kg). A single spare unit can serve as insurance stock for an entire fleet of IRB6700 robots, reducing per-unit spare inventory cost.

Warranty Assurance

Every ABB 3HAC048315-001 wrist assembly supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a documented pre-shipment inspection covering dimensional verification, gear mesh quality, seal integrity, and surface finish of the axis-6 flange face. Inspection records are available upon request and can be included with the shipment documentation for your maintenance records.

In the event of a warranty claim, TOPNLMS provides a direct replacement unit as the primary remedy, with a target response time of 1 business day for claim acknowledgment. Return freight for confirmed warranty cases is covered by TOPNLMS. Replacement units are dispatched from our Xiamen warehouse with priority shipping to minimize your production impact.

For procurement teams requiring formal quality documentation, we can provide a certificate of conformity, packing list with part numbers and serial references, and commercial invoice with HS code 8431.20 for customs clearance. All export documentation is prepared in compliance with Chinese customs regulations and international trade requirements for industrial robot components originating from Germany.

TOPNLMS maintains stock of critical ABB IRB6700 spare parts to support rapid response for unplanned breakdowns. Contact our technical sales team to confirm current stock availability, request a formal quotation, or discuss consolidated spare-parts kitting for your facility.
