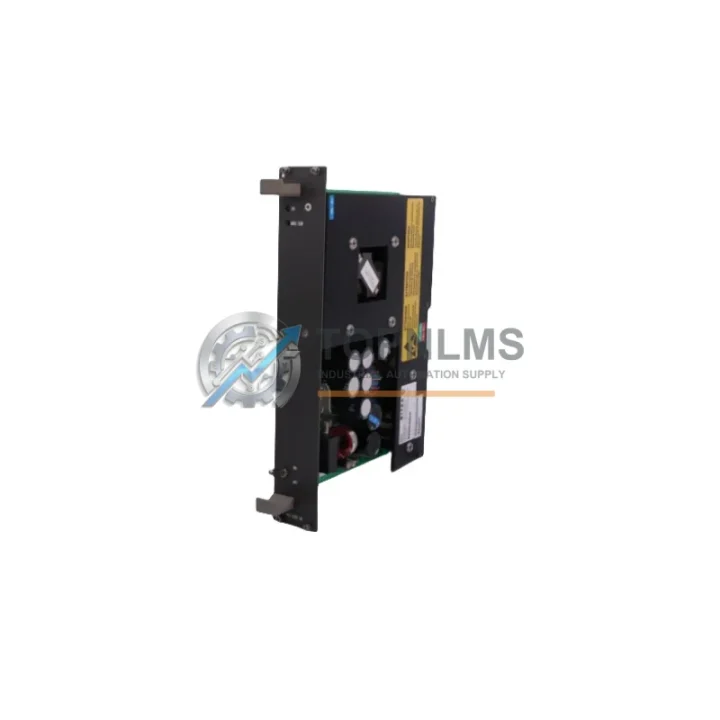

ABB DSQC539 3HAC14265-1 Ruggedized Axis Drive Module

Product Overview

ABB DSQC539 3HAC14265-1 Ruggedized Axis Drive Module for Harsh Environments

The ABB DSQC539 / 3HAC14265-1 HW0380393-B (A97L-0318-0239) is a high-performance Axis Drive Module engineered for the ABB IRC5 robot controller platform. Designed to ABB’s stringent industrial-grade standards, this module delivers reliable servo axis control in the most demanding manufacturing and process environments — from high-temperature foundries and dusty mining operations to vibration-intensive automotive assembly lines and chemically aggressive petrochemical plants.

As a direct OEM-equivalent replacement for the IRC5 drive cabinet, the DSQC539 manages servo power conversion and axis motion control with precision, ensuring that robotic arms and automated machinery maintain accurate positioning even under continuous-duty cycles. Its ruggedized construction addresses the core challenges of industrial field deployment: electromagnetic interference (EMI) from adjacent variable frequency drives (VFDs) and power switching equipment, mechanical shock and vibration from heavy press lines, and thermal stress from enclosed control cabinet environments.

Rugged Specifications Table

Comprehensive Protection Solutions

The DSQC539 does not operate in isolation — it is the axis drive heart of a tightly integrated IRC5 control architecture. In a fully configured IRC5 cabinet, it works in concert with the DSQC508 Main Computer Unit, which handles robot program execution and motion planning, and the DSQC532 I/O Module, which manages digital and analog field signals from sensors, safety gates, and end-effectors on the production floor.

For applications requiring functional safety compliance, the DSQC539 axis drive is paired with the DSQC400 Safety Module or the DSQC647A SafeMove Board, enabling speed monitoring, safe stop (SS1/SS2), and safe limited speed (SLS) functions mandated by ISO 10218 and IEC 62061 in collaborative and semi-collaborative robot cells. In high-vibration environments such as stamping presses or forging lines, the structural integrity of the drive module is further protected by the IRC5 cabinet’s shock-absorbing mounting rails.

Power delivery to the DSQC539 is conditioned through the DSQC609 Power Supply Unit, which provides regulated 24 VDC logic power and protects the drive electronics from upstream grid disturbances — a critical consideration in facilities where large induction motors, arc welders, or resistance heating equipment share the same power distribution panel. On the communication side, the IRC5 system may integrate a DSQC688 DeviceNet Gateway Module or a DSQC658 PROFIBUS Adapter, allowing the robot controller to exchange real-time process data with Siemens S7-series PLCs, Allen-Bradley ControlLogix systems, or Schneider Electric Modicon M340 controllers on the plant network.

Terminal connectivity within the control cabinet is managed through structured wiring using Phoenix Contact or Weidmüller DIN-rail terminal blocks, ensuring that signal cables to the DSQC539 and associated I/O modules are properly labeled, strain-relieved, and protected against the vibration-induced loosening that is common in heavy-industry installations. Where the robot cell operates in a classified hazardous area (Zone 2 or Division 2), the entire IRC5 cabinet assembly — including the DSQC539 — is typically housed in an Ex-rated enclosure with purge-and-pressurization systems to maintain safe operation around flammable vapors or combustible dust.

Application in Critical Infrastructure

The ABB DSQC539 axis drive module sees active deployment across the most demanding sectors of global critical infrastructure. In automotive body-in-white welding facilities, IRC5-controlled IRB 6640 robots equipped with DSQC539 drives perform continuous resistance spot welding at cycle rates exceeding 1,000 welds per shift, operating in environments saturated with weld spatter, zinc fumes, and intense electromagnetic fields from welding transformers. The drive module’s robust design ensures that servo positioning accuracy is maintained throughout multi-year production campaigns without unplanned downtime.

In oil and gas upstream processing — including offshore platform topsides and onshore gas compression stations — ABB IRC5 robots handle pipe inspection, valve actuation, and hazardous material sampling in areas where ambient temperatures fluctuate between -20°C and +50°C and where salt-laden, corrosive atmospheres accelerate component degradation. The DSQC539’s sealed PCB conformal coating provides a critical barrier against moisture ingress and corrosive contamination in these environments.

Within metallurgical and foundry operations, IRC5 robots fitted with DSQC539 axis drives manage ladle pouring, die casting extraction, and grinding operations in the presence of radiant heat loads exceeding 80°C ambient, airborne metallic particulate, and severe floor vibration from hydraulic presses and drop hammers. The drive module’s thermal management design — relying on the IRC5 cabinet’s forced-air cooling system — ensures continuous operation without thermal derating under these extreme conditions.

In water and wastewater treatment infrastructure, ABB robots support pipe welding, valve maintenance, and chemical dosing operations in high-humidity environments where condensation and chemical aerosols present constant risks to electronic components. The DSQC539, operating within a properly sealed IRC5 cabinet, maintains reliable axis control for robotic tools that must operate 24/7 with minimal maintenance intervention. Similarly, in mining and mineral processing plants, where explosive dust atmospheres and continuous vibration from crushers and conveyors are standard operating conditions, the IRC5 platform with DSQC539 drives provides the motion control backbone for automated drilling, sorting, and material handling systems.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All DSQC539 / 3HAC14265-1 units shipped by TOPNLMS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, premature component failure under normal operating conditions, and functional non-conformance to ABB’s published specifications. In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund after technical verification. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: How is each unit tested before shipment?
Every DSQC539 unit undergoes a multi-stage pre-shipment inspection protocol: visual inspection for physical damage, PCB-level continuity testing, functional power-on verification, and where applicable, bench-level servo loop testing using an IRC5 test rig. Units that do not pass all inspection stages are quarantined and not shipped. A test report is available upon request for customers with quality management system (QMS) requirements.

Q3: Is the DSQC539 compatible with all IRC5 controller variants and robot models?
The DSQC539 / 3HAC14265-1 is compatible with the full range of ABB IRC5 controller variants, including the IRC5 Single Cabinet Controller, IRC5 Compact Controller, and IRC5 Panel Mounted Controller. It is validated for use with ABB IRB 1600, IRB 2400, IRB 4400, IRB 6600, and IRB 6640 robot families, among others. Customers with specific hardware revision requirements (e.g., HW0380393-B) should confirm compatibility with their existing DSQC508 main computer firmware version before installation. TOPNLMS technical support can assist with compatibility verification at no charge.

Q4: Can TOPNLMS guarantee long-term supply and support for this part?
Yes. TOPNLMS maintains a dedicated inventory of ABB IRC5 spare parts, including the DSQC539 and related modules such as the DSQC508, DSQC532, DSQC609, and DSQC400. Our procurement network spans authorized ABB distributors and certified industrial surplus channels, enabling us to fulfill both single-unit emergency replacement orders and multi-unit planned maintenance contracts. For customers managing large IRC5 robot fleets, we offer consignment stock arrangements and priority allocation agreements to ensure parts availability throughout the robot’s operational lifecycle.
