ABB DSQC532B 3HAC023447-001 Ruggedized Axis Computer Module for Harsh Environments

Product Overview

ABB DSQC532B 3HAC023447-001 Ruggedized Axis Computer Module for Harsh Environments

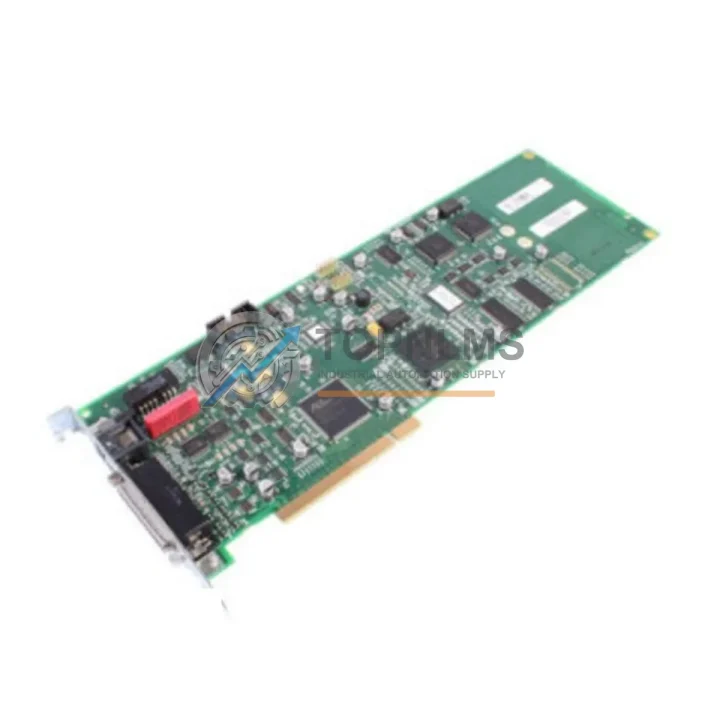

The ABB DSQC532B (3HAC023447-001) is a high-reliability axis computer board engineered for the ABB IRC5 robot controller platform. Designed to operate continuously in demanding industrial environments — including high-temperature foundries, high-humidity coastal processing plants, dust-laden mining operations, and vibration-intensive heavy manufacturing lines — this module delivers the computational precision and signal integrity that mission-critical robotic automation demands. Whether you are maintaining an existing IRC5 installation or sourcing a verified replacement for an unplanned downtime event, the DSQC532B represents a proven, field-tested solution backed by ABB’s engineering heritage and TOPNLMS’s rigorous pre-shipment inspection protocol.

Rugged Specifications Table

Comprehensive Protection Solutions

The DSQC532B axis computer board sits at the heart of the IRC5 controller’s motion control architecture, coordinating real-time servo commands across all robot axes. In practice, its reliability is inseparable from the health of the surrounding control ecosystem. The ABB DSQC663 (3HAC026253-001) I/O board, for example, handles digital and analog signal routing between the robot and external field devices; a degraded I/O board can introduce signal noise that stresses the axis computer’s interrupt handling. Similarly, the ABB DSQC609 (3HAC14265-1) power distribution board must deliver clean, stable DC rails — voltage ripple or transient spikes on the 24 V supply are a leading cause of premature axis computer failures in high-cycle welding applications.

In environments with significant electromagnetic interference — such as induction heating stations, large variable-frequency drives (VFDs), or high-current arc welding equipment — the ABB DSQC679 (3HAC028357-001) teach pendant and its associated communication harness should be inspected alongside any axis computer replacement, as EMI-induced communication errors are frequently misdiagnosed as axis computer faults. The ABB DSQC508 (3HAC4788-1) serial measurement board, which interfaces directly with the resolver or encoder feedback signals from each servo motor, is another component that should be evaluated during any IRC5 axis computer overhaul: degraded resolver signal conditioning can cause the DSQC532B to log spurious axis deviation alarms even when the board itself is fully functional.

For facilities running continuous production lines — automotive body shops, tire manufacturing, food and beverage palletizing — planned spare parts inventory is a non-negotiable element of maintenance strategy. Stocking the ABB DSQC532B 3HAC023447-001 alongside the ABB DSQC611 (3HAC025562-001) axis computer (used in later IRC5 revisions) and the ABB DSQC662 (3HAC026254-001) fieldbus adapter board ensures that a single unplanned downtime event does not cascade into a multi-day production halt. The ABB DSQC627 (3HAC020466-001) drive unit and the ABB DSQC668 (3HAC031670-001) safety board are also recommended co-stocking candidates, as these modules share the same IRC5 cabinet form factor and are subject to similar thermal and vibration stress profiles in heavy-duty applications.

Application in Critical Infrastructure

The ABB IRC5 platform — and by extension the DSQC532B axis computer board — is deployed across some of the world’s most demanding industrial sectors. In oil and gas processing facilities, IRC5-controlled robots perform pipe welding, valve assembly, and hazardous material handling in zones where ambient temperatures can exceed 45 °C and airborne hydrocarbon particulates create persistent contamination risks. The DSQC532B’s conformal-coated PCB and sealed connector interfaces are specifically engineered to resist the ingress of fine particulates and corrosive vapors that would rapidly degrade a standard commercial-grade controller board.

In mining and mineral processing operations, IRC5 robots are used for drill bit handling, ore sample analysis, and explosive device assembly in environments characterized by extreme vibration, high dust concentrations, and wide diurnal temperature swings. The axis computer’s ability to maintain sub-millisecond servo loop timing under these conditions is critical to both process quality and personnel safety. Power generation and electrical utilities represent another key deployment sector: IRC5 robots perform transformer winding, switchgear assembly, and high-voltage cable termination tasks where precise, repeatable motion control is a safety-critical requirement governed by IEC 61508 and IEC 62061 functional safety standards.

In water and wastewater treatment plants, the combination of high ambient humidity, chemical vapors (chlorine, hydrogen sulfide), and continuous 24/7 operation creates a uniquely challenging environment for electronic control hardware. Facilities in this sector have reported significantly extended DSQC532B service life when the IRC5 cabinet is equipped with a properly maintained air filter unit and when the axis computer board is inspected and cleaned on a 12-month preventive maintenance cycle. Steel and metallurgical plants deploying IRC5 robots for ladle handling, billet transfer, and surface inspection face radiant heat loads and electromagnetic interference from induction furnaces that demand the highest levels of controller hardware robustness — conditions the DSQC532B is rated and field-proven to withstand.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures that occur under normal operating conditions as defined by ABB’s IRC5 installation and maintenance guidelines. If a unit fails within the warranty period, TOPNLMS will arrange a replacement shipment or full refund upon receipt and inspection of the returned module. Warranty claims are initiated by contacting [email protected] with the order number and a description of the observed fault.

Q2: What pre-shipment testing is performed on each DSQC532B unit?
Every DSQC532B unit shipped by TOPNLMS undergoes a multi-stage inspection process: visual inspection for physical damage, PCB-level continuity testing, functional power-on verification in an IRC5-compatible test rig, and firmware version confirmation. Units that do not pass all test stages are quarantined and not offered for sale. A test report is available upon request for customers with specific quality assurance documentation requirements.

Q3: Is the DSQC532B compatible with all IRC5 controller variants and software versions?
The DSQC532B (3HAC023447-001) is compatible with the full range of ABB IRC5 controller variants, including the IRC5 Single Cabinet, IRC5 Compact, and IRC5 Panel Mounted configurations. It is compatible with RobotWare versions 5.x and later. For installations running RobotWare 6.x or later, TOPNLMS recommends confirming the axis computer hardware revision with your ABB service documentation or contacting our technical team before ordering, as later IRC5 revisions may specify the DSQC611 as the preferred axis computer variant.

Q4: Can TOPNLMS guarantee long-term supply continuity for the DSQC532B?
Yes. TOPNLMS maintains a dedicated inventory of ABB IRC5 spare parts, including the DSQC532B, specifically to support customers with long-term maintenance contracts and multi-site robot fleets. We source from verified supply chains and conduct periodic stock audits to ensure availability. Customers with recurring procurement needs are encouraged to contact us to discuss blanket order arrangements and priority allocation agreements.
