ABB 3HAC044841-001 Ruggedized Cycloidal Reduction Gear IRB6700

Product Overview

ABB 3HAC044841-001 Ruggedized Cycloidal Reduction Gear for IRB6700: Industrial Resilience in the Harshest Environments

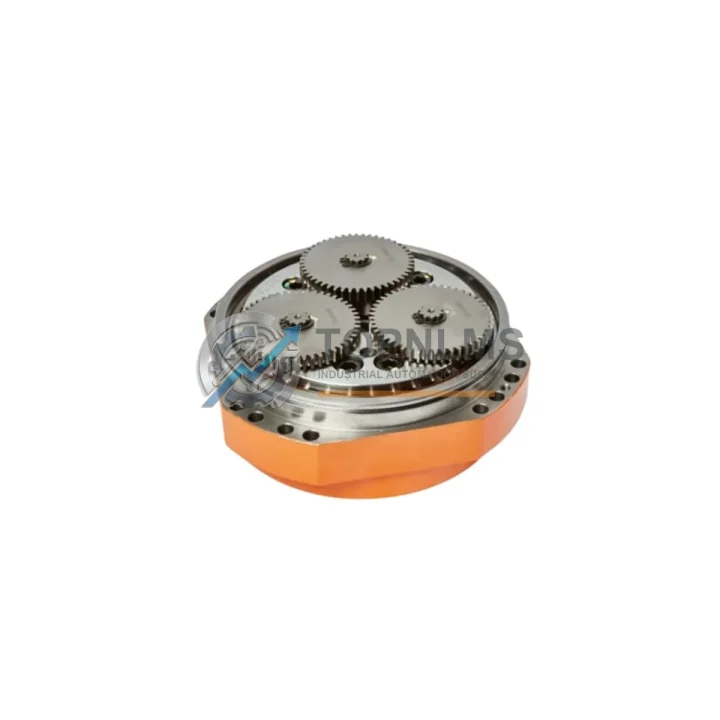

The ABB 3HAC044841-001 is a precision-engineered RV-550N-252.33 cycloidal reduction gear designed specifically for the ABB IRB6700 series industrial robot. As a critical joint drive component, this gearbox delivers the torque density, positional accuracy, and mechanical durability demanded by continuous heavy-duty automation in environments where vibration, thermal cycling, contamination, and mechanical shock are daily operating realities. Whether deployed on a high-cycle automotive welding line, a steel mill material handling cell, or a foundry tending application, the 3HAC044841-001 maintains sub-arcminute repeatability and full rated torque output across its entire service life.

ABB’s IRB6700 platform is engineered for payloads up to 300 kg and reaches up to 3.2 m, making it one of the most demanding mechanical environments for any gearbox. The RV-550N cycloidal architecture used in this unit distributes load across multiple contact points simultaneously, eliminating the single-point wear failure modes common in conventional planetary or harmonic drive designs. The result is a gearbox that resists shock loads, maintains backlash within specification under continuous reversal cycles, and operates reliably in ambient temperatures ranging from −10 °C to +45 °C without performance degradation.

In high-vibration environments such as press-tending cells, forging lines, and heavy stamping operations, the cycloidal reduction mechanism of the 3HAC044841-001 provides inherent vibration damping that protects both the robot’s servo motor and the downstream tooling. This mechanical isolation is particularly valuable when the IRB6700 is paired with ABB’s DSQC662 or DSQC679 main computer boards and DSQC643 I/O units, where servo feedback signal integrity depends on minimizing mechanical noise transmitted through the drivetrain.

Thermal management is a persistent challenge in enclosed control cabinets and robot joint housings operating in foundry, smelting, or glass manufacturing environments. The 3HAC044841-001 is rated for continuous operation at elevated ambient temperatures and uses a sealed lubrication system that prevents grease migration under thermal expansion cycles. This design characteristic makes it a reliable choice for applications where the robot operates near induction furnaces, heat treatment ovens, or continuous casting lines, environments where lesser gearbox designs experience accelerated seal degradation and lubricant breakdown.

Electromagnetic interference (EMI) is a significant concern in heavy industrial environments where large variable frequency drives (VFDs), high-current welding power supplies, and medium-voltage switchgear operate in close proximity to robot control systems. While the 3HAC044841-001 is a mechanical component, its precision manufacturing tolerances ensure that the ABB IRC5 controller’s servo drive modules, including the DSQC601 drive unit and 3HAC025338-001 axis computer, can maintain closed-loop position control without hunting or instability caused by mechanical backlash-induced feedback noise. Stable mechanical performance at the joint level is the foundation of EMI-resilient robot control.

In dusty environments such as cement plants, grain handling facilities, and mineral processing operations, the sealed construction of the RV-550N gearbox prevents ingress of abrasive particulate matter that would otherwise accelerate internal wear. When combined with the IRB6700’s IP67-rated wrist and the optional IP69K wash-down protection package, the 3HAC044841-001 supports deployment in food processing, pharmaceutical manufacturing, and chemical plant environments where regular high-pressure cleaning is required.

Rugged Specifications Table

Comprehensive Protection Solutions

The 3HAC044841-001 reduction gear does not operate in isolation — it is one element of a tightly integrated robot drivetrain and control architecture. Reliable joint performance depends on the health of every upstream and downstream component. The ABB IRC5 controller’s DSQC661 and DSQC662 computer modules manage the real-time motion planning and servo loop closure that translates programmed paths into precise joint torque commands. When the gearbox is replaced or refurbished, it is best practice to simultaneously inspect the 3HAC025338-001 axis computer and the associated DSQC601 drive unit for signs of capacitor aging or IGBT thermal stress, as these components share the same service interval logic in ABB’s predictive maintenance framework.

The servo motor coupled to this gearbox — typically an ABB 3HAC044075-001 or equivalent IRB6700 axis motor — should be inspected for bearing wear and encoder integrity whenever the gearbox is removed. Encoder signal degradation is a common root cause of apparent gearbox hunting behavior that is frequently misdiagnosed as mechanical backlash. On the I/O side, the DSQC652 digital I/O module and DSQC643 analog I/O unit provide the safety interlock and process feedback signals that govern robot motion in collaborative and guarded-space applications; their calibration should be verified after any major mechanical intervention.

Power supply integrity is equally critical. The ABB DSQC609 power supply unit and 3HAC036447-001 transformer assembly within the IRC5 cabinet must deliver stable, ripple-free DC bus voltage to the servo drives during the high-current transients associated with heavy-payload acceleration. Voltage sag during acceleration of a 300 kg payload through a 252:1 gearbox can induce servo faults that are incorrectly attributed to mechanical causes. The 3HAC026253-001 capacitor bank module buffers these transients and should be tested for capacitance retention as part of any gearbox replacement service.

For applications in hazardous areas or where functional safety is mandated by IEC 62061 or ISO 13849, the ABB DSQC400 safety module and associated safety-rated I/O provide the SIL 2 / PLd monitoring required for safe speed, safe stop, and safe torque-off functions. These safety modules work in conjunction with the gearbox’s mechanical integrity — a worn or failed reduction gear that introduces unexpected joint compliance can defeat software-based safe speed monitoring, making physical gearbox condition a safety-critical parameter, not merely a performance one.

Application in Critical Infrastructure

The ABB IRB6700 equipped with the 3HAC044841-001 cycloidal reduction gear is deployed across the most demanding sectors of global industrial infrastructure. In oil and gas processing facilities, IRB6700 robots perform pipe welding, valve assembly, and pressure vessel inspection in environments where explosive atmosphere classifications (ATEX Zone 2) and continuous vibration from compressor trains create extreme operating conditions. The gearbox’s sealed lubrication and shock-resistant cycloidal architecture are prerequisites for reliable operation in these environments.

In mining and mineral processing, IRB6700 robots handle ore sampling, drill bit changing, and explosive charge placement in underground and open-cut environments where rock dust, water ingress, and blast vibration are constant factors. The 3HAC044841-001’s multi-contact load distribution prevents the catastrophic joint failure that would result from a single shock event exceeding the rated torque of a conventional harmonic drive gearbox.

In power generation — including coal-fired, gas turbine, and nuclear facilities — robots equipped with this gearbox perform turbine blade inspection, fuel rod handling, and high-voltage switchgear maintenance in environments where radiation hardening, thermal cycling, and electromagnetic fields from large generators create uniquely hostile conditions for precision mechanical components. The gearbox’s German-engineered manufacturing tolerances and ABB’s rigorous quality control processes ensure that dimensional stability is maintained across thousands of thermal cycles.

In metallurgy and steel production, IRB6700 robots perform ladle handling, continuous caster tending, and hot rolling mill operations at ambient temperatures that can exceed 60 °C near the process equipment. The 3HAC044841-001’s thermal stability and sealed construction allow the robot to operate reliably in radiant heat environments that would rapidly degrade unprotected mechanical components. Water treatment and chemical processing facilities similarly rely on the gearbox’s corrosion-resistant construction for robots performing tank inspection, chemical dosing, and hazardous material handling in high-humidity, chemically aggressive atmospheres.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the ABB 3HAC044841-001?
The 12-month warranty covers all manufacturing defects, material failures, and functional performance deviations from ABB’s published specifications. If the unit fails to perform within rated torque, backlash, or thermal specifications during the warranty period under normal operating conditions, TOPNLMS will provide a replacement unit or full refund. The warranty period begins from the date of confirmed delivery and applies to both new and surplus-new units.

Q2: How is each unit tested before shipment?
Every 3HAC044841-001 unit undergoes pre-shipment inspection including dimensional verification of mounting interfaces, visual inspection for seal integrity and surface condition, and functional rotation testing to confirm smooth cycloidal action without binding or abnormal resistance. Surplus-new and refurbished units additionally undergo backlash measurement and load-bearing surface inspection. A test report is available upon request for critical applications.

Q3: Is this gearbox compatible with all IRB6700 variants, and can it replace the 3HAC043072-003?
The 3HAC044841-001 is the primary reduction gear for the ABB IRB6700 series axis 1/2 joint assembly. It is mechanically interchangeable across IRB6700-150/3.2, IRB6700-200/2.6, IRB6700-235/2.65, IRB6700-245/3.0, and IRB6700-300/2.7 variants. The 3HAC043072-003 is a related gearbox used in a different joint position; compatibility should be confirmed against the robot’s axis configuration drawing before ordering. TOPNLMS technical support can assist with cross-reference verification at no charge.

Q4: What is the long-term supply and replacement support policy?
TOPNLMS maintains standing inventory of ABB IRB6700 series mechanical components, including reduction gears, servo motors, and axis computer modules, to support customers with long production runs who cannot tolerate extended lead times for critical spare parts. We offer consignment stock arrangements and priority allocation agreements for high-volume customers. For end-of-life ABB components where OEM supply has been discontinued, we source verified surplus-new stock from certified channels and provide full traceability documentation.
