ABB 3HAC024779-001 DSQC401 Original Industrial Spare S4C+

Product Overview

ABB 3HAC024779-001 DSQC401 Original Industrial Spare S4C+: System Stability & Industrial Spare Parts Maintenance Value

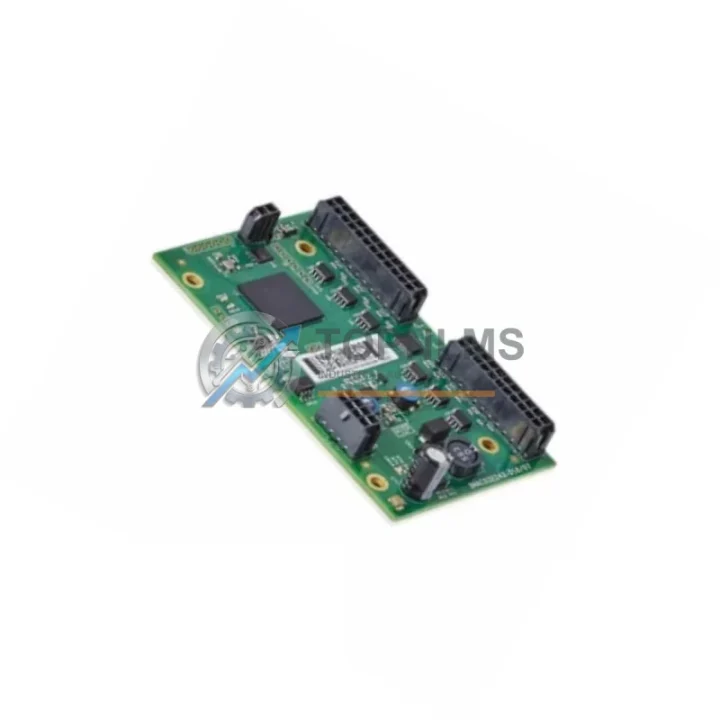

The ABB 3HAC024779-001 (DSQC401 / 3HAC032243-016) is an original robot controller PCB engineered for ABB IRB660 and S4C+ series robotic systems. In high-throughput manufacturing environments — automotive body shops, palletizing lines, foundry automation, and heavy-payload assembly cells — this board serves as the central processing and I/O coordination unit within the ABB S4C+ controller cabinet. Unplanned failure of this module is one of the most common causes of full-line shutdowns in facilities running legacy ABB robot fleets, making proactive spare parts management a critical operational priority.

Sourced directly from ABB’s original production chain and manufactured in Germany, this PCB undergoes full functional verification before dispatch. Each unit ships with a 12-month quality warranty, ensuring your maintenance team can deploy it with confidence during both emergency replacements and scheduled overhauls.

Critical Technical Specs

Preventive Maintenance Strategy

When a facility’s maintenance team identifies degraded performance or fault codes on the DSQC401 board, the root cause is rarely isolated to a single component. The S4C+ controller cabinet is an integrated system, and a thorough inspection during any planned or emergency shutdown should extend to the full electrical environment surrounding this PCB.

Begin with the DSQC508 power supply unit, which feeds regulated 24 VDC to the controller backplane. Voltage ripple or transient spikes from a failing power supply are a leading cause of premature PCB failure and should be measured and logged at every scheduled maintenance interval. Alongside this, inspect the DSQC532 I/O module and DSQC652 digital I/O board — both share the same backplane and are subject to the same thermal and electrical stress cycles as the 3HAC024779-001.

The DSQC609 drive unit and DSQC611 axis computer are frequently replaced in tandem with the DSQC401 during major overhauls of IRB660 and IRB6600 cells, as these modules govern servo drive coordination and are interdependent in fault recovery sequences. Maintenance planners should hold at least one spare of each in their on-site buffer stock to avoid multi-day lead-time delays during unplanned outages.

Do not overlook the 3HAC025466-001 battery backup unit, which preserves program memory and calibration data during power loss events. A depleted or failed battery is a silent risk that can result in complete loss of robot calibration data — a costly and time-consuming recovery scenario. Similarly, the DSQC679 teach pendant cable assembly and DSQC503 serial measurement board should be visually inspected for connector wear, cable fatigue, and corrosion at each quarterly maintenance visit.

For facilities managing multiple S4C+ cabinets, a consolidated spare parts kit covering the DSQC401, DSQC508, DSQC532, DSQC609, and 3HAC025466-001 represents a cost-effective approach to minimizing mean time to repair (MTTR) across the entire robot fleet. Bulk procurement of these modules from a single verified supplier also simplifies incoming inspection, documentation, and warranty tracking.

Strategic Replacement Solutions

The ABB S4C+ platform, while no longer in active production, remains operational in thousands of manufacturing facilities worldwide. OEM support for legacy S4C+ hardware has been progressively reduced, making third-party original spare parts sourcing the primary strategy for extending system life without the capital expenditure of a full IRC5 controller upgrade.

The 3HAC024779-001 / DSQC401 is a direct slot-in replacement for the original board in all S4C+ cabinets. No firmware re-flashing or parameter reconfiguration is required when replacing a like-for-like unit — the robot’s existing calibration and program data remain intact, provided the battery backup unit is functional. This makes the replacement process achievable within a single shift window, dramatically reducing production downtime compared to a full controller migration.

For facilities where the original DSQC401 carries part number 3HAC032243-016 (a later hardware revision), this unit is fully cross-compatible and interchangeable. Maintenance engineers should verify the cabinet firmware version prior to installation, but in the vast majority of S4C+ deployments, no additional configuration steps are required.

Stocking this module as a strategic spare — rather than sourcing reactively during a breakdown — reduces average repair lead time from 5–15 business days (spot-market sourcing) to under 4 hours (on-site deployment). For high-utilization robot cells running two or three shifts, this difference translates directly into measurable OEE improvement and reduced scrap risk during uncontrolled shutdowns.

Support FAQ

Q1: Is the 3HAC024779-001 compatible with both IRB660 and IRB6600 series robots?
Yes. The DSQC401 board is used across multiple ABB heavy-payload robot models that share the S4C+ controller platform, including the IRB660, IRB6600, IRB6650, and IRB7600. Always verify your cabinet’s hardware revision label before ordering to confirm the correct part number variant.

Q2: What does the 12-month warranty cover?
The warranty covers manufacturing defects and functional failures under normal operating conditions for 12 months from the date of shipment. Each unit is tested prior to dispatch. In the event of a warranty claim, we provide replacement or full refund after fault verification.

Q3: How is the board tested before shipment?
Each 3HAC024779-001 unit undergoes a full functional verification process including power-on self-test, communication bus integrity check, and I/O signal validation. Test records are available upon request for quality-critical procurement processes.

Q4: Can I use this board to replace a unit with part number 3HAC032243-016?
Yes. The 3HAC032243-016 is an alternate part number (hardware revision) for the same DSQC401 module. The two are electrically and mechanically interchangeable in all standard S4C+ cabinet configurations. If you have any compatibility concerns specific to your installation, contact our technical team before ordering.
