ABB 3HAC022279-002 Ruggedized AC Servo Motor for Harsh Environments

Product Overview

ABB 3HAC022279-002 Ruggedized AC Servo Motor for Harsh Environments

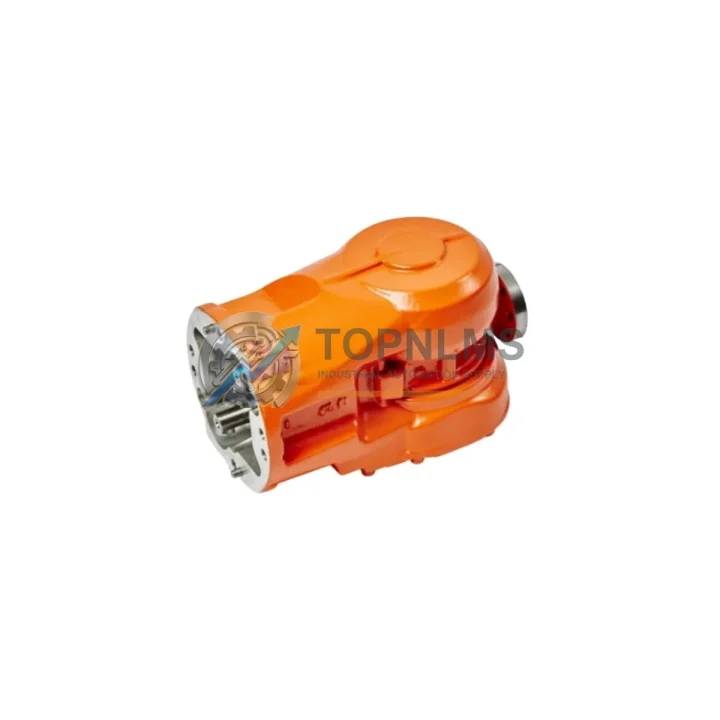

The ABB 3HAC022279-002 (cross-reference: 3HAC054558-001) is a precision-engineered rotational AC servo motor with integrated pinion, purpose-built for the ABB IRB4600 industrial robot series. Designed to operate continuously in the most demanding industrial environments — including high-temperature foundries, high-humidity coastal facilities, dust-laden mining operations, and vibration-intensive heavy manufacturing lines — this motor delivers the torque accuracy, thermal stability, and electromagnetic resilience that mission-critical automation demands.

In harsh-environment deployments, servo motor reliability is not optional — it is the foundation of uptime. The ABB 3HAC022279-002 is engineered to maintain precise rotational control even when exposed to ambient temperatures exceeding standard operating ranges, mechanical shock from press lines or stamping equipment, and electromagnetic interference generated by adjacent variable frequency drives (VFDs), high-current bus bars, or large inductive loads. Its sealed construction and robust bearing assembly resist particulate ingress from metal shavings, cement dust, and chemical aerosols commonly found in process industries.

Within the IRB4600 robot architecture, this servo motor drives a critical joint axis, working in concert with the ABB DSQC662 drive unit and the ABB IRC5 controller cabinet to deliver sub-millimeter repeatability across multi-shift production cycles. The motor’s resolver feedback system interfaces directly with the IRC5’s axis computer, enabling real-time torque and position correction without signal degradation — even in environments with significant conducted or radiated EMI.

Rugged Specifications Table

Comprehensive Protection Solutions

Reliable servo motor performance in harsh environments depends on a well-integrated control architecture. The ABB 3HAC022279-002 is designed to operate as part of a complete, coordinated system. In a typical IRB4600 installation, the motor receives its power and control signals from the ABB DSQC662 or DSQC663 axis drive module, which is housed within the ABB IRC5 controller cabinet. The IRC5 cabinet’s internal power distribution is managed by the ABB DSQC661 drive system power supply, ensuring stable DC bus voltage even during rapid acceleration and deceleration cycles.

For applications where the robot operates near high-power equipment — such as resistance welding controllers, plasma cutting systems, or large servo presses — the ABB DSQC608 I/O module provides the digital and analog signal isolation necessary to prevent control-level interference from propagating into the IRC5 axis computer. Similarly, the ABB DSQC643 fieldbus adapter enables the IRC5 to communicate over PROFIBUS or DeviceNet, allowing the IRB4600 to be integrated into broader PLC-controlled production lines managed by systems such as the Siemens S7-300 or S7-400 series controllers.

In safety-critical cells — such as collaborative zones, press-tending applications, or chemical handling lines — the ABB JSHD4 teach pendant and the IRC5’s integrated safety controller work alongside external safety relays and light curtain interfaces to enforce speed and force limits. The servo motor’s resolver feedback provides the position data required for safe-speed monitoring functions. For installations requiring functional safety certification, the IRC5’s SafeMove2 safety module can be paired with this motor to achieve SIL 2 / PLd compliance without external safety PLCs.

Peripheral protection components — including surge suppressors on the motor power cables, shielded servo cable assemblies, and ferrite core filters on resolver lines — are strongly recommended in environments with significant conducted EMI, such as those found adjacent to large variable frequency drives controlling conveyor motors or pump systems. Proper cable management and grounding of the motor housing to the robot base structure further reduces the risk of resolver signal corruption in electrically noisy facilities.

Application in Critical Infrastructure

The ABB IRB4600 robot, powered by the 3HAC022279-002 servo motor, is deployed across a wide range of critical industrial sectors where unplanned downtime carries severe operational and financial consequences.

In oil and gas facilities, IRB4600 robots perform pipe welding, valve assembly, and inspection tasks in environments characterized by hydrocarbon vapors, high ambient temperatures, and stringent explosion-risk management requirements. The servo motor’s sealed construction and robust thermal design support continuous operation in these demanding conditions, while compatibility with the IRC5’s zone-2 rated enclosure options enables deployment in classified hazardous areas.

In mining and mineral processing operations, the IRB4600 handles ore sampling, explosive loading, and equipment maintenance tasks in environments with extreme dust concentrations, mechanical vibration from blasting and crushing equipment, and wide temperature swings between surface and underground locations. The motor’s IP54 protection and vibration-resistant bearing assembly are essential for sustained reliability in these conditions.

In power generation and electrical utilities, IRB4600 robots perform transformer winding, switchgear assembly, and cable termination tasks. The servo motor’s EMI resilience is particularly valuable in high-voltage substations and generator halls, where strong magnetic fields and conducted interference can disrupt less robust motion control components.

In metallurgy and steel production, the robot operates in foundry environments with radiant heat from molten metal, airborne metal oxide particulates, and aggressive thermal cycling. Spare motor availability — such as the 3HAC022279-002 held in on-site inventory — is a standard risk mitigation practice for steel producers operating continuous casting or rolling lines where robot downtime directly halts production.

In water and wastewater treatment plants, IRB4600 robots handle chemical dosing, pipe inspection, and valve actuation in high-humidity, chemically aggressive environments. The motor’s sealed design and corrosion-resistant finish support long service intervals in these conditions.

Security & Quality FAQ

Q1: What warranty coverage is provided with the ABB 3HAC022279-002?
All units supplied by TOPNLMS are covered by a 12-month warranty from the date of shipment. This warranty covers defects in materials and workmanship under normal operating conditions. In the event of a warranty claim, TOPNLMS will arrange replacement or repair at no additional cost to the customer. Warranty support is available via email at [email protected] or by phone at +86 18359293191.

Q2: How is each unit tested before shipment?
Every ABB 3HAC022279-002 unit undergoes a multi-stage pre-shipment inspection process, including visual inspection for physical damage, resolver continuity and insulation resistance testing, winding resistance measurement, and functional verification where test equipment permits. Units that do not meet ABB’s published specifications are quarantined and not offered for sale. A test report is available upon request for critical applications.

Q3: Is this motor compatible with my existing ABB IRC5 controller and DSQC drive modules?
Yes. The 3HAC022279-002 is the OEM-specified servo motor for the ABB IRB4600 robot series and is fully compatible with the IRC5 single-cabinet and dual-cabinet controllers, as well as the DSQC662 and DSQC663 axis drive modules. The 3HAC054558-001 is the updated ABB part number for the same motor assembly and is a direct drop-in replacement. If you are uncertain about compatibility with a specific robot serial number or software version, please contact our technical team before ordering.

Q4: Can TOPNLMS support long-term or repeat supply of this part?
Yes. TOPNLMS maintains standing inventory of high-demand ABB IRB4600 spare parts, including the 3HAC022279-002 servo motor, to support customers with planned maintenance programs, emergency breakdown requirements, and multi-unit robot fleet operations. We can provide volume pricing, reserved stock agreements, and scheduled delivery programs for customers with recurring procurement needs. Contact [email protected] to discuss a supply arrangement tailored to your maintenance schedule.
