ABB BSM80C-275AFX Replacement/Upgrade Solution for BSM80

Product Overview

ABB BSM80C-275AFX Replacement/Upgrade Solution for BSM80: Smooth Transition from Legacy Servo Systems

When your existing ABB BSM80C-275AFX brushless AC servo motor reaches end-of-life, faces obsolescence, or requires urgent field replacement, a carefully planned migration strategy is essential to minimize production downtime and protect your control system investment. This listing provides a verified replacement and upgrade solution for the ABB BSM80 Series, engineered for direct compatibility with existing servo drive architectures, wiring harnesses, and motion control programs used across CNC machining centers, packaging lines, injection molding machines, and industrial robotics.

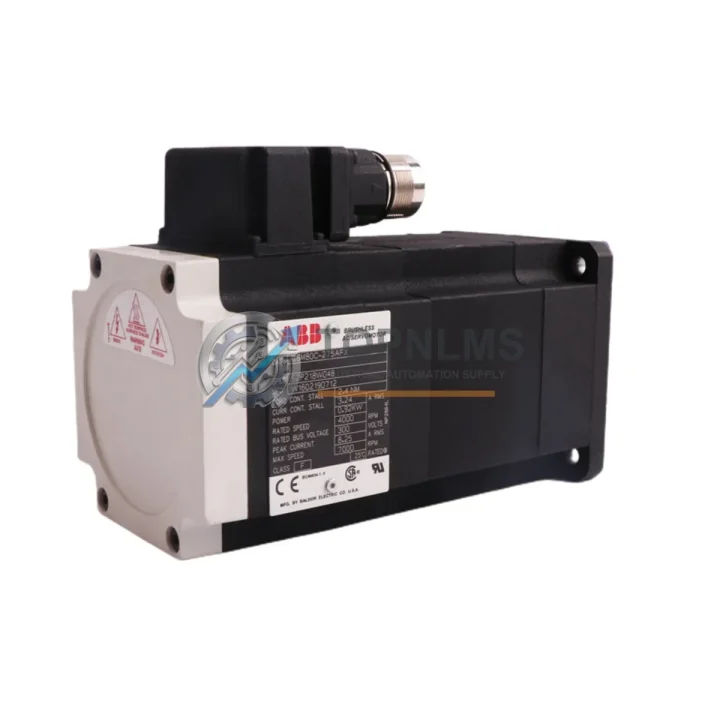

The BSM80C-275AFX is a brushless AC servo motor from ABB’s BSM80 frame-size family, rated for continuous duty in demanding industrial environments. Its 80 mm IEC frame, resolver or incremental encoder feedback interface, and standard B5 flange mounting make it a widely deployed component in legacy servo systems built around ABB MicroFlex e150, MotiFlex e180, or Baldor-ABB servo drive platforms. When this motor is discontinued or unavailable through standard distribution channels, engineers face the challenge of sourcing a compatible replacement that preserves existing wiring, encoder cabling, drive parameter sets, and mechanical mounting — without requiring a full system redesign.

Our replacement solution for the BSM80C-275AFX is sourced from verified industrial supply channels, inspected prior to shipment, and backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful BSM80C-275AFX replacement rarely involves the motor alone. In most retrofit and modernization projects, engineers simultaneously address adjacent components to ensure system-wide compatibility and long-term reliability. During the migration process, the servo drive — typically an ABB MicroFlex e150 or MotiFlex e180 — must be verified for firmware compatibility with the replacement motor’s feedback device. If the original drive is also approaching obsolescence, upgrading to a current-generation ABB servo drive at the same time eliminates a second unplanned outage later.

The feedback cabling between the BSM80C-275AFX and its drive is a frequent source of field issues during motor swaps. Shielded resolver cables and encoder extension cables with the correct MS-style circular connector terminations should be inspected and replaced if degraded. Similarly, the motor power cable — typically a four-conductor shielded cable with PE ground — should be checked for insulation integrity before commissioning the replacement motor.

In rack-based or cabinet-integrated servo systems, the 24 VDC brake power supply module and the servo drive’s DC bus capacitor bank are components that often require attention during a motor replacement outage. Replacing the BSM80C-275AFX while the cabinet is open provides an efficient opportunity to inspect or replace the dynamic braking resistor module, the 24V SITOP-style power supply unit, and any aging terminal blocks or DIN rail-mounted I/O modules connected to the motion control network.

For systems where the BSM80C-275AFX is part of a multi-axis servo architecture — such as a three-axis gantry or a four-axis pick-and-place system — the axis expansion modules on the servo drive rack, the shared DC bus interconnect bars, and the safety relay module for STO (Safe Torque Off) functionality should all be verified during the upgrade. If the machine uses a Profibus DP or CANopen network to coordinate motion between axes, the network termination resistors and node address settings must be confirmed after motor replacement to prevent communication faults on the fieldbus segment.

Where the BSM80C-275AFX interfaces with a Siemens S7-300 or S7-400 PLC via a high-speed FM357 pulse output module, or with an Allen-Bradley ControlLogix system via an analog output card, the drive parameter set — including motor nameplate data, encoder resolution, and velocity loop gains — must be re-entered or re-tuned after motor replacement. Having the original drive commissioning file or parameter backup on hand significantly reduces re-commissioning time. If the original parameter file is unavailable, our technical team can assist with baseline parameter recommendations based on the BSM80C-275AFX nameplate data.

Engineers upgrading from older BSM80 variants such as the BSM80A-275AA or BSM80N-275AFX should note that while the frame size and mounting pattern remain consistent across the BSM80 family, feedback device type and connector pinout may differ between sub-variants. Confirming the feedback interface before ordering ensures a plug-and-play replacement experience. In applications where the original motor used a Hiperface or EnDat absolute encoder, the replacement selection must match the encoder protocol supported by the connected ABB servo drive.

Retrofit Guidance FAQ

Q: Can I reuse my existing wiring harness when replacing the BSM80C-275AFX?
In most cases, yes. The BSM80 series uses standardized MS-style circular connectors for both power and feedback. Provided the replacement motor uses the same connector shell and pinout, the existing harness can be reused after inspection. Always verify pin assignments against the replacement motor’s wiring diagram before energizing.

Q: Do I need to modify my PLC program after replacing the motor?
No PLC program changes are required if the replacement motor uses the same feedback type (resolver or incremental encoder) and the drive interface remains unchanged. The motion commands issued by the PLC — whether via analog reference, pulse-direction, or fieldbus — are processed by the servo drive, not the motor. Drive re-tuning (velocity and position loop gains) is typically required after motor replacement.

Q: Is the replacement motor compatible with my existing ABB servo drive?
The replacement BSM80C-275AFX is designed for compatibility with ABB MicroFlex e150 and MotiFlex e180 series drives. After installation, the motor nameplate parameters (rated current, pole count, encoder resolution) must be entered into the drive’s motor configuration menu. Auto-tuning should be performed before returning the axis to production.

Q: Will the replacement motor fit in the same physical space?
Yes. The replacement maintains the 80 mm IEC frame size, B5 flange mounting pattern, and standard shaft dimensions of the original BSM80C-275AFX. No mechanical modifications to the machine frame, coupling, or control cabinet are required.

Q: What communication protocols are supported?
The BSM80C-275AFX operates as a motor load — it does not directly implement a fieldbus protocol. Communication protocol compatibility (Profibus DP, CANopen, EtherNet/IP, Modbus RTU) is determined by the servo drive, not the motor. Replacing the motor does not affect the drive’s network configuration or PLC communication settings.

Q: How long does field commissioning typically take after motor replacement?
For a direct replacement with existing wiring and a saved drive parameter file, commissioning typically takes 2–4 hours including mechanical installation, wiring verification, parameter entry, and auto-tuning. Without a parameter backup, allow 4–8 hours for full re-commissioning and production validation.

Warranty Assurance

Every BSM80C-275AFX replacement unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional inspection including insulation resistance testing, shaft runout verification, and connector integrity checks. Units that do not meet our outgoing quality standards are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides replacement unit dispatch within 3–5 business days of claim confirmation. Our after-sales team is reachable via email and phone to support fault diagnosis, installation guidance, and warranty processing. We maintain stock of BSM80 series components to support rapid replacement without extended lead times.

Purchasing through TOPNLMS provides industrial buyers with documented traceability, a commercial invoice suitable for customs clearance, and export packaging designed to protect servo motors during international freight. We ship globally from Xiamen, China, with DHL Express, FedEx International Priority, and sea freight options available depending on order volume and urgency.
