ABB ACSM1-04AM-09A5-4+L517 Replacement/Upgrade Solution

Product Overview

ABB ACSM1-04AM-09A5-4+L517 Replacement/Upgrade Solution: Seamless Transition from Legacy Motion Control Systems

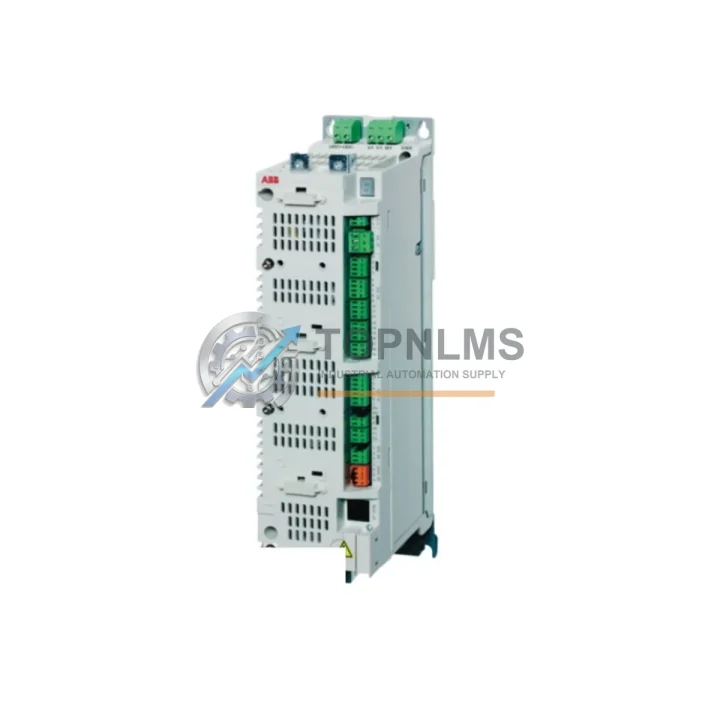

The ABB ACSM1-04AM-09A5-4+L517 is a high-performance motion control AC drive rated at 4 kW / 400 V, belonging to ABB’s ACSM1 series — a platform widely deployed in precision motion, winding, and coordinated multi-axis applications across manufacturing, packaging, and process industries. As the ACSM1 series approaches end-of-life in many installed bases, engineering teams and procurement managers are actively seeking verified replacement and upgrade paths that minimize downtime, preserve existing wiring infrastructure, and maintain compatibility with upstream PLC and DCS architectures.

TOPNLMS specializes in sourcing, testing, and supplying ACSM1-04AM-09A5-4+L517 units — both original stock and functionally equivalent upgrade solutions — to support your retrofit or emergency replacement project. Every unit is inspected prior to dispatch, ships with full documentation, and is covered by a 12-month warranty.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy ABB motion control system to the ACSM1-04AM-09A5-4+L517 typically involves more than a single drive swap. In most retrofit projects, the drive works in conjunction with a broader set of components that must be evaluated for compatibility or replaced in parallel.

On the communication side, the +L517 option card provides PROFIBUS-DP connectivity, making this drive a natural fit for systems already running an ABB AC500 PLC or a Siemens S7-300/S7-400 controller as the PROFIBUS master. If your existing control cabinet uses an ABB RDCO-02 DDCS fiber-optic communication module or an RPBA-01 PROFIBUS adapter from an older ACS800 installation, the ACSM1’s option slot architecture accepts equivalent adapters, simplifying the fieldbus migration without rewiring the entire cabinet.

For encoder feedback, many legacy installations use a standard 5 V TTL incremental encoder connected through an ABB RTAC-01 or FEN-01 encoder interface module. The ACSM1 platform supports the FEN-01 Pulse Encoder Interface and FEN-11 Absolute Encoder Interface modules, allowing direct reuse of existing encoder cabling and motor feedback wiring in most cases. This is a significant advantage when the motor and encoder assembly are embedded in a machine frame where rewiring is costly.

Power supply and DC bus architecture should also be reviewed. If the legacy system used an ABB ACS800 common DC bus configuration with an AINP-01 or AIBR-01 brake chopper unit, the ACSM1 frame supports external brake resistors and compatible chopper modules. Ensure the DC bus voltage and braking resistor ratings are recalculated for the 4 kW output stage. In multi-axis cabinets, the ACSM1-04AM-09A5-4+L517 can share a common DC bus with other ACSM1 units, reducing the total component count and cabinet footprint.

Terminal block and I/O wiring is typically the most time-sensitive aspect of a field retrofit. The ACSM1’s standard I/O includes digital inputs, digital outputs, analog inputs, and analog outputs on a removable terminal block, which is physically compatible with the wiring harnesses used in many ACS800 and earlier ACSM1 installations. In cases where the legacy system used an NAIO-03 analog I/O extension module or an NDIO-01 digital I/O extension, equivalent ACSM1-compatible I/O extension modules can be fitted to the drive’s option slots to preserve the existing I/O map without PLC program changes.

For HMI and operator panel integration, the ACSM1 supports the ABB ACS-AP-I and ACS-AP-W control panels, which provide parameter access, fault history, and drive status monitoring. If the legacy installation used an older CDP312R panel, a panel adapter cable allows continued use during commissioning before a permanent panel upgrade is scheduled.

Finally, programming and parameter migration should be performed using ABB Drive Composer Pro or the legacy DriveStudio tool, both of which support ACSM1 parameter backup and restore. Parameter sets from earlier ACSM1 firmware versions can be imported with minor revision, significantly reducing commissioning time on site.

Retrofit Guidance FAQ

Q: Can I reuse the existing motor wiring when replacing with ACSM1-04AM-09A5-4+L517?
A: In most cases, yes. The ACSM1 uses standard IEC U/V/W output terminals compatible with existing motor cable terminations. Verify cable cross-section ratings against the 9.5 A output current. Shielded motor cables are recommended for EMC compliance.

Q: Is the PROFIBUS-DP address and GSD file compatible with my existing PLC configuration?
A: The +L517 PROFIBUS-DP option uses the standard ABB ACSM1 GSD file. If your PLC (e.g., ABB AC500, Siemens S7, or Schneider Premium) already has the ACSM1 GSD imported, the node address can be set via the drive’s parameter P.5.01 without modifying the PLC hardware configuration. A full I/O mapping review is recommended before going live.

Q: What is the physical footprint compared to the unit being replaced?
A: The ACSM1 frame size for 4 kW / 400 V is compact and designed for cabinet mounting. Verify the DIN rail or back-panel mounting depth (approximately 195 mm) against your existing cabinet depth. The unit requires a minimum 50 mm clearance above and below for airflow.

Q: Can the drive operate in torque control mode for winding applications?
A: Yes. The ACSM1-04AM-09A5-4+L517 supports speed, position, and torque control modes natively. Torque reference can be provided via analog input or PROFIBUS process data word, making it suitable for tension control and winding retrofit projects.

Q: How long does commissioning typically take for a like-for-like replacement?
A: For a direct ACSM1-to-ACSM1 replacement with parameter backup available, on-site commissioning typically takes 2–4 hours. For cross-series migrations (e.g., ACS800 to ACSM1), allow 1–2 days for parameter mapping, I/O verification, and motion tuning.

Warranty Assurance

Every ABB ACSM1-04AM-09A5-4+L517 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional inspection covering power-on self-test, communication interface verification, and output stage integrity check. Units are packed in anti-static, shock-resistant packaging suitable for international freight.

In the event of a warranty claim, TOPNLMS provides a replacement dispatch within 5 business days of fault confirmation, with return freight covered for verified defective units. Our after-sales team is reachable via email and phone for technical support during commissioning and throughout the warranty period.

For urgent breakdown situations, expedited shipping from our Xiamen warehouse is available to most destinations in Asia, Europe, and the Americas, with typical transit times of 3–7 business days via DHL Express or FedEx International Priority.

Procurement teams can request a formal quotation, proforma invoice, or certificate of conformity as required for import customs clearance. Bulk orders for MRO stock programs are welcome, and volume pricing is available on request.
