ABB 3BSE042236R1 Replacement for AC 800M OP800 HMI: Seamless Transition from Legacy Local Operator Panels

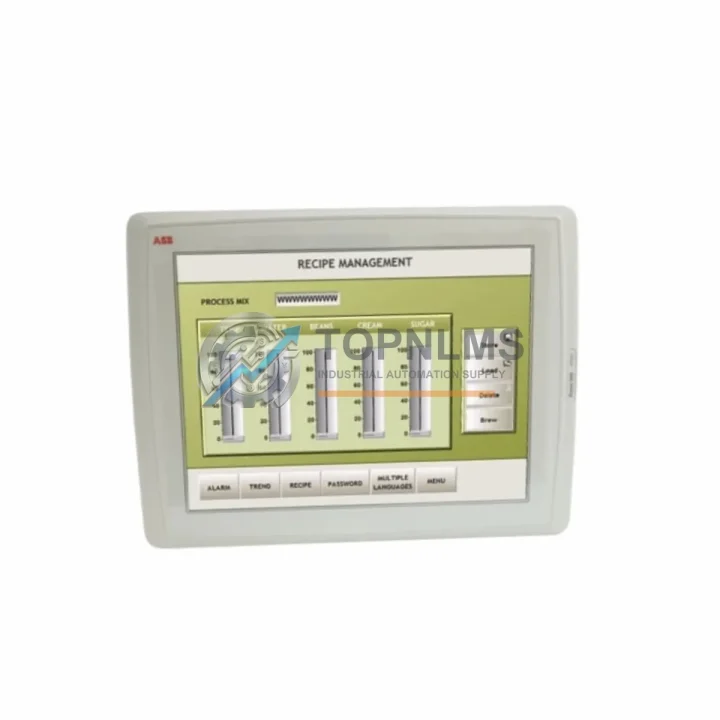

The ABB 3BSE042236R1 is the Operator Panel 800 (OP800) designed exclusively for the ABB AC 800M Distributed Control System platform. As industrial facilities worldwide face the challenge of maintaining aging DCS infrastructure, the 3BSE042236R1 has become one of the most sought-after replacement and upgrade components for plants running AC 800M controllers — including the PM861, PM864, PM866, and PM891 processor modules — where the local HMI panel has reached end-of-life, suffered physical damage, or been discontinued by the original supplier.

This panel provides a direct, hardware-compatible replacement path for facilities that need to restore local operator access without modifying the existing AC 800M rack architecture, backplane wiring, or control application software. The OP800 communicates with the AC 800M controller via the dedicated CEX-Bus (Controller Extension Bus), which means no additional communication modules, protocol converters, or fieldbus adapters are required during the swap. Engineers familiar with ABB’s Control Builder M engineering environment will find that the replacement panel integrates without requiring re-commissioning of the control strategy.

For plants transitioning from even older ABB Advant OCS or MOD 300 DCS platforms to the AC 800M architecture, the 3BSE042236R1 OP800 panel is frequently specified as part of the local HMI layer during the migration project. It replaces legacy operator stations and provides a compact, panel-mount form factor that fits standard 19-inch rack enclosures and control cabinet cutouts without structural modification.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful AC 800M local HMI replacement rarely involves only the OP800 panel itself. In practice, field engineers undertaking a control system modernization project will simultaneously address adjacent components to ensure system-wide reliability. The CEX-Bus cable assembly connecting the OP800 to the AC 800M controller module should be inspected and replaced if the existing cable shows wear, as a degraded cable can cause intermittent communication faults that are difficult to diagnose after the new panel is installed.

Plants running the ABB PM864A or PM866K01 processor modules as the primary AC 800M controller will find the 3BSE042236R1 integrates without firmware conflicts, provided the controller firmware is at a compatible revision level. If the processor module itself is approaching end-of-life, a concurrent upgrade to the ABB PM891 — the latest AC 800M processor — is a common project scope extension that future-proofs the control node while the cabinet is already open for the HMI panel swap.

For facilities where the AC 800M rack’s TB807 or TB820 I/O modules are also being refreshed as part of the modernization, the OP800 panel replacement can be scheduled in the same maintenance window to minimize total plant downtime. Similarly, if the control system communicates with field devices over PROFIBUS DP or FOUNDATION Fieldbus, verifying that the CI854 or CI860 communication interface modules in the AC 800M rack are at current firmware is a recommended pre-commissioning step before bringing the new OP800 online.

In control cabinets where the SD802 or SD803 power supply modules are original equipment, engineers should confirm that the 24 VDC rail capacity is sufficient to support the replacement OP800 panel’s inrush current during startup. If the power budget is marginal, a parallel power supply module can be added to the rack without disrupting the existing wiring. For sites migrating from older ABB Advant platforms, the ABB S800 I/O series — including AI810, AO810, DI810, and DO810 modules — is frequently retained and connected to the new AC 800M node via the CI830 ModuleBus optical interface, making the OP800 panel the final piece of the local HMI layer in an otherwise complete migration.

Retrofit Guidance FAQ

Q: Can I replace the 3BSE042236R1 OP800 without modifying my AC 800M control application?
A: Yes. The OP800 panel is a display and navigation device on the CEX-Bus. Replacing the physical panel hardware does not alter the control application running on the AC 800M processor module. No re-download or re-commissioning of the control strategy is required in standard replacement scenarios.

Q: What wiring changes are needed during installation?
A: The primary connection is the CEX-Bus cable between the OP800 and the AC 800M controller. The 24 VDC power connection uses standard terminal block wiring. In most cases, the existing cable lengths and terminal assignments are retained without modification.

Q: Is the 3BSE042236R1 compatible with all AC 800M processor variants?
A: The OP800 is compatible with PM861, PM864, PM864A, PM866, PM866K01, and PM891 processor modules. Compatibility with specific firmware revisions should be confirmed against ABB’s product compatibility matrix for your installed controller version.

Q: How does the OP800 communicate — does it require a separate Ethernet or PROFIBUS connection?
A: No. The OP800 uses the dedicated CEX-Bus interface built into the AC 800M controller. It does not require an independent Ethernet port, PROFIBUS node address, or any fieldbus configuration. This simplifies the replacement significantly compared to third-party HMI panels.

Q: What is the physical installation space requirement?
A: The 3BSE042236R1 uses a standard panel-mount cutout compatible with existing OP800 installations. No cabinet modification, drilling, or structural change is required when replacing a like-for-like OP800 unit.

Q: Can this panel be used during a migration from ABB Advant OCS to AC 800M?
A: Yes. The OP800 is the standard local HMI for the AC 800M platform and is routinely specified in Advant-to-AC 800M migration projects as the replacement for legacy operator stations. It provides local alarm acknowledgment, setpoint adjustment, and diagnostic display functions consistent with the AC 800M architecture.

Warranty Assurance

Every ABB 3BSE042236R1 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including power-on testing, CEX-Bus communication check, display and keypad function test, and visual inspection for physical integrity. Units that do not pass all pre-shipment checks are not dispatched.

In the event of a confirmed hardware defect within the warranty period, TOPNLMS provides replacement support with priority processing. Our technical team is available to assist with installation questions, compatibility verification, and pre-commissioning guidance via email and phone. We understand that unplanned downtime in industrial control environments carries significant operational cost, and our fulfillment process is structured to minimize lead time from order confirmation to delivery.

Stock availability is maintained to support urgent replacement requirements. Orders confirmed before the daily cutoff are processed for same-day dispatch. International shipping to major industrial regions is supported, with tracking provided from our Xiamen warehouse to the destination facility.

For volume procurement, spare parts program inquiries, or technical pre-sales consultation, contact our industrial automation team directly.
