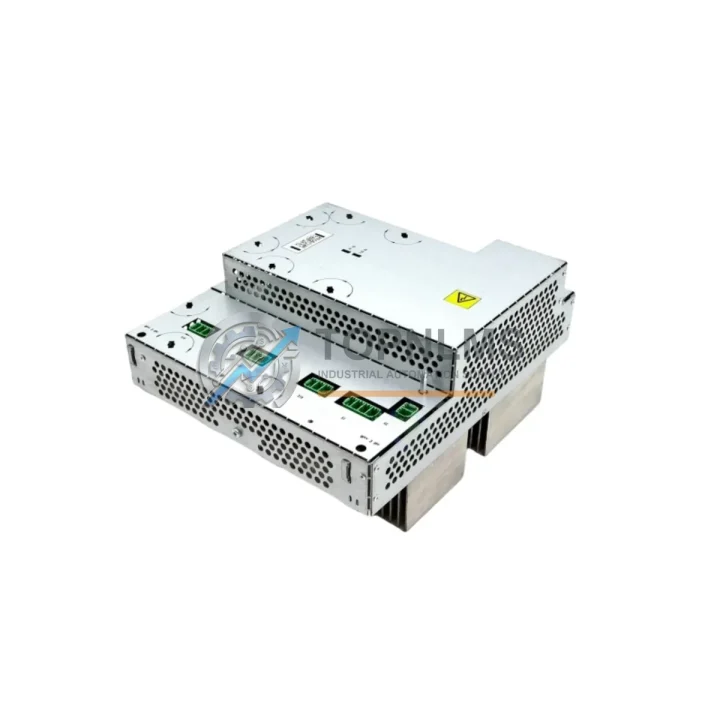

ABB DSQC406 3HAC035301-001 Ruggedized Servo Drive Module

Product Overview

ABB DSQC406 3HAC035301-001 Ruggedized Servo Drive Module: Industrial Resilience for Harsh Environments

The ABB DSQC406 (3HAC035301-001) is a high-performance servo drive module engineered for the ABB IRC5 robot controller platform — one of the most widely deployed robot control architectures in global manufacturing. Designed to operate reliably under the demanding conditions of continuous production lines, this module delivers precise motion control even in environments characterized by elevated temperatures, high humidity, airborne particulate contamination, mechanical vibration, and intense electromagnetic interference (EMI). For facilities where unplanned downtime translates directly into production loss and safety risk, the DSQC406 represents a mission-critical spare part and a proven replacement solution.

In heavy industrial settings — including automotive body shops, foundries, metal fabrication plants, and large-scale assembly lines — the IRC5 controller and its associated drive modules are subjected to thermal cycling, voltage transients, and continuous mechanical stress. The DSQC406 is built to withstand these conditions, maintaining stable servo axis control across the full range of ABB robot models that rely on the IRC5 platform. Its robust internal architecture supports multi-axis coordination, ensuring that each robot joint receives accurate torque and velocity commands without signal degradation or communication dropout.

When integrated within an IRC5 cabinet, the DSQC406 works in close coordination with companion modules such as the DSQC604 (main computer unit), the DSQC609 (power distribution board), and the DSQC611 (axis computer). The drive module receives motion commands from the axis computer and translates them into precise current outputs to the servo motors, forming the core of the IRC5’s closed-loop motion control chain. Any degradation in this module — whether from thermal fatigue, capacitor aging, or power surge damage — directly impacts robot positioning accuracy and cycle repeatability. Maintaining a verified spare DSQC406 on-site is therefore standard practice in facilities with zero-tolerance uptime requirements.

Beyond the drive chain itself, the DSQC406 operates within a broader ecosystem of safety and control infrastructure. The IRC5 cabinet typically houses the DSQC400 (I/O module), DSQC652 (digital I/O board), and DSQC662 (fieldbus adapter) alongside the servo drive stack. These modules collectively manage safety interlocks, field device communication, and process I/O — all of which depend on the servo drive operating within specification. In safety-rated applications, the IRC5 may also incorporate a SafeMove safety controller board, which monitors axis positions and enforces speed and zone limits. The DSQC406 must interface correctly with this safety layer to maintain SIL-rated operation.

For facilities operating in classified hazardous areas — such as oil and gas processing, chemical manufacturing, or grain handling — the reliability of every control cabinet component is subject to heightened scrutiny. While the IRC5 cabinet itself provides the primary environmental enclosure, the internal components including the DSQC406 must perform without fault across extended operating intervals. Replacement cycles in these environments are planned during scheduled maintenance windows, making pre-qualified spare parts with documented test histories essential. Each DSQC406 unit supplied by TOPNLMS undergoes functional verification prior to dispatch, with test results available upon request.

In mining and mineral processing applications, robot controllers managing ore handling, conveyor loading, and material transfer face constant vibration loads and dust ingress risks. The DSQC406’s solid-state design and conformal-coated PCB construction provide inherent resistance to these stressors. Similarly, in steel mills and aluminum smelters where radiated heat and electromagnetic noise from arc furnaces and induction heaters are constant factors, the module’s shielded signal paths and robust power stage maintain signal integrity and drive output stability.

Water and wastewater treatment facilities increasingly deploy robotic systems for pipe inspection, valve actuation, and chemical dosing automation. In these environments, the combination of high ambient humidity, chemical vapors, and continuous duty cycles places sustained stress on servo drive electronics. The DSQC406’s proven field reliability in such conditions makes it a preferred replacement component for maintenance engineers seeking like-for-like substitution without requalification overhead.

Power generation facilities — including thermal, hydro, and nuclear plants — rely on ABB robotics for tasks ranging from turbine inspection to fuel handling. In these critical infrastructure environments, component traceability and quality assurance are non-negotiable. TOPNLMS sources DSQC406 units through verified supply channels and provides full part number documentation, enabling seamless integration into plant maintenance management systems (CMMS) and spare parts registers.

Rugged Specifications Table

Comprehensive Protection Solutions

The DSQC406 does not operate in isolation — it is one node in a tightly integrated control and safety architecture. In a fully configured IRC5 cabinet, the servo drive module works alongside the DSQC604 main computer unit, which manages the robot’s operating system and program execution. The DSQC609 power distribution board conditions and distributes DC bus power to the drive stack, while the DSQC611 axis computer handles real-time interpolation and position feedback processing. Together, these modules form the motion control backbone of the IRC5 system.

On the I/O and communication side, the DSQC652 digital I/O board and DSQC662 fieldbus adapter connect the robot controller to external PLCs, safety relays, and field devices via protocols such as DeviceNet, PROFIBUS, or EtherNet/IP. In facilities where the IRC5 is integrated into a broader DCS or SCADA architecture, these communication modules ensure that the robot’s status, fault codes, and motion states are visible to the plant control system in real time. The DSQC406’s reliable drive output is a prerequisite for accurate position reporting through this communication chain.

For applications requiring functional safety compliance, the IRC5 platform supports the SafeMove safety controller, which enforces speed monitoring, axis range supervision, and emergency stop coordination. The servo drive module must maintain precise current control to satisfy the SafeMove system’s position verification requirements. Any drive fault that causes axis deviation beyond the configured safe zone triggers an immediate safety stop — underscoring why a verified, fully functional DSQC406 is essential in safety-rated robot installations.

In control cabinet environments where multiple ABB robots share a common power infrastructure, the DSQC400 I/O module and associated terminal modules manage signal distribution between the robot controller and the wider automation cell. Maintaining a complete inventory of critical spare parts — including the DSQC406, DSQC604, DSQC609, and DSQC652 — ensures that any single-point failure can be resolved within a planned maintenance window rather than causing extended unplanned downtime.

Application in Critical Infrastructure

In oil and gas processing facilities, ABB IRC5-controlled robots perform pipe welding, valve inspection, and material handling in environments where explosive atmospheres, corrosive gases, and extreme temperature swings are routine. The servo drive module’s role in maintaining precise weld torch positioning and consistent joint travel speed is directly linked to weld quality and structural integrity. A degraded or failed DSQC406 in this context is not merely a productivity issue — it is a potential safety event.

In mining and mineral processing operations, robots equipped with IRC5 controllers manage ore sampling, conveyor loading, and drill rig positioning. These environments subject control electronics to constant vibration, abrasive dust, and wide ambient temperature ranges. The DSQC406’s robust construction and conformal-coated PCB make it well-suited for operation in these conditions, provided the IRC5 cabinet maintains its IP-rated enclosure integrity.

In power generation — including coal, gas, and nuclear facilities — robotic systems perform turbine blade inspection, fuel rod handling, and high-voltage switchgear maintenance. The precision and repeatability demanded by these tasks require servo drive modules that perform consistently over thousands of operating hours. Facilities in this sector typically maintain a minimum two-unit spare inventory of critical drive components, with the DSQC406 among the highest-priority items given its central role in the IRC5 motion control chain.

In metallurgy and steel production, robots operating near arc furnaces and casting lines face radiated heat loads and intense electromagnetic fields. The DSQC406’s shielded design and thermal management characteristics support reliable operation in these high-noise environments, making it a preferred replacement component for maintenance teams managing ABB robot fleets in steel and aluminum plants.

In water and wastewater treatment facilities, robotic systems automate chemical dosing, pipe inspection, and sludge handling. The combination of high humidity, chemical vapors, and continuous duty cycles demands servo drive components with proven long-term reliability. The DSQC406’s field-proven performance in similar environments makes it a low-risk, high-confidence replacement choice for plant engineers.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all functional defects arising under normal operating conditions, including drive output failure, communication faults, and power stage malfunctions. To initiate a warranty claim, contact TOPNLMS at [email protected] with the order reference, fault description, and any available error codes from the IRC5 controller. Replacement or repair is arranged within the warranty period at no additional cost to the buyer.

Q2: How is each DSQC406 unit tested before shipment?
Every unit undergoes pre-shipment functional verification, which includes power-on testing, drive output measurement, and communication interface checks. Test reports are available upon request and can be provided as part of the shipment documentation for facilities with incoming inspection requirements. Units are packed in ESD-safe materials and shipped in protective outer packaging to prevent transit damage.

Q3: Is the DSQC406 compatible with all IRC5 controller variants and software versions?
The DSQC406 (3HAC035301-001) is designed for use with ABB IRC5 single cabinet, dual cabinet, and panel-mounted controller variants. Compatibility with specific robot models and RobotWare software versions should be confirmed against the IRC5 hardware compatibility matrix. TOPNLMS technical support can assist with compatibility verification prior to purchase — contact [email protected] with your IRC5 serial number and RobotWare version for confirmation.

Q4: Can TOPNLMS support long-term supply and multiple-unit procurement for fleet maintenance programs?
Yes. TOPNLMS maintains stock of the DSQC406 and related IRC5 spare parts to support both immediate replacement needs and planned fleet maintenance programs. Volume pricing is available for multi-unit orders. For facilities managing large ABB robot fleets, TOPNLMS can provide a dedicated spare parts supply agreement covering the DSQC406 alongside companion modules such as the DSQC604, DSQC609, and DSQC652, ensuring consistent availability across scheduled maintenance cycles.
