ABB DSQC417 Replacement for IRC5 Main Servo Drive Unit

Product Overview

ABB DSQC417 Replacement for IRC5 Main Servo Drive Unit: Smooth Transition & Legacy System Compatibility

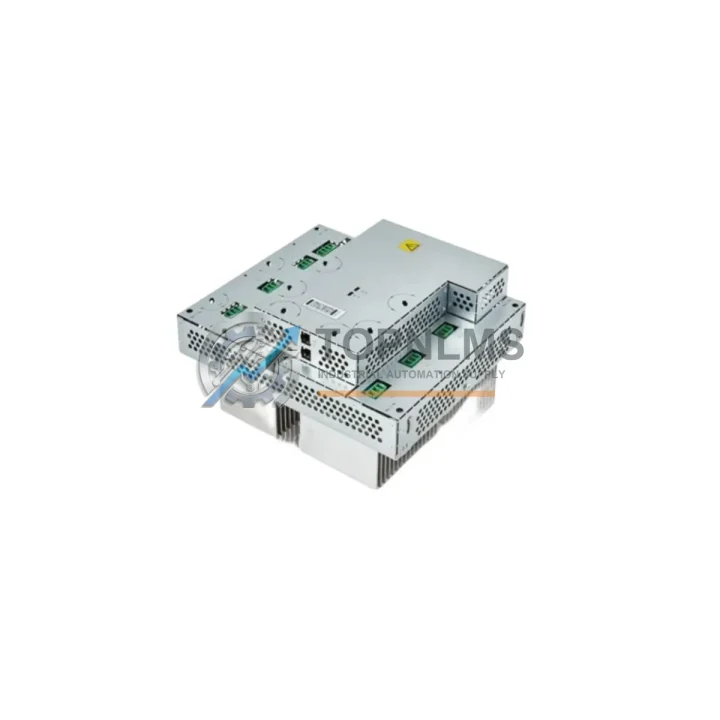

The ABB DSQC417 (part numbers 3HAC024628-001 and 3HAC025338-006) is the main servo drive unit designed for ABB IRC5 robot controller cabinets. As production lines age and original ABB spare parts become increasingly scarce, facilities running IRC5-based robotic cells — including arc welding, material handling, and assembly automation — face mounting pressure to source reliable, drop-in replacements that preserve uptime without requiring full system redesign.

TOPNLMS supplies the DSQC417 as a direct replacement and upgrade solution for end-of-life or failed servo drive units within the IRC5 controller platform. Our units are sourced, inspected, and dispatched from Xiamen, China, with full functional verification prior to shipment. Whether you are replacing a failed drive in an emergency shutdown scenario or proactively stocking critical spares for a multi-robot production cell, the DSQC417 is engineered to restore servo axis control with minimal intervention.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the DSQC417 in an IRC5 cabinet is rarely an isolated task. A complete servo drive restoration typically involves verifying the integrity of adjacent components within the same controller enclosure. The IRC5 drive section relies on a coordinated set of modules: the DSQC661 rectifier unit and DSQC662 drive power supply provide the DC bus voltage that feeds the DSQC417 directly — any degradation in these upstream power modules will cause recurring drive faults even after a successful DSQC417 swap. It is standard practice to inspect both units during the same maintenance window.

Axis feedback integrity depends on the DSQC633 axis computer board, which handles resolver and encoder signal processing for the servo loop. If axis position errors persist after the drive replacement, the DSQC633 is the next diagnostic target. Similarly, the DSQC679 teach pendant unit (FlexPendant) is used throughout the recommissioning process to run axis calibration routines, verify motor current limits, and confirm safe-speed operation before returning the robot to production.

For facilities upgrading from older S4C+ or S4Cplus controllers to the IRC5 platform, the migration also involves replacing the legacy DSQC346 drive unit and associated DSQC352 capacitor unit with their IRC5 equivalents. The IRC5 architecture consolidates these functions into the DSQC417 and its companion power modules, reducing cabinet wiring complexity and improving thermal management. During such migrations, the DSQC609 safety module must also be updated to ensure compatibility with IRC5 SafeMove or Electronic Position Switches (EPS) configurations.

Communication infrastructure upgrades often accompany drive replacements. If your IRC5 cell communicates over PROFIBUS DP, the DSQC700 PROFIBUS adapter may require firmware alignment with the updated drive firmware. Facilities using DeviceNet should verify the DSQC377B DeviceNet master/slave board configuration remains consistent after the drive swap. For Ethernet-based architectures running EtherNet/IP or PROFINET, the DSQC688 Ethernet switch module within the IRC5 cabinet should be inspected for port integrity and network timing compliance.

Finally, for multi-robot cells or coordinated motion applications, the DSQC1000 main computer unit (or its predecessor DSQC639) governs the overall motion planning and drive coordination. Ensuring the main computer firmware is aligned with the replacement DSQC417 drive firmware version is a critical step before final sign-off on any IRC5 servo drive retrofit.

Retrofit Guidance FAQ

Q: Does replacing the DSQC417 require rewiring the motor power cables?
A: No. The DSQC417 uses the same connector layout as the original unit. Motor power cables (U, V, W phases) and brake control connectors plug directly into the replacement drive without modification. Verify cable insulation condition and connector seating torque before powering up.

Q: Will the existing RobotWare program need to be reloaded after the drive swap?
A: The RobotWare program resides on the main computer (DSQC639 or DSQC1000), not on the drive unit itself. The program does not need to be reloaded. However, axis calibration (fine calibration or revolution counter update) must be performed after any servo drive replacement to restore accurate position reference.

Q: Is the DSQC417 compatible with both single-cabinet and dual-cabinet IRC5 configurations?
A: Yes. The DSQC417 is used in both IRC5 single-cabinet (M2004 and later) and dual-cabinet (drive module + control module) configurations. Confirm the drive bay slot assignment matches your specific robot model’s axis grouping before installation.

Q: What communication protocol does the DSQC417 use internally?
A: The DSQC417 communicates with the IRC5 axis computer (DSQC633) via ABB’s proprietary internal drive bus. This is not a fieldbus protocol — it is an internal backplane communication link. No fieldbus configuration changes are required when replacing the drive unit.

Q: How much physical space does the DSQC417 require in the cabinet?
A: The DSQC417 occupies a standard IRC5 drive bay slot. Its dimensions are identical to the original unit, ensuring a direct mechanical fit without cabinet modification. Ensure adequate airflow clearance around the drive bay after installation.

Q: Can the DSQC417 be used as a spare for multiple robot models?
A: The DSQC417 is compatible across multiple IRC5-based robot models including IRB 1600, IRB 2400, IRB 4400, IRB 6600, and IRB 7600 series, subject to axis configuration. Verify the specific robot model’s spare parts manual to confirm applicability before stocking.

Warranty Assurance

Every DSQC417 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including power-on testing, drive bus communication check, and visual inspection for component integrity. Units that do not pass our pre-shipment inspection are not dispatched.

In the event of a warranty claim, TOPNLMS provides replacement or repair support with a target response time of 1–3 business days from claim receipt. Warranty coverage applies to manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical impact.

For urgent production-down situations, TOPNLMS maintains ready stock of the DSQC417 and can arrange expedited dispatch from Xiamen. Standard international shipping lead times are 5–10 business days depending on destination. Express options are available on request.

To initiate a purchase, request a quotation, or discuss technical compatibility for your specific IRC5 configuration, contact our team directly:

• Email: [email protected]
• Phone / WhatsApp: +86 18359293191
• Website: https://topnlms.com
