ABB 3BHE024577R0101 PPC907BE Original Industrial Spare ACS Compatible

Product Overview

ABB 3BHE024577R0101 PPC907BE Original Industrial Spare ACS Compatible: System Stability and Industrial Spare Maintenance Value

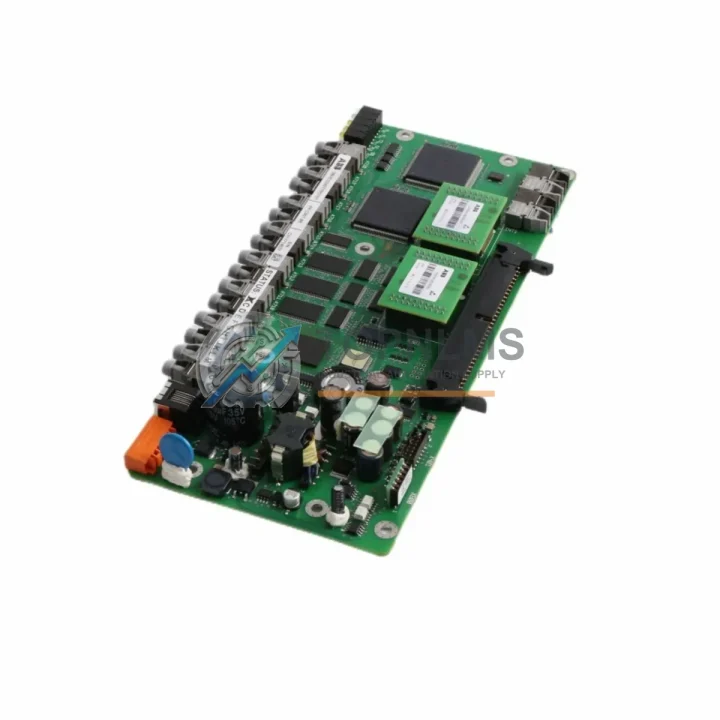

The ABB 3BHE024577R0101 PPC907BE is an original pulse-pattern controller (PPC) board engineered specifically for ABB’s ACS1000 and ACS6000 medium-voltage variable-speed drive platforms. In high-demand industrial environments — from cement plants and mining operations to petrochemical facilities and steel mills — the reliability of the drive control layer is non-negotiable. A failed PPC907BE board can halt an entire production line within seconds, making this component one of the most strategically important spare parts in any medium-voltage drive maintenance program.

Sourced directly from ABB’s original manufacturing supply chain and verified against factory specifications, the 3BHE024577R0101 PPC907BE delivers the precise pulse-pattern generation and gate-drive coordination that the ACS1000 and ACS6000 power stacks demand. Unlike third-party alternatives, this original board maintains full firmware compatibility, ensuring seamless integration with existing drive configurations without the risk of parameter mismatch or communication faults.

For maintenance engineers managing aging medium-voltage drive fleets, securing a verified spare of the PPC907BE is a foundational step in any preventive maintenance or lifecycle extension strategy. With lead times for original ABB drive boards often stretching weeks or months through standard channels, holding a pre-tested unit in your local spare parts inventory can be the difference between a planned two-hour swap and an unplanned multi-day shutdown.

Critical Technical Specs

Preventive Maintenance Strategy

When scheduling a planned inspection or replacement of the PPC907BE pulse-pattern controller, experienced maintenance teams treat the intervention as an opportunity to audit the broader ACS1000 or ACS6000 control cabinet. The PPC907BE does not operate in isolation — it coordinates with multiple upstream and downstream components whose condition directly affects drive reliability and longevity.

Begin with the AINT board (3BHE009681R0001), the AMC circuit board responsible for drive-level control and parameter management. A degraded AMC can generate spurious fault signals that mimic PPC failure, making it essential to verify AMC firmware integrity before condemning the PPC907BE. Similarly, inspect the APBU fiber-optic branching unit — the DDCS communication backbone that links the PPC to the inverter phase modules. Dirty or cracked fiber connectors are a leading cause of intermittent gate-drive faults in ACS6000 installations.

The IGCT gate unit boards (phase module gate drivers) should be checked for thermal stress and contact integrity during any PPC replacement window. In ACS1000 systems, the IOEC I/O extension modules — which handle analog and digital I/O for process feedback — are frequently overlooked during drive servicing but are critical to closed-loop control stability. Verify that all IOEC modules are firmly seated and that their terminal blocks show no signs of oxidation or loose wiring.

Power supply integrity is equally important. The APOW power supply board provides regulated DC to the control electronics; a marginal APOW can cause random resets and communication timeouts that are often misdiagnosed as PPC faults. While the cabinet is open, inspect the 24 VDC auxiliary power supply module feeding the control rack and confirm output voltage is within tolerance.

For sites running multiple ACS1000 or ACS6000 units, a coordinated spare parts strategy should also include RDCO DDCS communication option boards for drives integrated into DCS or PROFIBUS networks, as well as NINT network interface boards for Ethernet-connected installations. Keeping one spare of each communication module per drive type eliminates the most common cause of extended downtime — waiting for a single low-cost board to arrive from overseas.

Finally, review the condition of the control cabinet door filters and cooling fans. Blocked airflow is the primary accelerant of electronic component aging in medium-voltage drive enclosures. A clean thermal environment directly extends the service life of the PPC907BE and every board in the control rack.

Strategic Replacement Solutions

The ABB 3BHE024577R0101 PPC907BE is a direct original replacement for earlier PPC907 variants used in first-generation ACS1000 and ACS6000 installations. Many facilities operating drives commissioned in the early 2000s are now facing end-of-life challenges with original control boards — components that are no longer available through standard ABB distribution channels but remain essential to keeping operational assets running.

Sourcing a verified original PPC907BE from a specialist industrial spare parts supplier allows maintenance teams to execute a like-for-like swap without drive re-commissioning, parameter re-entry, or firmware upgrade risk. The board retains full compatibility with existing DDCS network topology, IGCT gate sequencing, and AMC parameter sets — meaning a trained technician can complete the replacement within a standard planned maintenance window.

For facilities managing a fleet of ACS1000 or ACS6000 drives across multiple production lines, a strategic inventory of two to three PPC907BE units provides meaningful protection against unplanned downtime. Given the criticality of medium-voltage drives in continuous-process industries, the cost of holding a spare board is negligible compared to the production loss from a single unplanned outage. Each unit shipped from TOPNLMS is functionally tested prior to dispatch, packaged in anti-static protection, and accompanied by a test report — giving your maintenance team confidence before the board ever reaches the cabinet.

Support FAQ

Q1: Is the 3BHE024577R0101 PPC907BE compatible with both ACS1000 and ACS6000 drives?
Yes. The PPC907BE is the standard pulse-pattern controller for both the ACS1000 (air-cooled and water-cooled variants) and the ACS6000 medium-voltage drive families. Always verify your drive’s existing board part number against the label on the installed unit before ordering.

Q2: How is the board tested before shipment?
Each 3BHE024577R0101 PPC907BE unit undergoes functional verification including power-on self-test, communication interface check, and output signal validation before dispatch. A test report is included with every shipment. Units that do not pass full functional testing are not offered for sale.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers functional failure of the board under normal operating conditions consistent with ABB’s published environmental and electrical specifications for the ACS1000/ACS6000 platform. Damage resulting from incorrect installation, overvoltage events, or operation outside rated parameters is excluded. Warranty claims are processed promptly with replacement or refund options.

Q4: Can I install the PPC907BE without re-commissioning the drive?
In most cases, yes — provided the replacement board is the same hardware revision and the drive’s AMC parameter set is backed up prior to the swap. It is strongly recommended to back up all drive parameters using the ABB Drive Composer or DriveWindow tool before any control board replacement. Consult your site’s ABB service documentation or contact our technical support team for revision-specific guidance.
