ABB 3BHE014185R0002 UUD148 A02 Original Industrial Spare ACS800 Compatible

Product Overview

ABB 3BHE014185R0002 UUD148 A02 Original Industrial Spare ACS800 Compatible: System Stability & Industrial Spare Maintenance Value

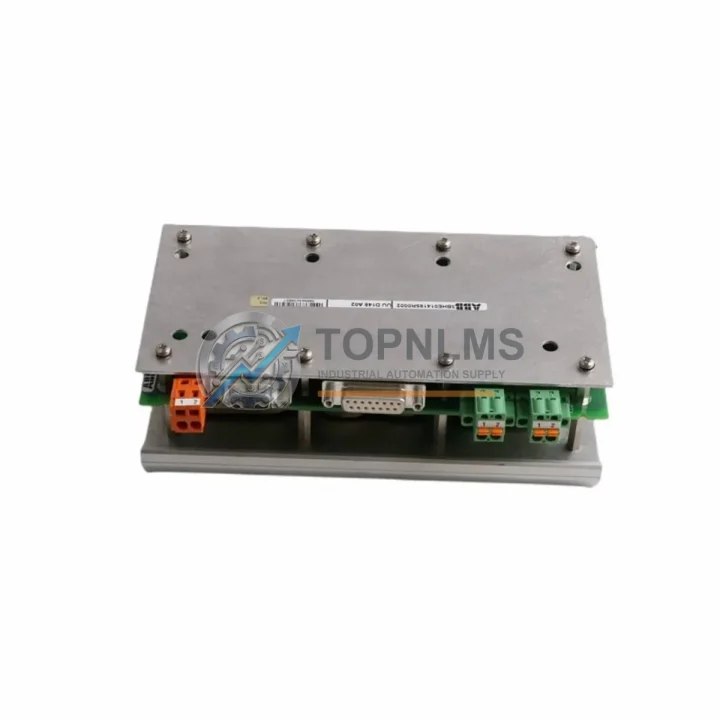

The ABB 3BHE014185R0002 UUD148 A02 is an original current transducer board engineered for ABB ACS800 series variable frequency drives. In high-demand industrial environments — from paper mills and steel processing lines to water treatment facilities and heavy manufacturing — the ACS800 drive platform is a backbone component. When this current transducer board fails or degrades, the entire drive system is at risk of unplanned shutdown. Sourcing a verified original replacement board is the fastest, most reliable path to restoring full system operation and protecting production continuity.

At TOPNLMS, every UUD148 A02 board is sourced from authorized supply channels, inspected against ABB factory specifications, and dispatched with a 12-month quality warranty. Whether you are responding to an emergency breakdown or building a proactive spare parts inventory, this board delivers the confidence of OEM-grade reliability without the lead times of new equipment procurement. Each unit is functionally tested before shipment and packaged with anti-static protection to ensure it arrives in field-ready condition.

Critical Technical Specs

Preventive Maintenance Strategy

The 3BHE014185R0002 UUD148 A02 current transducer board sits at the heart of the ACS800 drive’s current feedback loop. When planning a scheduled maintenance window or responding to a drive fault, experienced maintenance engineers know that replacing only the failed component is rarely sufficient. A thorough inspection of the surrounding electrical circuit and control cabinet is essential to prevent repeat failures and extend system service life.

During any ACS800 drive overhaul involving the UUD148 A02 board, it is strongly recommended to simultaneously inspect and, where necessary, replace the AINT-02C or AINT-14C auxiliary interface board, which manages the communication bridge between the control board and the drive’s main inverter section. Degraded interface boards are a common secondary cause of recurring current feedback faults. Similarly, the APOW-01C power supply board should be tested under load — a marginal power supply can cause intermittent board resets that mimic transducer failures and lead to misdiagnosis.

The RDCU-02C drive control unit is another component worth evaluating during the same maintenance cycle. As the primary control processor for the ACS800, it works in close coordination with the UUD148 A02 board; any firmware mismatch or hardware degradation in the RDCU-02C can produce misleading fault diagnostics. Alongside the control electronics, inspect the du/dt output filter module and EMC filter assembly for signs of thermal stress or capacitor aging — these components protect both the drive and the connected motor from voltage spikes that accelerate board-level wear over time.

For the power section, check the AGDR series IGBT gate driver board for carbon tracking or solder joint fatigue. Gate driver failures often precede or accompany current transducer anomalies, and catching them early prevents cascading damage to the inverter bridge. The ACS800 fan assembly and cooling duct should be cleaned and tested for airflow performance; inadequate cooling is a leading cause of premature board failure in high-ambient-temperature installations. If the drive cabinet includes a NBRA-6xx series brake chopper module, verify its condition as part of the same inspection, particularly in applications with regenerative loads such as hoists, centrifuges, or winding machines.

Finally, review the condition of the fiber optic communication cables and the RMIO-11C main I/O board or RDIO-01C I/O extension module connecting the control board to remote I/O racks. Degraded fiber connections introduce latency and signal errors that can be misdiagnosed as board-level faults. Keeping a stocked spare of the RMIO-11C alongside the UUD148 A02 transducer board ensures your maintenance team can resolve the most common ACS800 failure modes within a single planned shutdown window, minimizing production impact and overtime costs.

Strategic Replacement Solutions

The ABB ACS800 platform has been deployed globally since the late 1990s and remains in active service across thousands of industrial facilities. As OEM production of legacy board variants winds down, sourcing verified original spare parts becomes increasingly critical — and increasingly difficult through standard distribution channels. The 3BHE014185R0002 UUD148 A02 is precisely the type of hard-to-source component where TOPNLMS adds direct value: we maintain stock of original boards that allow maintenance teams to avoid the costly alternative of full drive replacement.

Replacing the UUD148 A02 board rather than the entire ACS800 drive unit delivers significant cost savings — typically 85–95% of the cost of a new drive — while preserving the existing system configuration, motor tuning parameters, and control cabinet wiring. This is especially valuable in facilities where the ACS800 is integrated into a larger DCS or SCADA architecture, where a full drive replacement would require re-commissioning, parameter re-entry, and extended downtime. A direct board-level replacement restores the drive to full operation in hours rather than days, with no changes to the surrounding control system.

For facilities managing aging ACS800 fleets, we recommend a tiered spare parts strategy: maintain at least one 3BHE014185R0002 UUD148 A02 board per three to five installed drives, supplemented by a shared pool of APOW-01C power supply boards and RDCU-02C control units. This approach minimizes capital tied up in spare inventory while ensuring that the most failure-prone components are available for immediate deployment. Our technical team can assist with spare parts planning based on your installed base and maintenance history, at no additional charge.

Support FAQ

Q1: Is the 3BHE014185R0002 UUD148 A02 compatible with all ACS800 variants?
The UUD148 A02 board is designed for the ACS800 series, but compatibility depends on the specific drive rating and hardware revision. We recommend confirming your drive’s full model number and hardware version before ordering. Our technical team can assist with compatibility verification at no charge prior to purchase.

Q2: What does the 12-month warranty cover?
The warranty covers manufacturing defects and functional failures under normal operating conditions for 12 months from the shipment date. Each board is tested prior to dispatch. In the event of a warranty claim, we provide a replacement board or full refund based on the fault assessment result.

Q3: How is the board tested and verified before shipment?
Every 3BHE014185R0002 UUD148 A02 board undergoes functional verification against ABB factory specifications before packaging. Boards that do not meet specification are quarantined and not dispatched. A test report is available upon request for critical or high-availability applications.

Q4: What is the recommended spare parts lifecycle strategy for ACS800 drives?
For drives in continuous production service, we recommend replacing current transducer boards and power supply boards on a 5–7 year preventive cycle, or immediately upon detection of current feedback fault codes (e.g., ACS800 fault F-0001, F-0002 series). Maintaining one board in reserve per critical drive minimizes unplanned downtime risk and supports rapid response during off-hours breakdowns or emergency shutdowns.
