ABB 3BHE004059R0001 SDCS-CON-2 Replacement Upgrade Solution

Product Overview

ABB 3BHE004059R0001 SDCS-CON-2 Replacement Upgrade Solution: Seamless Transition for Your DC Drive System

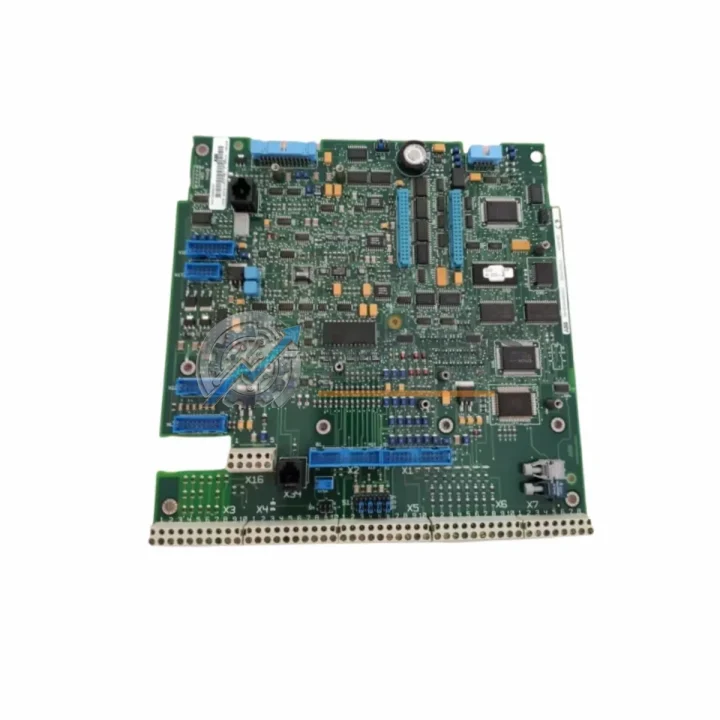

The ABB 3BHE004059R0001 SDCS-CON-2 is the core control board of ABB’s SDCS (Standalone DC Drive Control System) series, widely deployed in heavy industrial environments including steel mills, paper machines, extruders, winding systems, and large-scale motor control centers. As ABB progressively phases out legacy SDCS-series components, many facilities operating DCS-400, DCS-500, or earlier DCS-600 drive platforms are now facing the critical challenge of sourcing verified replacement boards to maintain production continuity.

TOPNLMS supplies the ABB 3BHE004059R0001 SDCS-CON-2 as a direct replacement and upgrade solution for facilities managing end-of-life DC drive systems. Each unit is sourced from verified supply channels, inspected prior to dispatch, and backed by a 12-month warranty — giving procurement engineers and maintenance teams the confidence to plan both emergency replacements and scheduled retrofit programs.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy DC drive platform to the SDCS-CON-2 rarely involves a single component swap. In practice, field engineers undertaking this retrofit will typically assess and replace several interdependent modules within the same drive cabinet or control rack.

The SDCS-POW-1 or SDCS-POW-4 power supply board is the first component to verify — the CON-2 board draws its logic supply rails directly from this unit, and a degraded power board will cause erratic behavior even with a new control board installed. Alongside this, the SDCS-PIN-11 or SDCS-PIN-21 pulse encoder interface board handles speed feedback from the motor tachometer or encoder, and must be confirmed compatible with the encoder resolution and signal type used on the existing motor shaft.

For facilities running fiber optic communication backbones, the NDCO-01 or NDCO-02 DDCS communication adapter modules are essential for integrating the SDCS-CON-2 into an existing ABB Master Follower or AC800M DCS architecture. Where PROFIBUS-DP is the plant fieldbus standard, the NPBA-12 PROFIBUS adapter provides the protocol bridge between the drive and the supervisory PLC or DCS controller.

In multi-drive systems, the SDCS-COM-8 communication board may already be present in the cabinet for coordinating drive-to-drive communication; its firmware version should be cross-checked against the CON-2 board revision to avoid handshake conflicts. Similarly, if the installation includes an ABB Panel Bus or uses an ACS800 or ACS600 series AC drive in a mixed-drive cabinet alongside the DC drive, the communication topology and grounding scheme must be reviewed to prevent interference.

On the I/O side, facilities using external SNAT-601 or SNAT-607 I/O extension modules for analog speed references, torque limits, or auxiliary digital signals should verify that the terminal wiring maps correctly to the CON-2’s I/O terminal block. Signal isolators — particularly for 4–20 mA analog loops running from a remote PLC analog output card — are recommended where cable runs exceed 10 meters or where ground potential differences exist between the drive cabinet and the control room.

Finally, for commissioning and parameter backup, a DriveWindow Light compatible programming cable (typically USB-to-serial with DDCS adapter) is required to upload the parameter set from the old board (if still readable) or to enter parameters from the original commissioning sheet. Retaining the original parameter backup file is strongly recommended before any board swap is initiated.

Retrofit Guidance FAQ

Q: Can I swap the SDCS-CON-2 directly without rewiring?
A: In most cases, the terminal block layout is preserved within the SDCS series. However, wiring harness connectors should be photographed and labeled before removal. Any wiring differences between CON-1 and CON-2 generations must be resolved using the ABB SDCS hardware manual before powering up.

Q: Do I need to re-enter all drive parameters after replacement?
A: Yes. The SDCS-CON-2 does not retain parameters from the previous board. Parameters must be re-entered via DriveWindow or the drive keypad. If the original commissioning sheet is unavailable, TOPNLMS can advise on typical parameter sets for common motor configurations.

Q: Is PROFIBUS-DP communication supported natively?
A: The SDCS-CON-2 supports DDCS fiber optic natively. PROFIBUS-DP requires the NPBA-12 adapter module installed in the drive’s option slot. Confirm the adapter firmware version matches the CON-2 board revision.

Q: Will the board fit in my existing drive cabinet without mechanical modification?
A: The SDCS-CON-2 uses the standard SDCS chassis mounting pattern. No cabinet modification is required for like-for-like replacement within the SDCS drive family. Verify DIN rail spacing if retrofitting into a third-party cabinet.

Q: What is the lead time and shipping arrangement?
A: Units are dispatched from Xiamen, China. Standard international shipping typically delivers within 5–10 business days depending on destination. Express courier options are available for emergency replacement scenarios. Contact us at [email protected] or +86 18359293191 for urgent requirements.

Warranty Assurance

Every ABB 3BHE004059R0001 SDCS-CON-2 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes a pre-shipment functional inspection to verify power rail integrity, communication interface continuity, and component condition. Units showing any signs of physical damage, counterfeit markings, or functional anomalies are rejected and not shipped.

In the event of a warranty claim, TOPNLMS provides replacement support with priority processing. Our after-sales response target is within 24 hours of claim submission. Buyers are encouraged to retain the original packaging and inspection documentation for the duration of the warranty period.

For B2B procurement teams managing planned maintenance schedules or emergency spares inventory, TOPNLMS offers volume pricing, consignment stock arrangements, and technical pre-sales consultation to ensure the correct replacement part is identified before purchase. Reach our technical sales team at [email protected] or call +86 18359293191.
