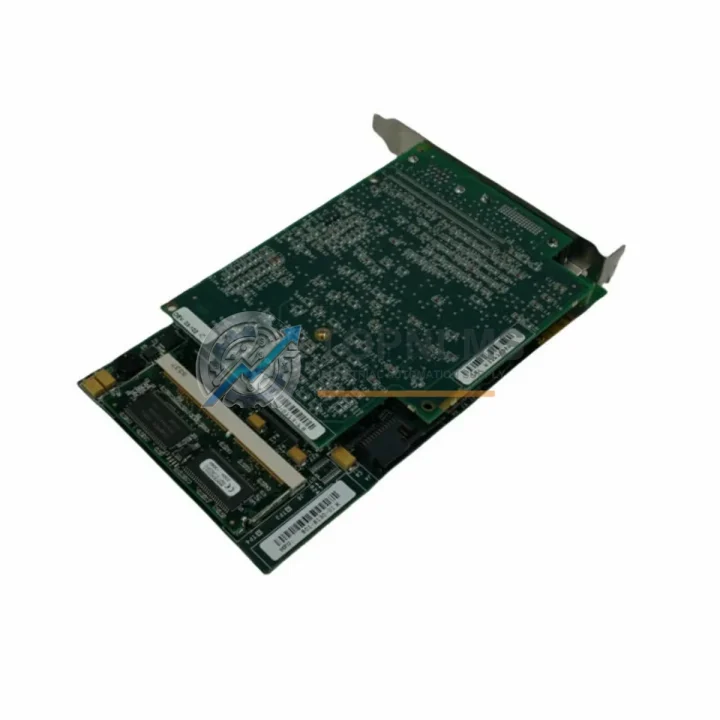

ABB 3BHB004661R0101 Ruggedized MV Drive Control Board

Product Overview

ABB 3BHB004661R0101 Ruggedized MV Drive Control Board: Industrial Resilience for Harsh Environments

The ABB 3BHB004661R0101 KUC711 AE101 is a high-performance inverter control board engineered for ABB’s ACS/ACS6000 series medium-voltage (MV) drive platforms. Designed to operate reliably in the most demanding industrial environments — including high-temperature process lines, high-humidity coastal facilities, dust-laden mining operations, and vibration-intensive heavy manufacturing floors — this control board delivers the signal integrity, thermal stability, and electromagnetic immunity that mission-critical automation systems require.

As the central intelligence of the MV drive’s control architecture, the 3BHB004661R0101 manages gate firing sequences, feedback signal processing, and fault diagnostics. Its ruggedized PCB construction, conformal coating, and industrial-grade component selection ensure continuous operation under conditions that would compromise standard commercial electronics. Whether deployed in a steel mill’s rolling line, an offshore oil platform’s variable-speed pump drive, or a municipal water treatment station’s high-power motor controller, this board maintains deterministic control performance across the full operating envelope.

Rugged Specifications Table

Comprehensive Protection Solutions

The 3BHB004661R0101 does not operate in isolation — it is the nerve center of a tightly integrated drive control system. In a fully configured ABB ACS6000 MV drive cabinet, this board works in concert with the ABB SDCS-CON-4 converter control board and the ABB RINT-5514C RDCO fiber-optic communication module to maintain synchronized gate pulse delivery across all IGCT or IGBT power modules. The DDCS fiber-optic bus eliminates ground-loop interference that would otherwise corrupt control signals in high-power switching environments.

For installations where the drive cabinet shares a control room with Siemens S7-400 PLCs or ABB AC500 PLCs, the control board’s deterministic response time ensures that speed reference updates from the PLC are executed within the drive’s control cycle without latency-induced instability. Paired with an ABB NPBA-12 PROFIBUS adapter module or an ABB NETA-21 remote monitoring tool, the 3BHB004661R0101 enables full fieldbus integration into plant-wide DCS architectures — including ABB System 800xA and Honeywell Experion PKS environments.

In high-vibration environments such as compressor stations or crusher drives, the board’s conformal coating protects against micro-fractures in solder joints that vibration cycles would otherwise induce over time. When combined with properly rated ABB SNAT 7600 TAI analog input boards and ABB SDCS-PIN-205 power interface boards, the complete control stack delivers the signal fidelity needed for precise torque control in winding, hoisting, and extrusion applications.

For facilities operating in dusty or chemically aggressive atmospheres — cement plants, fertilizer production, or offshore platforms — the board’s sealed component areas and industrial-grade capacitors resist contamination-induced leakage currents. Supplementing the drive system with ABB REF615 feeder protection relays and ABB SACE Emax2 circuit breakers on the MV supply side creates a layered protection architecture that isolates faults before they can propagate to the control board level.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the ABB 3BHB004661R0101 is commonly deployed in electric submersible pump (ESP) variable-speed drive systems and gas compressor drives where continuous uptime is non-negotiable. A single unplanned shutdown on a production platform can cost tens of thousands of dollars per hour; having a verified spare control board on-site eliminates the multi-week lead time associated with OEM procurement channels.

In mining and mineral processing, this board controls the MV drives powering SAG mills, ball mills, conveyor systems, and slurry pumps. These environments combine extreme vibration, conductive dust, and wide ambient temperature swings — conditions that accelerate component aging on inferior boards. The 3BHB004661R0101’s industrial-grade design tolerates these stresses across multi-year service intervals.

In power generation and grid infrastructure, including hydroelectric stations and thermal power plants, MV drives controlled by this board regulate boiler feed pumps, cooling water pumps, and induced draft fans. Precise speed control directly impacts plant efficiency and emissions compliance. The board’s fault diagnostic capability enables rapid identification of drive anomalies before they escalate to forced outages.

In water and wastewater treatment facilities, energy efficiency mandates drive the adoption of variable-speed pumping. The 3BHB004661R0101 enables smooth, energy-optimized flow control across wide load ranges while surviving the high-humidity, chemically aggressive atmosphere typical of treatment plant motor control centers.

In steel and metals production — rolling mills, continuous casting lines, and electric arc furnace auxiliaries — the board’s EMI immunity is critical. High-current switching transients from arc furnaces and large motor starts create electromagnetic environments that can corrupt control signals in lesser-designed boards. The 3BHB004661R0101’s shielded architecture maintains control integrity even in these extreme electromagnetic conditions.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the board fails within the warranty period due to a covered defect, TOPNLMS will provide a replacement unit or full refund. Warranty claims are processed via email to [email protected] with a fault description and order reference. Physical damage caused by incorrect installation, overvoltage events, or unauthorized modification is excluded.

Q2: How is each unit tested before shipment?
Every 3BHB004661R0101 unit undergoes a multi-stage inspection process: visual inspection for PCB damage, component-level continuity testing, and functional verification against ABB’s published electrical parameters. New units are verified against OEM packaging and date codes. Refurbished units are restored to OEM-equivalent specification and re-tested under load conditions before being cleared for shipment. A test report is available upon request.

Q3: Is this board compatible with both the ACS6000 and ACS1000 drive platforms?
The 3BHB004661R0101 (KUC711 AE101) is primarily designed for the ABB ACS6000 MV drive series. The alternate part number 3BHB004791R0101 shares the same functional architecture. Compatibility with specific drive variants depends on firmware revision and hardware configuration. TOPNLMS technical support can verify compatibility for your specific drive serial number and software version — contact [email protected] before ordering if you have any uncertainty.

Q4: Can TOPNLMS guarantee long-term supply continuity for this part?
Yes. TOPNLMS maintains dedicated inventory of high-demand ABB MV drive control boards, including the 3BHB004661R0101, to support customers with planned maintenance programs and emergency replacement needs. For customers requiring guaranteed stock reservation for scheduled shutdowns or annual maintenance contracts, we offer priority stock allocation arrangements. Contact our team to discuss volume pricing and supply agreements.
