ABB 3BHB003431R0101 KUC720 AE01 Original Industrial Spare ACS6000 Compatible

Product Overview

ABB 3BHB003431R0101 KUC720 AE01 Original Industrial Spare ACS6000 Compatible: System Stability & Industrial Spare Parts Maintenance Value

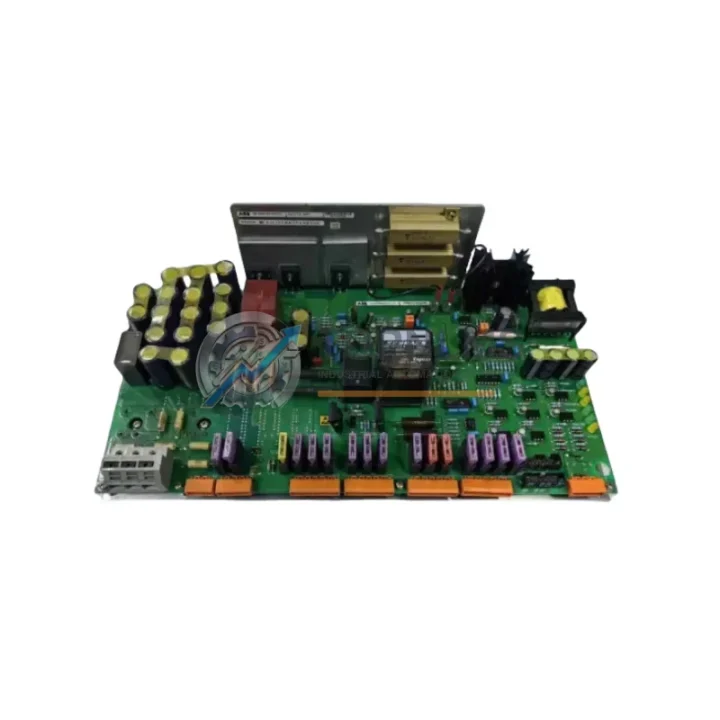

The ABB 3BHB003431R0101 KUC720 AE01 is the original Power Panel Control Board engineered specifically for the ABB ACS6000 Medium Voltage Drive series — one of the most widely deployed MV drive platforms in heavy industrial environments including steel mills, mining operations, cement plants, marine propulsion systems, and large-scale HVAC installations. This board serves as the central control intelligence of the ACS6000 drive cabinet, managing gate firing sequences, protection logic, communication with the upper-level control system, and real-time fault diagnostics. Maintaining a verified original spare of this module is not a luxury — it is a fundamental requirement of any serious industrial maintenance strategy.

When an ACS6000 drive trips unexpectedly or fails to restart after a fault, the KUC720 AE01 control board is among the first components that experienced maintenance engineers inspect. Its failure can manifest as persistent fault codes, loss of communication with the DCS or PLC, erratic speed reference tracking, or complete drive lockout. In high-throughput production environments, every hour of unplanned downtime translates directly into measurable financial loss. Having a pre-tested, ready-to-install 3BHB003431R0101 on the shelf eliminates the most dangerous variable in emergency maintenance: lead time.

Critical Technical Specs Table

Preventive Maintenance Strategy

A scheduled maintenance visit to an ACS6000 drive cabinet should never focus on a single component in isolation. The KUC720 AE01 control board operates within a tightly integrated ecosystem of hardware, and the reliability of the entire drive depends on the condition of every element in that chain. During a planned shutdown inspection, maintenance teams should simultaneously evaluate the AMC (Adaptive Motor Control) board — typically the NAMC-11 or NAMC-51 — which works in direct coordination with the KUC720 to execute motor control algorithms. A degraded AMC board can produce symptoms that are easily misattributed to the power panel control board, leading to unnecessary replacements.

The NDBU-95C DDCS branching unit and associated fiber optic cables connecting the control boards to the inverter and rectifier power modules are another critical inspection point. Fiber optic connectors in MV drive environments are susceptible to contamination and mechanical stress; a marginal fiber link can cause intermittent communication faults that destabilize the entire drive. Alongside this, the APBU-44C pulse encoder interface unit and IOEC I/O extension modules (such as the IOEC-3 and IOEC-4) should be checked for secure seating, clean terminal connections, and absence of corrosion on the backplane connectors.

Power supply integrity is equally important. The APOW-01C auxiliary power supply module within the ACS6000 cabinet provides the low-voltage DC rails that feed the control electronics including the KUC720 board. A power supply with aging electrolytic capacitors or marginal output regulation will cause erratic control board behavior long before it fails outright. Proactive replacement of the APOW-01C during a major overhaul — rather than waiting for a failure — is a cost-effective strategy that protects the far more expensive control board investment.

For facilities running multiple ACS6000 units, it is also advisable to maintain a small buffer stock of gate driver boards (such as the AGDR series) and snubber capacitor assemblies for the IGCT power modules. These components are subject to thermal cycling stress and have a finite service life in high-duty-cycle applications. Pairing a KUC720 AE01 spare with a set of gate driver boards and a replacement APOW-01C in your maintenance inventory creates a comprehensive emergency kit capable of addressing the majority of ACS6000 control-side failures without waiting for international shipments.

Terminal blocks, 24VDC relay modules, and signal isolation barriers in the control wiring harness should also be inspected during any KUC720-related maintenance event. Loose or corroded terminals in the low-voltage control circuit can introduce ground loops or signal noise that the control board interprets as sensor faults, triggering nuisance trips. Replacing worn terminal blocks and verifying cable shield grounding at this stage adds minimal time to the maintenance window but significantly reduces the risk of repeat faults after the drive is returned to service.

Strategic Replacement Solutions

The ABB ACS6000 platform was introduced in the late 1990s and has been continuously deployed in critical infrastructure worldwide. Many installations now operate drives that are 15–25 years old, and the original control boards in these units are approaching or have exceeded their design service life. ABB’s official end-of-life and limited-availability notices for certain ACS6000 sub-components have made sourcing original spare parts increasingly challenging through standard distribution channels.

The 3BHB003431R0101 KUC720 AE01 available through TOPNLMS is sourced from verified industrial supply channels and undergoes functional testing prior to shipment. It is a direct form-fit-function replacement for the original board installed in ACS6000 power modules, requiring no firmware modification, no parameter re-entry beyond standard drive commissioning steps, and no mechanical adaptation. This means maintenance teams can execute a board swap during a planned or emergency shutdown window and return the drive to full operation within the same maintenance shift — preserving the original system architecture, retaining all existing parameter sets (backed up via DriveWindow or equivalent), and avoiding the cost and complexity of a full drive replacement.

For facilities managing legacy ACS6000 fleets, a strategic approach involves auditing all installed KUC720 boards by serial number and firmware revision, identifying units with elevated fault history, and scheduling proactive replacement during the next planned outage. This approach converts unpredictable emergency failures into controlled, budgeted maintenance events — reducing total maintenance cost over the asset lifecycle while improving overall system availability metrics.

Support FAQ

Q1: Is this a genuine original ABB 3BHB003431R0101 KUC720 AE01, or a third-party compatible replacement?
This is an original ABB part sourced through verified industrial supply channels. It is not a third-party clone or aftermarket compatible. The board carries the original ABB part markings and is suitable for direct installation in ACS6000 drive cabinets without modification.

Q2: What pre-shipment testing is performed on this board?
Each unit undergoes functional verification testing before dispatch. This includes power-on checks, communication interface verification, and visual inspection for component integrity. A test report is available upon request for quality-critical procurement processes.

Q3: What does the 12-month warranty cover, and how is a warranty claim handled?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. In the event of a warranty claim, contact us at [email protected] with the order reference and a description of the fault. We will arrange for inspection and replacement or repair at no additional cost.

Q4: Can this board be used as a direct drop-in replacement without re-commissioning the drive?
In most cases, yes — provided the replacement board carries the same firmware revision as the original. We recommend backing up all drive parameters via ABB DriveWindow or the ACS6000 local panel before performing the swap. If a firmware update is required, this can typically be performed on-site using standard ABB commissioning tools. Contact our technical team for guidance specific to your drive serial number and installed firmware version.
